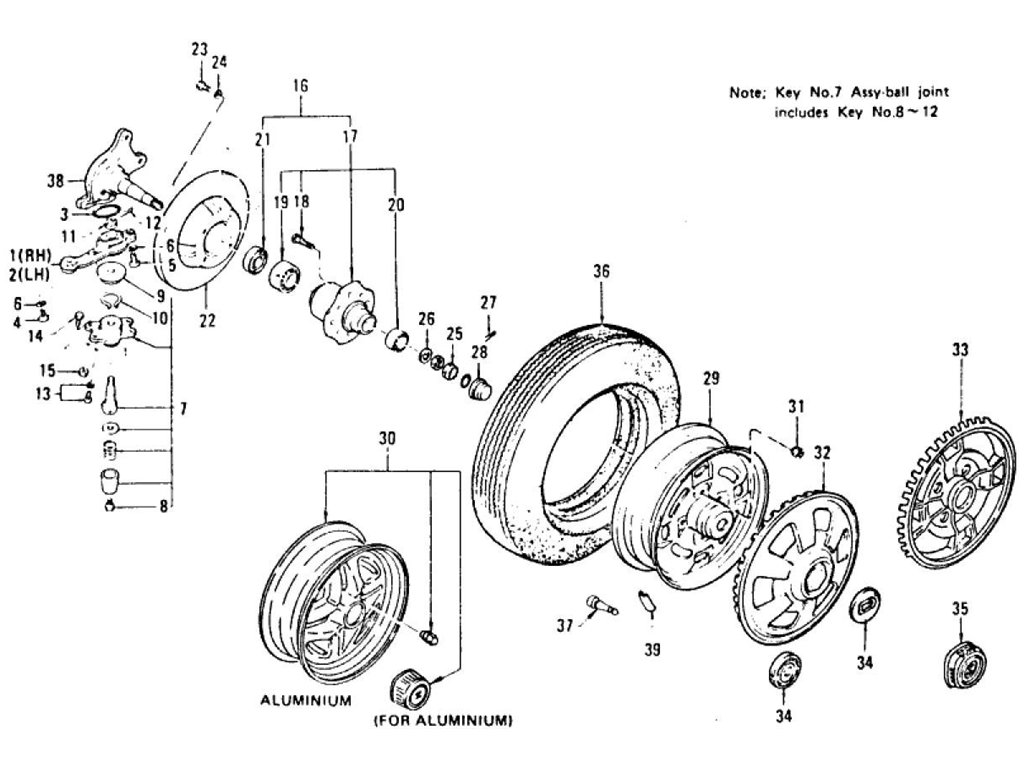

Front Axle (Knuckle Arm, Road Wheel & Tire)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | partNumber | ARM-KNICKLE RH R=115 | |||||||
| 1 | partNumber | 40052-E4101 | 7006 | 1 | |||||
| 1 | ARM-KNUCKLE RH | 40052-E4102 | 7007 | 1 | 40052-E4101 | ||||
| 1 | ARM-KNUCKLE RH | ARM-KNUCKLE RH R=105 | |||||||
| 1 | ARM-KNUCKLE RH | 40052-E4201 | OP | 7006 | 1 | ||||
| 1 | ARM-KNUCKLE RH | 40052-E4202 | OP | 7007 | 7307 | 1 | 40052-E4201 | ||
| 2 | ARM-KNUCKLE LH | 40053-E4102 | 7007 | 1 | 40053-E4101 | ||||
| 2 | ARM-KNUCKLE LH | ARM-KNUCKLE LH R=105 | |||||||
| 2 | ARM-KNUCKLE LH | 40053-E4201 | OP | 7006 | 1 | ||||
| 2 | ARM-KNUCKLE LH | 40053-E4202 | OP | 7007 | 7307 | 1 | 40053-E4201 | ||
| 2 | ARM-KNUCKLE LH | ARM-KNUCKLE LH R=115 | |||||||
| 2 | ARM-KNUCKLE LH | 40053-E4101 | 7006 | 1 | |||||
| 3 | RING-"O" KNUCKLE ARM | 40054-E4100 | 2 | ||||||
| 4 | BOLT-FIX KNUCKLE ARM | 40056-21001 | 2 | ||||||
| 5 | BOLT-FIX KNUCKLE ARM | 40057-21001 | 2 | ||||||
| 6 | WASHER-LOCK M12 | 08915-24210 | 4 | ||||||
| 7 | ASSY-BALL JOINT | 40160-A8600 | 7007 | 7505 | 2 | 40160-78500 | |||
| 7 | ASSY-BALL JOINT | 40160-A8610 | 7506 | 2 | Yes | Yes | 40160-A8600 | ||
| 7 | ASSY-BALL JOINT LOWE | 40160-78500 | 7006 | 2 | |||||
| 8 | PLUG-FILLER | 40189-73000 | 2 | ||||||
| 9 | COVER-DUST LOWER BAL | 40192-21000 | 7006 | 2 | |||||
| 9 | COVER-DUST LOWER BAL | 40192-A8600 | 7007 | 2 | No | No | 40192-21000 | ||
| 10 | CLAMP-DUST LOWER BAL | 40196-21000 | 7505 | 2 | |||||
| 10 | CLAMP-DUST LOWER BAL | 40196-U7000 | 7506 | 2 | No | No | 40196-21000 | ||
| 11 | NUT-HEX SLOTTED | 40179-A8600 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 08911-04210 | |
| 11 | NUT-HEX SLOTTED M12X | 08911-04210 | 7307 | 2 | |||||
| 12 | PIN-COTTER 3.2X20 | 08921-32010 | 2 | ||||||
| 13 | BOLT-HEX WITH WASHER | 08130-82062 | 7307 | 4 | |||||
| 13 | BOLT-HEX WITH WASHER | 08130-82065 | 2 SEATER 2+2 SEAT ER | 7308 | 4 | No | No | 08130-82062 | |
| 14 | BOLT-HEX M10X1.25X45 | 08134-04510 | 7307 | 4 | |||||
| 15 | NUT-HEX M10X1.25 | 08912-44010 | 7307 | 4 | |||||
| 16 | HUB-KIT ROAD WHEEL F | 40202-N3426 | 7308 | 1 | |||||
| 17 | ASSY-HUB ROAD WHEEL | 40202-E4100 | 7307 | 2 | |||||
| 17 | ASSY-HUB ROAD WHEEL | 40202-E4125 | 7307 | 2 | Yes | Yes | 40202-E4100 | ||
| 17 | ASSY-HUB ROAD WHEEL | 40202-N3400 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 40202-E4125 | |
| 18 | BOLT-HUB ROAD WHEEL | 40222-22001 | 8 | ||||||
| 19 | BEARING-FRONT WHEEL | 40210-A0100 | 2 | ||||||
| 20 | ASSY-BEARING FRONT W | 40215-A0100 | 2 | ||||||
| 21 | SEAL-OIL | 40232-A0101 | 1 | ||||||
| 22 | ROTER-DISC BRAKE FRO | 40206-E4100 | 2 | ||||||
| 22 | ROTER-DISC BRAKE FRO | 40206-E4101 | 7307 | 2 | Yes | Yes | 40206-E4100 | ||
| 22 | ROTER-DISC BRAKE FRO | 40206-N3100 | 7308 | 2 | No | No | 40206-E4101 | ||
| 23 | BOLT-FIX ROTOR | 40209-22000 | 8 | ||||||
| 24 | WASHER-LOCK M10 | 08915-14010 | 8 | ||||||
| 25 | NUT-LOCK FRONT WHEEL | 40262-A0100 | 7307 | 2 | |||||
| 25 | NUT-LOCK FRONT WHEEL | 40262-S0400 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 40262-A0100 | |
| 26 | WASHER-FRONT WHEEL B | 40264-A0100 | 2 | ||||||
| 26 | WASHER-FRONT WHEEL B | 40264-E4100 | 2 | Yes | Yes | 40264-A0100 | |||
| 27 | PIN-COTTER | 00921-43510 | 2 | ||||||
| 28 | ASSY-CAP HUB FRONT W | 40234-S0400 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | No | No | 40234-E4100 | |
| 28 | CAP-HUB FRONT WHEEL | 40234-E4100 | 7307 | 2 | |||||
| 29 | ASSY-ROAD WHEEL 4-1/ | 40300-E4100 | 2 | ||||||
| 29 | ASSY-ROAD WHEEL 5-JX | 40300-E4400 | 7408 | 2 | |||||
| 29 | ASSY-ROAD WHEEL 5-JX | 40300-N3100 | 7409 | 2 | 40300-E4400 | ||||
| 30 | ASSY-ROAD WHEEL 5-1/ | 40300-N3200 | OP | 7308 | 2 | ||||
| 30 | SET-ROAD WHEEL 5-1/2 | 40300-N3225 | OP | 2 | |||||
| 30 | SET-ROAD WHEEL 5-1/2 | 40300-N3227 | OP | 2 | Yes | Yes | 40300-N3225 | ||
| 31 | NUT-ROAD WHEEL | 40224-21001 | 8 | ||||||
| 31 | NUT-ROAD WHEEL (FOR | 40224-A0200 | 7608 | 8 | |||||
| 31 | NUT-ROAD WHEEL (FOR | 40224-N3200 | OP | 8 | |||||
| 31 | NUT-ROAD WHEEL (FOR | 40224-R4670 | OP | 8 | Yes | Yes | 40224-N3200 | ||
| 32 | ASSY-COVER ROAD WHEE | 40315-E4100 | 7307 | 2 | |||||
| 32 | ASSY-COVER ROAD WHEE | 40315-E4101 | 7307 | 2 | Yes | Yes | 40315-E4100 | ||
| 32 | ASSY-COVER ROAD WHEE | 40315-E8800 | 7408 | 2 | |||||
| 32 | ASSY-COVER ROAD WHEE | 40315-N3100 | 7409 | 2 | 40315-E8800 | ||||
| 32 | ASSY-COVER ROAD WHEE | 40315-E8800 | 2 SEATER 2+2 SEAT ER | 7308 | 7408 | 2 | |||
| 33 | ASSY-COVER ROAD WHEE | 40315-N4700 | OP | 7608 | 2 | ||||
| 34 | ORNAMENT-WHEEL COVER | 40343-E4100 | 7307 | 2 | |||||
| 34 | ORNAMENT-WHEEL COVER | 40343-E8800 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | ||||
| 35 | ORNAMENT-ROAD WHEEL | 40343-N3200 | OP | 2 | |||||
| 35 | ORNAMENT-ROAD WHEEL | 40343-N4700 | OP | 7608 | 2 | ||||
| 36 | TIRE-175-HR-14 | 40312-E4645 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | ||||
| 36 | TIRE-175-SR-14 TUBE | 40312-E4643 | 2 | ||||||
| 36 | TIRE-195-70-HR-14 TU | 40312-N4240 | OP | 7608 | 2 | ||||
| 36 | TIRE-195-70-HR-14 WI | 40310-N4140 | OP | 7607 | 2 | ||||
| 37 | VALVE-AIR (FOR TUBE | 40311-H1000 | 2 | ||||||
| 38 | SPINDLE-KNUCKLE LH | 40015-E4100 | 7307 | 1 | |||||
| 38 | SPINDLE-KNUCKLE LH | 40015-N3400 | 2 SEATER | 7308 | 1 | No | No | 40015-E4100 | |
| 38 | SPINDLE-KNUCKLE LH | 40015-N3700 | 2+2 SEATER | 7310 | 1 | ||||
| 38 | SPINDLE-KNUCKLE RH | 40014-E4100 | 7307 | 1 | |||||
| 38 | SPINDLE-KNUCKLE RH | 40014-N3400 | 2 SEATER | 7308 | 1 | No | No | 40014-E4100 | |
| 38 | SPINDLE-KNUCKLE RH | 40014-N3700 | 2+2 SEATER | 7310 | 1 | ||||
| 39 | WEIGHT-BALANCE ROAD | 40321-32200 | 7307 | 0 | |||||
| 39 | WEIGHT-BALANCE ROAD | 40322-32200 | 0 | ||||||
| 39 | WEIGHT-BALANCE ROAD | 40323-32200 | 7307 | 0 | |||||
| 39 | WEIGHT-BALANCE ROAD | 40324-32200 | 7307 | 0 | |||||
| 39 | WEIGHT-BALANCE ROAD | 40325-32200 | 7307 | 0 | |||||
| 39 | WEIGHT-BALANCE ROAD | 40326-32200 | 7307 | 0 | |||||
| 39 | WEIGHT-BALANCE ROAD | 40327-32200 | 0 | ||||||
| 39 | WEIGHT-BALANCE ROAD | 40328-32200 | 0 | ||||||
| 39 | WEIGHT-BALANCE ROAD | 40329-32200 | 0 |
