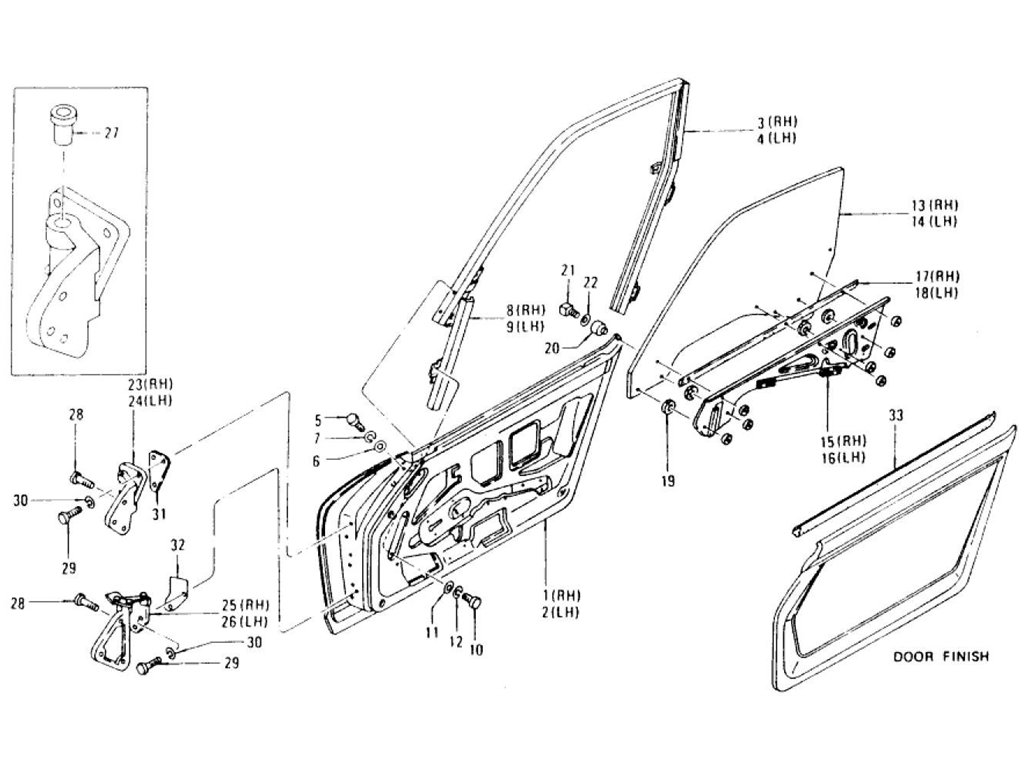

Door Panel, Glass & Hinge (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-PANEL DOOR RH | 80100-E4100 | 7109 | 1 | |||||
| 1 | ASSY-PANEL DOOR RH | 80100-E4125 | 7110 | 7206 | 1 | 80100-E4100 | |||
| 1 | ASSY-PANEL DOOR RH | 80100-N3025 | 7207 | 1 | Yes | Yes | 80100-E4125 | ||
| 1 | ASSY-PANEL DOOR RH | 80100-N3325 | 7212 | 1 | Yes | Yes | 80100-N3025 | ||
| 2 | ASSY-PANEL DOOR LH | 80101-E4100 | 7109 | 1 | |||||
| 2 | ASSY-PANEL DOOR LH | 80101-E4125 | 7110 | 7206 | 1 | 80101-E4100 | |||
| 2 | ASSY-PANEL DOOR LH | 80101-N3025 | 7207 | 1 | Yes | Yes | 80101-E4125 | ||
| 2 | ASSY-PANEL DOOR LH | 80101-N3325 | 7212 | 1 | Yes | Yes | 80101-N3025 | ||
| 3 | ASSY-SASH DOOR RH | 80200-E4100 | 1 | ||||||
| 4 | ASSY-SASH DOOR LH | 80201-E4100 | 1 | ||||||
| 5 | BOLT-HEXAGON M6X1.0 | 08110-61010 | 16 | ||||||
| 6 | WASHER-PLAIN M6 | 08915-43610 | 16 | ||||||
| 7 | WASHER-SPRING M6 | 08915-13610 | 16 | ||||||
| 8 | ASSY-SASH DOOR FRONT | 80210-E4100 | 7307 | 1 | |||||
| 8 | ASSY-SASH DOOR FRONT | 80210-N3400 | 7308 | 1 | No | No | 80210-E4100 | ||
| 9 | ASSY-SASH DOOR FRONT | 80211-E4100 | 7307 | 1 | |||||
| 9 | ASSY-SASH DOOR FRONT | 80211-N3400 | 7308 | 1 | No | No | 80211-E4100 | ||
| 10 | SCREW-MACHINE M6X1.0 | 08310-61010 | 4 | ||||||
| 10 | SCREW-MACHINE M6X1.0 | 08310-61012 | 4 | Yes | Yes | 08310-61010 | |||
| 11 | WASHER-PLAIN M6 | 08915-43610 | 4 | ||||||
| 12 | WASHER-SPRING M6 | 08915-13610 | 4 | ||||||
| 13 | GLASS-DOOR WINDOW RH | 80311-E4100 | 1 | ||||||
| 13 | GLASS-DOOR WINDOW RH | 80311-E4101 | 1 | Yes | Yes | 80311-E4100 | |||
| 14 | GLASS-DOOR WINDOW LH | 80312-E4100 | 1 | ||||||
| 14 | GLASS-DOOR WINDOW LH | 80312-E4101 | 1 | Yes | Yes | 80312-E4100 | |||
| 15 | ASSY-GLASS DOOR BOTT | 80302-E4100 | 1 | ||||||
| 16 | ASSY-GLASS DOOR BOTT | 80303-E4100 | 1 | ||||||
| 17 | RUBBER-GLAZING DOOR | 80315-E4100 | 1 | ||||||
| 18 | RUBBER-GLAZING DOOR | 80316-E4100 | 1 | ||||||
| 19 | PACKING-GLASS DOOR W | 80317-E4100 | 8 | ||||||
| 20 | FASTENER-GLASS DOOR | 80318-E4100 | 14 | ||||||
| 21 | BOLT-SQUARE M5 | 08360-51610 | 14 | ||||||
| 21 | BOLT-SQUARE M5 | 08360-51612 | 14 | Yes | Yes | 08360-51610 | |||
| 22 | WASHER-SPECIAL | 96830-A0800 | 14 | ||||||
| 23 | ASSY-HINGE DOOR UPPE | 80400-E4100 | 7206 | 1 | |||||
| 23 | ASSY-HINGE DOOR UPPE | 80400-N3000 | 7207 | 1 | No | No | 80400-E4100 | ||
| 24 | ASSY-HINGE DOOR UPPE | 80401-E4100 | 7206 | 1 | |||||
| 24 | ASSY-HINGE DOOR UPPE | 80401-N3000 | 7207 | 1 | No | No | 80401-E4100 | ||
| 25 | ASSY-HINGE DOOR LOWE | 80420-E4100 | 1 | ||||||
| 25 | ASSY-HINGE DOOR LOWE | 80420-E8200 | 1 | Yes | Yes | 80420-E4100 | |||
| 26 | ASSY-HINGE DOOR LOWE | 80421-E4100 | 1 | ||||||
| 26 | ASSY-HINGE DOOR LOWE | 80421-E8200 | 1 | Yes | Yes | 80421-E4100 | |||
| 27 | BUSH-DOOR HINGE | H0400-E4101 | 8 | ||||||
| 28 | BOLT-SPECIAL M8X1.25 | 77720-89910 | 5 | ||||||
| 29 | BOLT-HEX POINTED HEA | 08140-82010 | 5 | ||||||
| 30 | SPRING-LCOK WASHER M | 08915-13810 | 5 | ||||||
| 31 | SHIM-DOOR HINGE UPPE | 80405-E4100 | 2 | ||||||
| 31 | SHIM-DOOR HINGE UPPE | 80406-E4100 | 2 | ||||||
| 32 | SHIM-DOOR HINGE LOWE | 80425-E4100 | 2 | ||||||
| 32 | SHIM-DOOR HINGE LOWE | 80426-E4100 | 2 | ||||||
| 33 | WEATHERSTRIP-DOOR RH | 80845-E4100 | 1 | ||||||
| 33 | WEATHERSTRIP-DOOR RH | 80846-E4100 | 1 |
