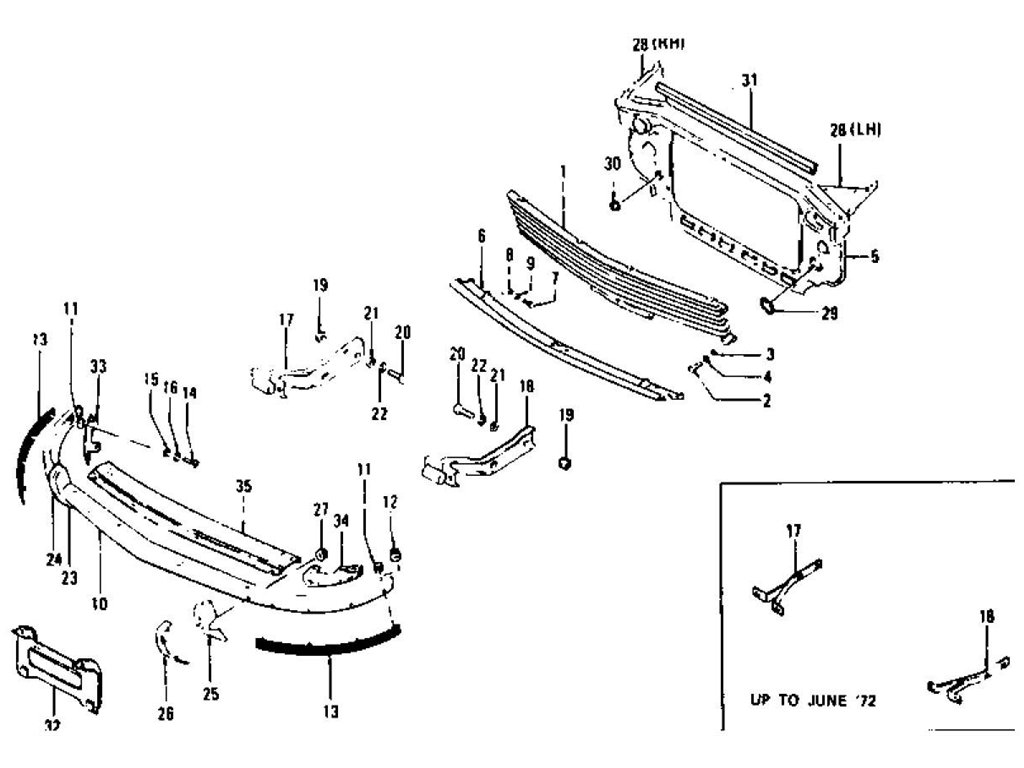

Radiator Grille, Front Bumper & Over Rider (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-GRILLE RADIATOR | 62300-E4600 | 1 | ||||||
| 1 | ASSY-GRILLE RADIATOR | 62300-E4601 | 7206 | 1 | Yes | Yes | 62300-E4600 | ||
| 1 | ASSY-GRILLE RADIATOR | 62300-N3300 | 7207 | 1 | No | No | 62300-E4601 | ||
| 1 | ASSY-GRILLE RADIATOR | 62300-N3301 | 7207 | 1 | Yes | Yes | 62300-N3300 | ||
| 2 | SCREW-MACHINE | 08310-51012 | 5 | ||||||
| 3 | WASHER-PLAIN | 08915-43510 | 5 | ||||||
| 4 | WASHER-SPRING | 08915-13510 | 5 | ||||||
| 5 | ASSY-RADIATOR CORE S | 62500-E4100 | 7209 | 1 | |||||
| 5 | ASSY-RADIATOR CORE S | 62500-N3000 | 7210 | 7202 | 1 | Yes | Yes | 62500-E4100 | |
| 5 | ASSY-RADIATOR CORE S | 62500-N3400 | 7303 | 1 | Yes | Yes | 62500-N3000 | ||
| 6 | ASSY-PANEL FRONT APR | 62600-E4100 | 7206 | 1 | |||||
| 6 | ASSY-PANEL FRONT APR | 62600-N3301 | 1 | Yes | Yes | 62600-N3300 | |||
| 6 | ASSY-PANEL FRONT APR | 62600-N4210 | 1 | Yes | Yes | 62600-N3301 | |||
| 6 | ASSY-PANEL FRONT APR | F2600-E4100 | 7206 | 1 | Yes | Yes | 62600-E4100 | ||
| 6 | ASSY-PANEL FRONT APR | 62600-N3300 | 7207 | 1 | No | No | 62600-E4100 | ||
| 7 | BOLT-HEX M6 | 08310-61410 | 3 | ||||||
| 7 | BOLT-HEX M6 | 08310-61412 | 3 | Yes | Yes | 08310-61410 | |||
| 8 | WASHER-PRAIN | 08915-53610 | 3 | ||||||
| 9 | WASHER-LOCK | 08915-13610 | 3 | ||||||
| 10 | ASST-FRONT BUMPER | 62650-E4101 | 7005 | 1 | |||||
| 10 | ASSY-FRONT BUMPER | 62650-N3300 | USA | 7207 | 1 | No | No | 62650-E4103 | |
| 10 | ASSY-FRONT BUMPER (L | 62650-E4103 | 7006 | 1 | No | No | 62650-E4101 | ||
| 10 | ASSY-FRONT BUMPER (W | 62650-E4102 | OP | 7006 | 1 | No | No | 62650-E4100 | |
| 11 | SHIM-FRONT BUMPER SI | 62668-E4101 | 2 | ||||||
| 12 | NUT-FLANGE MS | 01221-00023 | 8 | ||||||
| 13 | RUBBER-BIMPER FRONT | 62690-E4100 | 2 | ||||||
| 13 | RUBBER-BIMPER FRONT | 62690-N3300 | 7207 | 2 | No | No | 62690-E4100 | ||
| 14 | SCREW-MACHINE | 01121-00033 | 2 | ||||||
| 14 | SCREW-MACHINE | 08110-61210 | 2 | ||||||
| 15 | WASHER-PLAIN | 08915-43610 | 2 | ||||||
| 16 | WASHER-SPRING | 08915-13610 | 2 | ||||||
| 17 | ASSY-STAY FRONT BUMP | 62656-E4100 | 1 | ||||||
| 17 | ASSY-STAY FRONT BUMP | 62656-E4101 | 7005 | 1 | Yes | Yes | 62656-E4100 | ||
| 17 | ASSY-STAY FRONT BUMP | 62656-E4102 | 7006 | 1 | Yes | Yes | 62656-E4101 | ||
| 17 | ASSY-STAY FRONT BUMP | 62652-N3300 | 7207 | 1 | No | No | 62656-E4102 | ||
| 18 | ASSY-STAY FRONT BUMP | 62657-E4100 | 1 | ||||||
| 18 | ASSY-STAY FRONT BUMP | 62657-E4101 | 7005 | 1 | |||||
| 18 | ASSY-STAY FRONT BUMP | 62657-E4102 | 7006 | 1 | No | No | 62657-E4101 | ||
| 18 | ASSY-STAY FRONT BUMP | 62653-N3300 | 7207 | 1 | No | No | 62657-E4102 | ||
| 19 | NUT-FLANGE M10 | 01221-00053 | 4 | ||||||
| 20 | BOLT-HEX | 08114-02010 | 4 | ||||||
| 21 | WASHER-PLAIN | 08915-44010 | 4 | ||||||
| 22 | WASHER-SPRING | 08915-14010 | 4 | ||||||
| 23 | ASSY-OVERRIDER BUMPE | 62663-E4600 | 1 | ||||||
| 23 | ASSY-OVERRIDER BUMPE | 62663-N3300 | 7207 | 1 | No | No | 62663-E4600 | ||
| 24 | RUBBER-OVERRIDER BUM | 62678-N3300 | 7207 | 1 | No | No | 62688-E4600 | ||
| 24 | RUBBER-OVERRIDER BUM | 62688-E4600 | OP | 1 | |||||
| 25 | ASSY-OVERRIDER BUMPE | 62664-E4600 | 1 | ||||||
| 25 | ASSY-OVERRIDER BUMPE | 62664-N3300 | 7207 | 1 | No | No | 62664-E4600 | ||
| 26 | RUBBER-OVERRIDER BUM | 62679-N3300 | 7207 | 1 | No | No | 62689-E4600 | ||
| 26 | RUBBER-OVERRIDER BUM | 62689-E4600 | OP | 1 | |||||
| 27 | NUT-FLANGE M10 | 01221-00053 | 2 | ||||||
| 28 | GUSSET-HOOD LEDGE FR | 64172-E4100 | 1 | ||||||
| 28 | GUSSET-HOOD LEDGE FR | 64173-E4100 | 1 | ||||||
| 29 | RUBBER-FLANGE COVER | 62807-N3000 | 7207 | 1 | |||||
| 30 | RUBBER-FLANGE COVER | 62808-N3000 | 7207 | 1 | |||||
| 31 | RUBBER-HEAT INSULATO | 62812-N3001 | 7207 | 1 | |||||
| 32 | ASSY-BRKT LICENCE PLATE | 62740-N3301 | CANADA | 7207 | 1 | ||||
| 33 | ASSY-PACKING FRONT B | 62694-N3300 | 7207 | 1 | |||||
| 34 | ASSY-PACKING FRONT B | 62695-N3300 | 7207 | 1 | |||||
| 35 | EXTENSION-FRONT BUMP | 62669-N3300 | 7207 | 1 |
