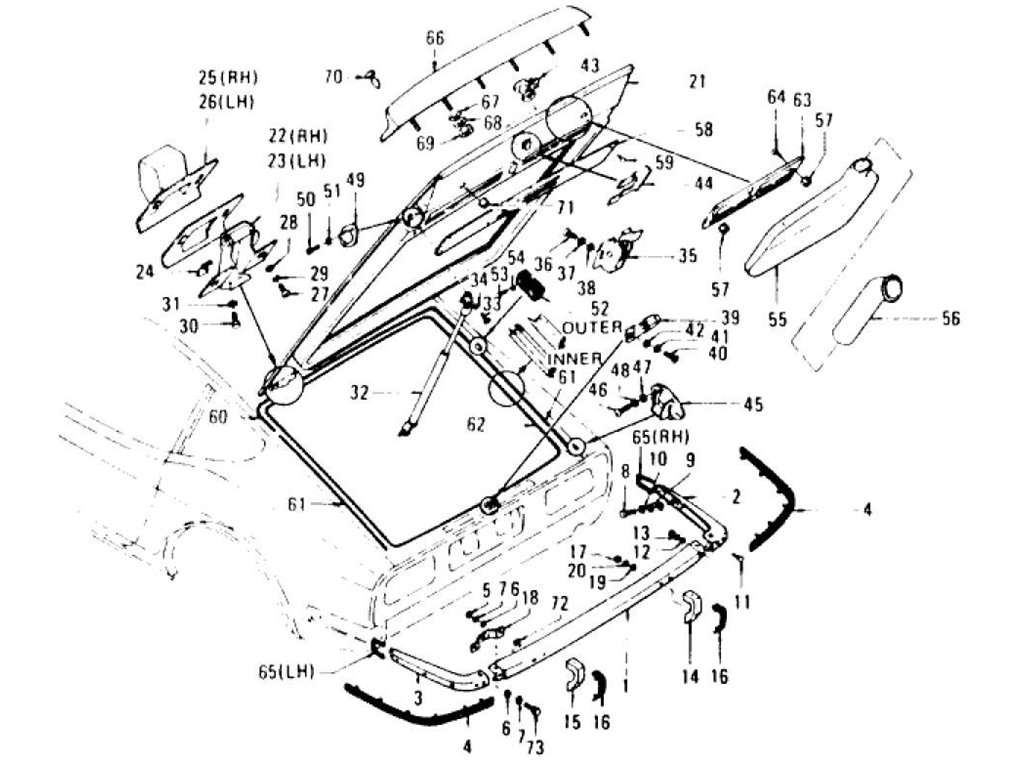

Tail Gate Panel, Trim, Lock & Rear Bumper (To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BUMPER-ARM CENTER(DE | 85002-E4126 | 1 | ||||||
| 1 | BUMPER-REAR CENTER | 85002-N3300 | 7207 | 1 | Yes | Yes | 85002-E4126 | ||
| 1 | BUMPER-REAR CENTER ( | 85002-E4125 | 1 | ||||||
| 2 | BUMPER-REAR SIDE RH | 85003-E4125 | 1 | ||||||
| 2 | BUMPER-REAR SIDE RH( | 85003-E4126 | 1 | ||||||
| 3 | BUMPER-REAR SIDE LH | 85004-E4125 | 1 | ||||||
| 3 | BUMPER-REAR SIDE LH | 85004-E4126 | 1 | ||||||
| 4 | RUBBER-REAR BUMPER S | 85007-E4100 | 2 | ||||||
| 4 | RUBBER-REAR BUMPER S | 85007-N3300 | 7207 | 2 | No | No | 85007-E4100 | ||
| 5 | NUT-HEX | 08911-14010 | 4 | ||||||
| 6 | WASHER-PLAIN | 08915-44010 | 8 | ||||||
| 7 | WASHER-LOCK | 08915-14010 | 8 | ||||||
| 8 | BOLT-HEX | 08114-02010 | 2 | ||||||
| 9 | WASHER-PLAIN | 08915-44010 | 2 | ||||||
| 10 | WASHER-LOCK | 08915-14010 | 2 | ||||||
| 11 | BOLT-SPECIAL | 62663-18000 | 4 | ||||||
| 12 | WASHER-PLAIN | 00915-51510 | 4 | ||||||
| 13 | WASHER-LOCK | 00911-11410 | 4 | ||||||
| 14 | ASSY-OVER RIDER BUMP | 85050-E4600 | 1 | ||||||
| 14 | ASSY-OVER RIDER BUMP | 85050-N3300 | 7207 | 1 | No | No | 85050-E4600 | ||
| 15 | ASSY-OVER RIDER BUMP | 85051-E4600 | 1 | ||||||
| 15 | ASSY-OVER RIDER BUMP | 85051-N3300 | 7207 | 1 | No | No | 85051-E4600 | ||
| 16 | RUBBER-OVER RIDER BU | 85056-E4600 | 2 | ||||||
| 16 | RUBBER-OVER RIDER BU | 85056-N3300 | 7207 | 1 | No | No | 85056-E4600 | ||
| 16 | RUBBER-OVER RIDER BU | 85057-N3300 | 7207 | 1 | No | No | 85056-E4600 | ||
| 17 | NUT-HEX | 08911-14010 | 2 | ||||||
| 18 | BRACKET-REAR BUMPER | 85012-E4101 | 2 | ||||||
| 18 | BRACKET-REAR BUMPER | 85012-N3300 | 7207 | 2 | No | No | 85012-E4101 | ||
| 19 | WASHER-PLAIN | 08915-44010 | 2 | ||||||
| 20 | WASHER-LOCK | 08915-14010 | 2 | ||||||
| 21 | ASSY-PANEL TAIL GATE | 90101-E4100 | 1 | ||||||
| 21 | ASSY-PANEL TAIL GATE | 90101-E4600 | 7012 | 1 | Yes | Yes | 90101-E4100 | ||
| 21 | ASSY-PANEL TAIL GATE | 90101-E8300 | 7101 | 1 | No | No | 90101-E4600 | ||
| 22 | ASSY-TAIL GATE HINGE | 90400-E4100 | 1 | ||||||
| 23 | ASSY-TAIL GATE HINGE | 90401-E4100 | 1 | ||||||
| 24 | SHIM-ADJUSTING TAIL | 90407-E4100 | 4 | ||||||
| 25 | SEAL-COVER HINGE TAI | 90410-E4101 | 7301 | 1 | |||||
| 25 | SEAL-COVER HINGE TAI | 90410-N3000 | 7302 | 1 | No | No | 90410-E4101 | ||
| 26 | SEAL-COVER HING TAIL | 90411-N3000 | 7302 | 1 | No | No | 90411-E4101 | ||
| 26 | SEAL-COVER HINGE TRA | 90411-E4101 | 7301 | 1 | |||||
| 27 | SCREW-MACHINE M8 | 08460-83012 | 4 | ||||||
| 28 | WASHER-PLAIN M8 | 08915-43810 | 4 | ||||||
| 29 | WASHER-SPRING M8 | 08915-13810 | 4 | ||||||
| 30 | SCREW-MACHINE M8 | 08320-81212 | 4 | ||||||
| 31 | WASHER-TOOTH M8 | 08916-43810 | 4 | ||||||
| 32 | SET-TAIL GATE STAY | 90420-E4100 | 1 | ||||||
| 32 | SET-TAIL GATE STAY | 90420-E4600 | 1 | Yes | Yes | 90420-E4100 | |||
| 32 | SET-TAIL GATE STAY | 90420-E4650 | 1 | Yes | Yes | 90420-E4600 | |||
| 32 | SET-TAIL GATE STAY | 90420-E8250 | 1 | Yes | Yes | 90420-E4650 | |||
| 32 | SET-TAIL GATE STAY | 90420-E8750 | 7108 | 1 | Yes | Yes | 90420-E8250 | ||
| 33 | SCREW-MACHINE | 08330-61610 | 4 | ||||||
| 34 | WASHER-LOCK SUNK TOO | 08916-43610 | 4 | ||||||
| 35 | ASSY-TAIL GATE LOCK | 90502-E4100 | 7005 | 1 | |||||
| 35 | ASSY-TAIL GATE LOCK | 90502-E4101 | 7006 | 1 | No | No | 90502-E4100 | ||
| 36 | SCREW-MACHINE M6 | 08360-61410 | 2 | ||||||
| 36 | SCREW-MACHINE M6 | 08360-61412 | 2 | Yes | Yes | 08360-61410 | |||
| 37 | WASHER-SPRING M6 | 08915-13610 | 2 | ||||||
| 38 | WASHER-PLAIN M6 | 08915-43610 | 2 | ||||||
| 39 | ASSY-STRIKER TAIL GA | 90805-E4100 | 1 | ||||||
| 40 | SCREW-MACHINE M6 | 08360-61410 | 2 | ||||||
| 40 | SCREW-MACHINE M6 | 08360-61412 | 2 | ||||||
| 41 | WASHER-SPRING M6 | 08915-13610 | 2 | ||||||
| 42 | WASHER-PLAIN M6 | 08915-43610 | 2 | ||||||
| 43 | CYLINDER-LOCK TAIL G | 90560-E8200 | 1 | ||||||
| 43 | CYLINDER-LOCK TAIL G | 90560-E8201 | 1 | Yes | Yes | 90560-E8200 | |||
| 44 | CLIP-CYLINDER | 96809-19700 | 1 | ||||||
| 45 | ASSY-DOWN STOPPER TA | 90522-E4100 | 2 | ||||||
| 46 | SCREW-MACHINE M5 | 08310-51610 | 4 | ||||||
| 46 | SCREW-MACHINE M5 | 08310-51612 | 4 | Yes | Yes | 08310-51610 | |||
| 47 | WASHER-PLAIN M5 | 08915-43510 | 4 | ||||||
| 48 | WASHER-SPRING M5 | 08915-13510 | 4 | ||||||
| 49 | DOVE TAIL-TAIL GATE | 90524-E4100 | 2 | ||||||
| 50 | SCREW-MACHINE M5 | 08310-51012 | 4 | ||||||
| 51 | WASHER-SPRING M5 | 08915-13510 | 4 | ||||||
| 52 | BUMPER-RUBBER TAIL G | 90526-22900 | 2 | ||||||
| 53 | SCREW-MACHINE | 08310-61212 | 4 | ||||||
| 54 | WASHER-EXTERNAL TOOT | 08916-33610 | 4 | ||||||
| 55 | ASSY-DUCT REAR VENTI | 90820-E4100 | 2 | ||||||
| 56 | TUBE-DRAIN | 90828-E4101 | 2 | ||||||
| 57 | NUT-PUSH ON SPRING | 08961-43210 | 4 | ||||||
| 58 | ASSY-TRIM GATE BLUE | 90902-E4602 | 7012 | 1 | Yes | Yes | 90902-E4600 | ||
| 58 | ASSY-TRIM GATE BLUE | 90902-E8301 | 7101 | 1 | No | No | 90902-E4602 | ||
| 58 | ASSY-TRIM GATE | 90902-E8800 | 7206 | 1 | |||||
| 58 | ASSY-TRIM GATE | 90902-E8801 | 7206 | 1 | |||||
| 58 | ASSY-TRIM TAIL GATE | 90902-E4100 | 1 | ||||||
| 58 | ASSY-TRIM TAIL GATE | 90902-E4101 | 1 | ||||||
| 58 | ASSY-TRIM TAIL GATE | 90902-E4104 | 7012 | 1 | Yes | Yes | 90902-E4100 | ||
| 58 | ASSY-TRIM TAIL GATE | 90902-E4105 | 7012 | 1 | Yes | Yes | 90902-E4101 | ||
| 58 | ASSY-TRIM TAIL GATE | 90902-E4600 | 1 | ||||||
| 58 | ASSY-TRIM TAIL GATE | 90902-E8202 | 7101 | 7206 | 1 | No | No | 90902-E4104 | |
| 58 | ASSY-TRIM TAIL GATE | 90902-E8203 | 7101 | 7206 | 1 | No | No | 90902-E4105 | |
| 58 | ASSY-TRIM TAIL GATE | 90902-N3300 | 7207 | 1 | No | No | 90902-E8202 | ||
| 58 | ASSY-TRIM TAIL GATE | 90902-N3301 | 7207 | 1 | No | No | 90902-E8203 | ||
| 58 | ASSY-TRIM TAIL GATE | 90902-N3302 | 7207 | 1 | No | No | 90902-E8800 | ||
| 58 | ASSY-TRIM TAIL GATE | 90902-N3303 | 7207 | 1 | No | No | 90902-E8801 | ||
| 58 | ASSY-TRIM TAIL GATE | 90902-N3304 | 7207 | 1 | Yes | Yes | 90902-N3303 | ||
| 59 | RIVER-PLASTIC | 90909-E4100 | 10 | ||||||
| 59 | RIVER-PLASTIC | 90909-E4600 | 10 | ||||||
| 59 | RIVER-PLASTIC | 90909-E8800 | 10 | ||||||
| 59 | RIVER-PLASTIC | 90909-E8801 | 10 | ||||||
| 59 | RIVET-PLASTIC | 90909-E4101 | 10 | ||||||
| 60 | WEATHERSTRIP-TAIL GA | 76910-E4100 | 1 | ||||||
| 60 | WEATHERSTRIP-TAIL GA | 76910-N3000 | 1 | ||||||
| 61 | WEATHERSTRIP-TAIL GA | 76911-N3000 | 2 | ||||||
| 62 | WEATHERSTRIP-TAIL GA | 76912-E4100 | 1 | ||||||
| 62 | WEATHERSTRIP-TAIL GA | 76912-N4500 | 1 | Yes | Yes | 76912-E4100 | |||
| 63 | GRILLE-REAR VENTILAT | 90950-E4101 | 2 | ||||||
| 64 | SCREW-TAPPING M4 | 08530-41620 | 4 | ||||||
| 65 | RUBBER-BASE BUMPER L | 62693-E4101 | 1 | ||||||
| 65 | RUBBER-BASE BUMPER R | 62692-E4101 | 1 | ||||||
| 66 | ASSY-AIR SPOILAR | 98100-N3525 | 1 | Yes | Yes | 98100-N3300 | |||
| 66 | ASSY-AIR SPOILAR | 98100-E4600 | OP | 1 | |||||
| 66 | ASSY-AIR SPOILAR | 98100-E4601 | OP | 1 | Yes | Yes | 98100-E4600 | ||
| 66 | ASSY-AIR SPOILAR | 98100-N3300 | OP | 1 | Yes | Yes | 98100-E4601 | ||
| 66 | ASSY-AIR SPOILAR | 98100-N3528 | OP.AUTOMATIC | 1 | Yes | Yes | 98100-N3526 | ||
| 66 | ASSY-AIR SPOILAR | 98100-N3105 | OP.MANUAL | 1 | Yes | Yes | 98100-N3527 | ||
| 66 | ASSY-AIR SPOILAR | 98100-N3527 | OP.MANUAL | 1 | Yes | Yes | 98100-N3525 | ||
| 67 | WASHER-PLAIN M5 (AIR | 08915-43510 | OP | 7211 | 6 | ||||
| 68 | WASHER-LOCK M5 (AIR | 08915-13510 | OP | 7211 | 6 | ||||
| 69 | NUT-FLANGE M-6 (AIR | 01225-00021 | OP | 2201 | 6 | 08911-10510 | |||
| 69 | NUT-HEX M5 (AIR SPOI | 08911-10510 | OP | 7211 | 6 | ||||
| 70 | PLUG-NYLON (EMBLEM H | 77700-89922 | OP | 5 | |||||
| 71 | GROMMET | 27035-21000 | 2 | ||||||
| 72 | SHIM-REAR BUMPER | 85015-E4101 | 4 | ||||||
| 73 | BOLT-WITH WASHER | 08114-02510 | 2 |
