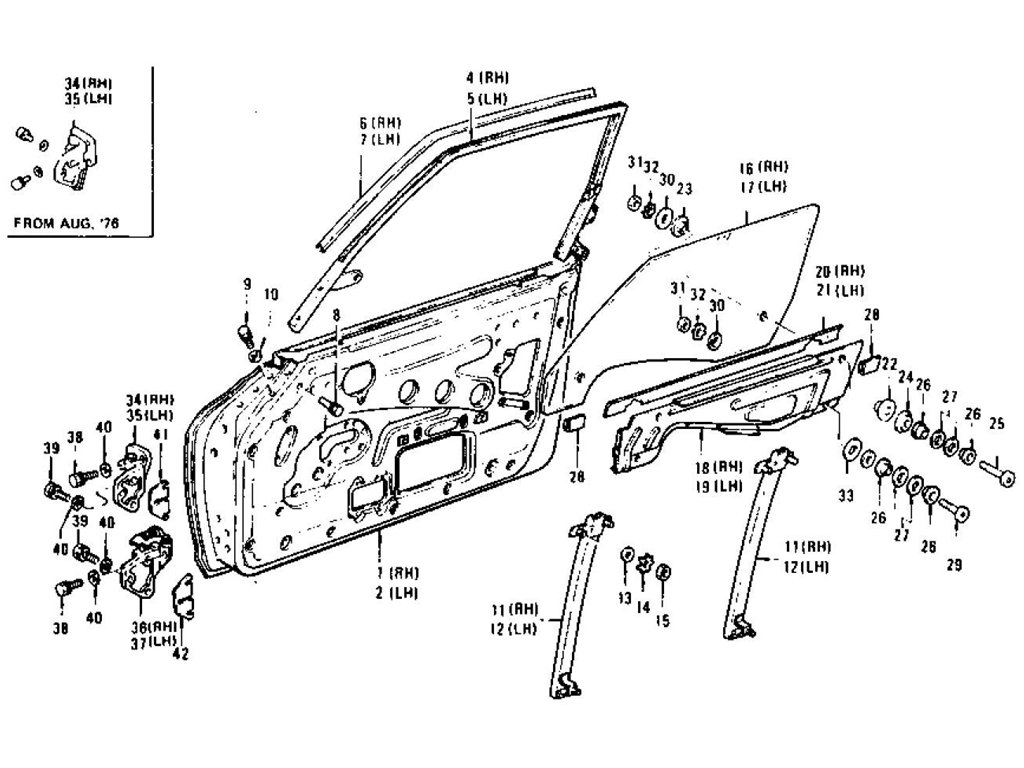

Door Panel, Glass, Hinge (2+2 Seater) (From Oct.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY PANEL DOOR RH | 80100-N4100 | 7506 | 1 | |||||
| 1 | ASSY PANEL DOOR RH | 80100-N4220 | 7507 | 1 | Yes | Yes | 80100-N4100 | ||
| 1 | ASSY PANEL DOOR RH | 80100-N4221 | 7608 | 1 | No | No | H0100-N4221 | ||
| 1 | ASSY PANEL DOOR RH | H0100-N4221 | FROM GHLS30-03082 2 | 7509 | 7607 | 1 | No | No | H0100-N4220 |
| 1 | ASSY PANEL DOOR RH | H0100-N4220 | UP TO GHLS30-0308 21 | 7508 | 1 | Yes | Yes | 80100-N4220 | |
| 2 | ASSY PANEL DOOR LH | 80101-N4100 | 7506 | 1 | |||||
| 2 | ASSY PANEL DOOR LH | 80101-N4220 | 7507 | 1 | Yes | Yes | 80101-N4100 | ||
| 2 | ASSY PANEL DOOR LH | 80101-N4221 | 7608 | 1 | No | No | H0101-N4221 | ||
| 2 | ASSY PANEL DOOR LH | H0101-N4221 | FROM GHLS30-03082 2 | 7509 | 7607 | 1 | No | No | H0101-N4220 |
| 2 | ASSY PANEL DOOR LH | H0101-N4220 | UP TO GHLS30-0308 21 | 7508 | 1 | Yes | Yes | 80101-N4220 | |
| 3 | PANEL DOOR OUTER LH | 80151-N3700 | 1 | ||||||
| 3 | PANEL DOOR OUTER RH | 80150-N3700 | 1 | ||||||
| 4 | ASSY SASH DOOR RH | 80200-N3700 | 7506 | 1 | |||||
| 4 | ASSY SASH DOOR RH | 80200-N4521 | 7507 | 7607 | 1 | No | No | 80200-N3700 | |
| 4 | ASSY SASH DOOR RH | 80200-N4420 | 7608 | 1 | No | No | 80200-N4521 | ||
| 5 | ASSY SASH DOOR LH | 80201-N3700 | 7506 | 1 | |||||
| 5 | ASSY SASH DOOR LH | 80201-N4521 | 7507 | 7607 | 1 | No | No | 80201-N3700 | |
| 5 | ASSY SASH DOOR LH | 80201-N4420 | 7608 | 1 | No | No | 80201-N4521 | ||
| 6 | WEATHERSTRIP DOOR SA | 80810-N4520 | 7507 | 1 | |||||
| 7 | WEATHERSTRIP DOOR SA | 80811-N4520 | 7507 | 1 | |||||
| 8 | SCREW MACHINE | 01431-00063 | 16 | ||||||
| 9 | SCREW MACHINE | 08360-61014 | 2 | ||||||
| 10 | WASHER PLAIN | 74340-12161 | 2 | ||||||
| 11 | ASSY RAIL GUIDE DOOR | 80240-N3700 | 2 | ||||||
| 12 | ASSY RAIL GUIDE DOOR | 80241-N3700 | 2 | ||||||
| 13 | WASHER PLAIN | 08915-44210 | 12 | ||||||
| 14 | WASHER LOCK | 08916-34210 | 12 | ||||||
| 15 | NUT | 08911-34210 | 12 | ||||||
| 16 | GLASS DOOR WINDOW RH | 80312-N3700 | 7506 | 1 | |||||
| 16 | GLASS DOOR WINDOW RH | 80312-N4520 | 7507 | 1 | No | No | 80312-N3700 | ||
| 17 | GLASS DOOR WINDOW LH | 80313-N3700 | 7506 | 1 | |||||
| 17 | GLASS DOOR WINDOW LH | 80313-N4520 | 7507 | 1 | No | No | 80313-N3700 | ||
| 18 | ASSY BOTTOM DOOR GLA | 80302-N3700 | 1 | ||||||
| 19 | ASSY BOTTOM DOOR GLA | 80303-N3700 | 1 | ||||||
| 20 | RUBBER GLAZING DOOR | 80314-N3700 | 1 | ||||||
| 21 | RUBBER GLAZING DOOR | 80315-N3700 | 1 | ||||||
| 22 | BUSH WINDOW GLASS IN | 80824-E6601 | 7608 | 4 | |||||
| 23 | BUSH WINDOW GLASS OU | 80823-E6601 | 7608 | 4 | |||||
| 24 | WASHER WINDOW GLASS | 82322-E6600 | 7608 | 8 | |||||
| 25 | SHAFTGUIDE ROLLER | 80338-E6600 | 7608 | 4 | |||||
| 26 | RUBBER ROLLER | 80357-E6601 | 7608 | 16 | |||||
| 27 | SLIDE DOOR WINDOW | 80325-E6601 | 7608 | 16 | |||||
| 28 | RUBBER GLAGING BACK | 80345-N3700 | 10 | ||||||
| 29 | SHAFT GUIDE ROLLER | 80356-E6600 | 7608 | 4 | |||||
| 30 | WASHER PLAIN | 08915-53610 | 8 | ||||||
| 31 | NUT HEX | 08911-30610 | 8 | ||||||
| 32 | WASHER LOCK | 08916-33610 | 8 | ||||||
| 33 | SHIM DOOR WINDOW | 80346-E6600 | 4 | ||||||
| 34 | ASSY HINGE DOOR UPPE | 80400-N3000 | 7507 | 1 | |||||
| 34 | ASSY HINGE DOOR UPPE | 80400-N4501 | 7508 | 7607 | 1 | No | No | 80400-N3000 | |
| 34 | ASSY HINGE DOOR UPPE | 80400-N4400 | 7608 | 1 | No | No | 80400-N4501 | ||
| 35 | ASSY HINGE DOOR UPPE | 80401-N3000 | 7507 | 1 | |||||
| 35 | ASSY HINGE DOOR UPPE | 80401-N4501 | 7508 | 7607 | 1 | No | No | 80401-N3000 | |
| 35 | ASSY HINGE DOOR UPPE | 80401-N4400 | 7608 | 1 | No | No | 80401-N4501 | ||
| 36 | ASSY HINGE DOOR LOWE | 80420-E8200 | 7507 | 1 | |||||
| 36 | ASSY HINGE DOOR LOWE | 80420-N4501 | 7508 | 1 | No | No | 80420-E8200 | ||
| 37 | ASSY HINGE DOOR LOWE | 80421-E8200 | 7507 | 1 | |||||
| 37 | ASSY HINGE DOOR LOWE | 80421-N4501 | 7508 | 1 | No | No | 80421-E8200 | ||
| 38 | BOLT HEX FIX TO DOOR | 08130-82062 | 10 | ||||||
| 39 | BOLT HEX FIX TO PILL | 08130-82062 | 7507 | 12 | |||||
| 39 | BOLT HEX FIX TO PILL | 08130-83062 | 7508 | 12 | No | No | 08130-82062 | ||
| 40 | WASHER SPECIAL | 80425-22900 | 24 | ||||||
| 41 | SHIM DOOR HING UPPER | 80406-N4501 | 7508 | 2 | No | No | 80406-E4100 | ||
| 41 | SHIM DOOR HINGE UPPE | 80405-E4100 | 7507 | 2 | |||||
| 41 | SHIM DOOR HINGE UPPE | 80406-E4100 | 7507 | 2 | |||||
| 41 | SHIM DOOR HINGE UPPE | 80405-N4501 | 7508 | 2 | No | No | 80405-E4100 | ||
| 42 | SHIM DOOR HINGE LOWE | 80425-E4100 | 7507 | 2 | |||||
| 42 | SHIM DOOR HINGE LOWE | 80426-E4100 | 7507 | 2 | |||||
| 42 | SHIM DOOR HINGE LOWE | 80425-N4501 | 7508 | 2 | No | No | 80425-E4100 | ||
| 42 | SHIM DOOR HINGE LOWE | 80426-N4501 | 7508 | 2 | No | No | 80426-E4100 |
