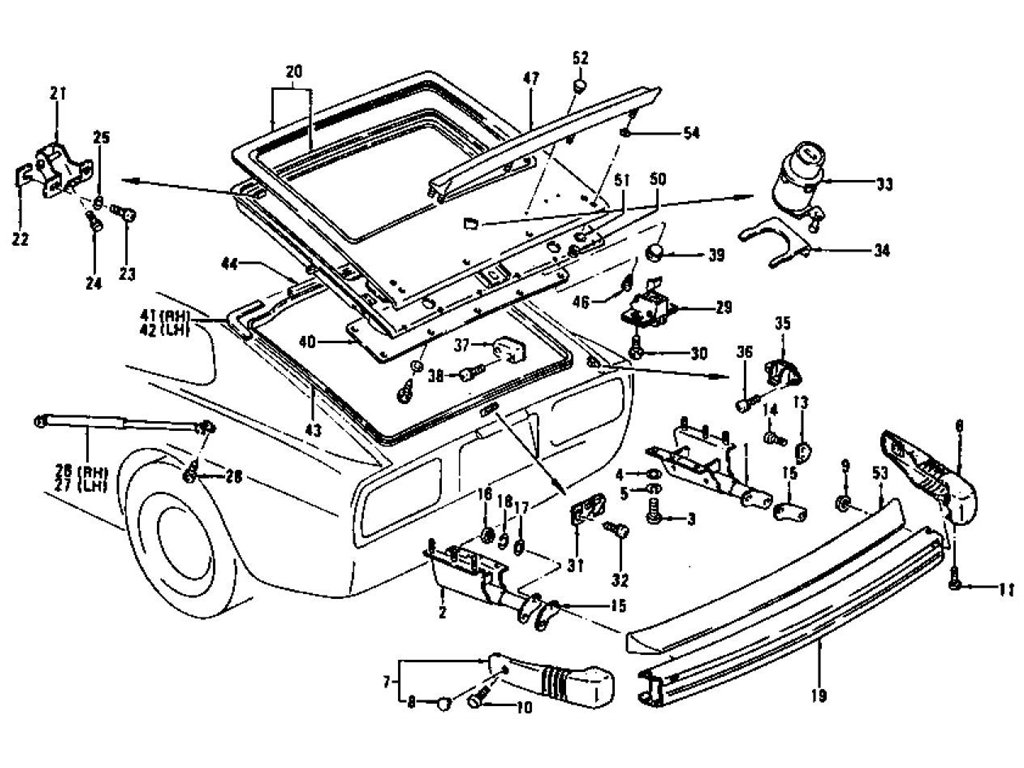

Tail Gate Panel, Trim, Lock & Rear Bumper (2+2 Seater) (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | COMP SHOCKAB BUMPER | 85210-N4710 | 7608 | 1 | |||||
| 2 | COMP SHOCKAB REAR BU | 85211-N4710 | 7608 | 1 | |||||
| 3 | BOLT HEX | 08114-03010 | 7608 | 6 | |||||
| 4 | WASHER PLAIN | 08915-54010 | 7608 | 6 | |||||
| 5 | WASHER SPRING | 08915-24010 | 7608 | 6 | |||||
| 6 | ASSY BUMPER REAR SID | 85350-N4710 | 7608 | 1 | |||||
| 7 | ASSY BUMPER REAR SID | 85351-N4710 | 7608 | 1 | |||||
| 8 | PLUG BUMPER SIDE REA | 85365-N4700 | 7608 | 2 | |||||
| 9 | NUT FLANGE | 01221-00043 | 7608 | 2 | |||||
| 10 | BOLT HEX | 08120-81633 | 7608 | 2 | |||||
| 11 | BOLT HEX | 08116-82037 | 7608 | 2 | |||||
| 12 | SCREW TAPPING | 08510-61623 | 7608 | 2 | |||||
| 13 | SHIELD DUST REAR BUM | 85396-N4200 | 7608 | 2 | |||||
| 14 | BOLT HEX | 08363-61648 | 7608 | 4 | |||||
| 15 | SHIM REAR BUMPER | 85388-N4700 | 7608 | 2 | |||||
| 16 | NUT HEX | 08912-84010 | 7608 | 4 | |||||
| 17 | J | 54473-N3400 | 7608 | 4 | |||||
| 18 | WASHER LOCK | 08915-24010 | 7608 | 4 | |||||
| 19 | ASSY BUMPER REAR | 85301-N4701 | 7608 | 1 | |||||
| 20 | ASSY PANEL TAIL GATE | 90101-N4000 | 7608 | 1 | |||||
| 21 | ASSY TAIL GATE HINGE | 90400-N3700 | 7608 | 2 | |||||
| 22 | SHIM ADJUSTING TAIL | 90407-E4100 | 7608 | 4 | |||||
| 22 | SHIM ADJUSTING TAIL | 90407-N3700 | 7608 | 4 | |||||
| 23 | SCREW MACHINE M8 | 08110-82525 | 7608 | 4 | |||||
| 24 | SCREW MACHINE M8 | 08320-81812 | 7608 | 4 | |||||
| 25 | WASHER TOOTH M8 | 08916-43810 | 7608 | 4 | |||||
| 26 | SET STAY TAIL GATE R | 90420-N3702 | 7608 | 1 | |||||
| 27 | SET STAY TAIL GATE L | 90421-N3702 | 7608 | 1 | |||||
| 28 | SCREW MACHINE | 08363-61626 | 7608 | 6 | |||||
| 29 | ASSY TAIL GATE LOCK | 90502-E4101 | 7608 | 1 | |||||
| 30 | SCREW MACHINE | 08363-61626 | 7608 | 2 | |||||
| 31 | ASSY STRIKER TAIL GA | 90805-E4100 | 1 | ||||||
| 32 | SCREW MACHINE | 08363-61626 | 7608 | 2 | |||||
| 33 | CYLINDER LOCK TAIL G | 90560-E8201 | 7608 | 1 | |||||
| 34 | CLIP CYLINDER | 96809-19700 | 7608 | 1 | |||||
| 35 | ASSY DOWN STOPPER TA | 90522-E4100 | 7608 | 2 | |||||
| 36 | SCREW MACHINE | 08363-61626 | 7608 | 4 | |||||
| 37 | BUMPER RUBBER TAIL G | 90526-E4100 | 7608 | 2 | |||||
| 38 | SCREW MACHINE | 08313-51226 | 7608 | 4 | |||||
| 39 | GROMMET HEATER | 27035-21000 | 7608 | 2 | |||||
| 40 | ASSY TRIM TAIL GATE | 90902-N4100 | 7608 | 1 | |||||
| 40 | ASSY TRIM TAIL GATE | 90902-N4103 | 7608 | 1 | |||||
| 40 | ASSY TRIM TAIL GATE | 90902-N4104 | 7608 | 1 | |||||
| 41 | WEATHERSTRIP TAIL GA | 76913-N4520 | 7608 | 1 | |||||
| 42 | WEATHERSTRIP TAIL GA | 76914-N4520 | 7608 | 1 | |||||
| 43 | WEATHERSTRIP TAIL GA | 76912-N4521 | 7608 | 1 | |||||
| 44 | WELT TAIL GATE CENTE | 76921-N4420 | 7608 | 1 | |||||
| 45 | SEALING SCREEN TAIL | 90905-N4100 | 7608 | 1 | |||||
| 46 | CLIP TRIM | 01553-00081 | 7608 | 10 | |||||
| 47 | ASSY SPOILAR AIR | 98100-N3527 | OP MANUAL | 7608 | 1 | ||||
| 47 | ASSY SPOILER AIR | 98100-N3528 | OP AUTOMATIC | 7608 | 1 | ||||
| 47 | ASSY SPOILER AIR | 98100-N3105 | OP MANUAL | 1 | Yes | Yes | 98100-N3527 | ||
| 48 | SEALING AIR SPOILER | 98115-E7200 | OP | 7608 | 2 | ||||
| 49 | CUHSION AIR SPOILER | 98116-E7200 | OP | 7608 | 2 | ||||
| 50 | NUT FLANGE | 01225-00021 | OP | 7608 | 6 | ||||
| 51 | WAHSER | 08915-53610 | OP | 7608 | 6 | ||||
| 52 | PLUG | 77700-89922 | OP | 7608 | 6 | ||||
| 53 | SHINGTSHIELD REAR BU | 85360-N4710 | 7608 | 1 | |||||
| 54 | WASHER AIR SPOILAR | 68875-10600 | OP | 7608 | 6 |
