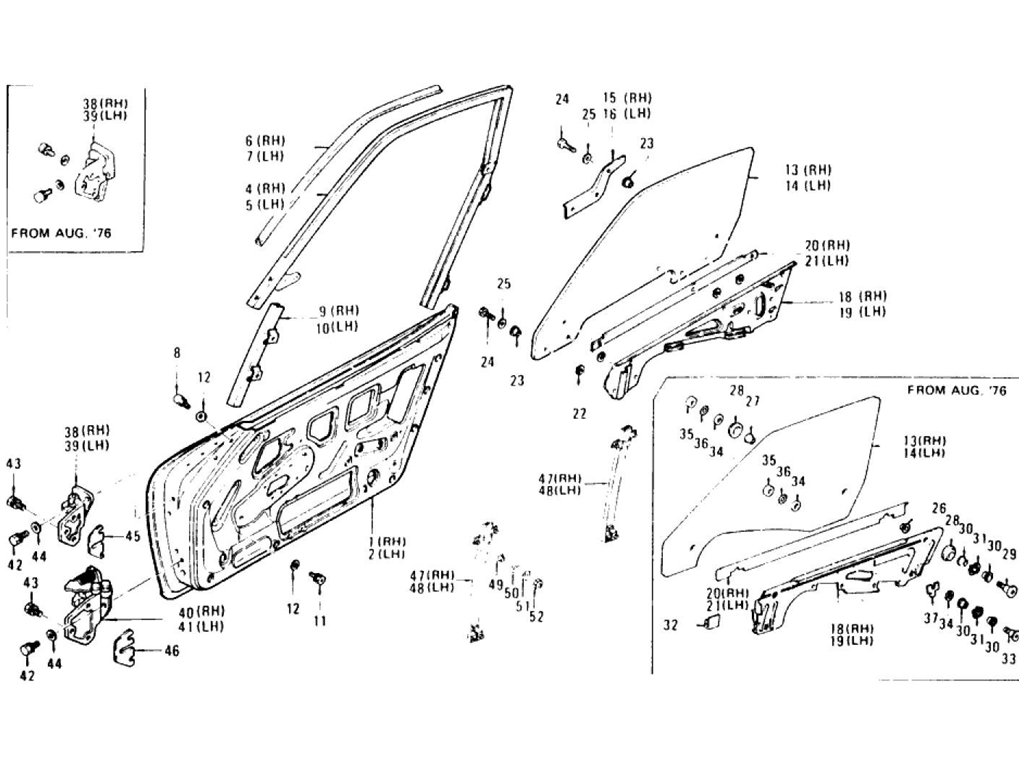

Door Panel, Glass & Hinge (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-PANEL DOOR RH | 80100-N3600 | 1 | ||||||
| 1 | ASSY-PANEL DOOR RH | 80100-N4200 | 7507 | 1 | No | No | 80100-N3600 | ||
| 1 | ASSY-PANEL DOOR RH | 80100-N4202 | 7608 | 1 | No | No | H0100-N4201 | ||
| 1 | ASSY-PANEL DOOR RH | H0100-N4201 | FROM HLS30-272992 | 7509 | 7607 | 1 | No | No | H0100-N4200 |
| 1 | ASSY-PANEL DOOR RH | H0100-N4200 | UP TO HLS30-27299 1 | 7508 | 1 | Yes | Yes | 80100-N4200 | |
| 2 | ASSY-PANEL DOOR LH | 80101-N3600 | 7506 | 1 | |||||
| 2 | ASSY-PANEL DOOR LH | 80101-N4200 | 7507 | 1 | No | No | 80101-N3600 | ||
| 2 | ASSY-PANEL DOOR LH | 80101-N4201 | 7608 | 1 | No | No | H0101-N4201 | ||
| 2 | ASSY-PANEL DOOR LH | H0101-N4201 | FROM HLS30-272992 | 7509 | 7607 | 1 | No | No | H0101-N4200 |
| 2 | ASSY-PANEL DOOR LH | H0101-N4200 | UP TO HLS30-27299 1 | 7508 | 1 | Yes | Yes | 80101-N4200 | |
| 3 | PANEL-DOOR OUTER LH | 80151-N3400 | 1 | ||||||
| 3 | PANEL-DOOR OUTER RH | 80150-N3400 | 1 | ||||||
| 4 | ASSY-SASH DOOR RH | 80200-N3400 | 7506 | 1 | |||||
| 4 | ASSY-SASH DOOR RH | 80200-N4500 | 7507 | 7607 | 1 | No | No | 80200-N3400 | |
| 4 | ASSY-SASH DOOR RH | 80200-N4400 | 7608 | 1 | No | No | 80200-N4500 | ||
| 5 | ASSY-SASH DOOR LH | 80201-N3400 | 7506 | 1 | |||||
| 5 | ASSY-SASH DOOR LH | 80201-N4500 | 7507 | 7607 | 1 | No | No | 80201-N3400 | |
| 5 | ASSY-SASH DOOR LH | 80201-N4400 | 7608 | 1 | No | No | 80201-N4500 | ||
| 6 | WEATHERSTRIP-DOOR SA | 80810-N4500 | 7507 | 1 | |||||
| 7 | WERTHERSTRIP-DOOR SA | 80811-N4500 | 7507 | 1 | |||||
| 8 | BOLT-HEX M6 | 01431-00063 | 16 | ||||||
| 9 | ASSY-SASH DOOR FRON | 80210-N3400 | 1 | ||||||
| 10 | ASSY-SASH DOOR FRON | 80211-N3400 | 1 | ||||||
| 11 | SCREW-MACHINE M6 | 01431-00063 | 4 | ||||||
| 12 | WASHER-PLAIN M6 | 08915-43610 | 2 | ||||||
| 13 | GLASS-DOOR WINDOW RH | 80311-E4101 | 7506 | 1 | |||||
| 13 | GLASS-DOOR WINDOW RH | 80311-N4500 | 7507 | 7607 | 1 | No | No | 80311-E4101 | |
| 13 | GLASS-DOOR WINDOW RH | 80312-N4400 | 7608 | 1 | No | No | 80311-N4500 | ||
| 14 | GLASS-DOOR WINDOW LH | 80312-E4101 | 7506 | 1 | |||||
| 14 | GLASS-DOOR WINDOW LH | 80312-N4500 | 7507 | 7607 | 1 | No | No | 80312-E4101 | |
| 14 | GLASS-DOOR WINDOW LH | 80313-N4400 | 7608 | 1 | No | No | 80312-N4500 | ||
| 15 | PATCH-DOOR GLASS RH | 80320-E4100 | 7607 | 1 | |||||
| 16 | PATCH-DOOR GLASS LH | 80321-E4100 | 7607 | 1 | |||||
| 17 | WASHER-PLAIN | 08915-43510 | 7607 | 6 | |||||
| 18 | ASSY-BOTTOM DOOR GLA | 80302-N3400 | 7607 | 1 | |||||
| 18 | ASSY-BOTTOM DOOR GLA | 80302-N4400 | 7608 | 1 | No | No | 80302-N3400 | ||
| 19 | ASSY-BOTTOM DOOR GLA | 80303-N4400 | 7608 | 1 | No | No | 80303-N3400 | ||
| 19 | ASSY-GLASS DOOR BOTT | 80303-N3400 | 7607 | 1 | |||||
| 20 | RUBBER-GLAZING DOOR | 80315-E4100 | 7607 | 1 | |||||
| 20 | RUBBER-GLAZING DOOR | 80314-N4400 | 7608 | 1 | No | No | 80315-E4100 | ||
| 21 | RUBBER-GLAZING DOOR | 80316-E4100 | 7607 | 1 | |||||
| 21 | RUBBER-GLAZING DOOR | 80315-N4400 | 7608 | 1 | No | No | 80316-E4100 | ||
| 22 | PACKING-GLASS DOOR W | 80317-E4100 | 7607 | 8 | |||||
| 23 | FASIENER-GLASS DOOR | 80318-E4100 | 7607 | 14 | |||||
| 24 | BOLT-SOUARE M5 | 08360-51410 | 7607 | 14 | |||||
| 25 | WASHER-SPECIAL | 96830-A0800 | 7607 | 14 | |||||
| 26 | BUSH-WINDOW GLASS IN | 80824-E6601 | 7608 | 4 | |||||
| 27 | BUSH-WINDOW GLASS OU | 80823-E6601 | 7608 | 4 | |||||
| 28 | WASHER-WINDOW GLASS | 82322-E6600 | 7608 | 8 | |||||
| 29 | SHAFT-GUIDE ROLLER | 80338-E6600 | 7608 | 4 | |||||
| 30 | RUBBER-BUSH ROLLER | 80357-E6601 | 7608 | 16 | |||||
| 31 | SLIDE-DOOR WINDOW | 80325-E6601 | 7608 | 16 | |||||
| 32 | RUBBER-GLAZING BACK | 80345-N3700 | 7608 | 8 | |||||
| 33 | SHAFT-GUIDE ROLLER | 80356-E6600 | 7608 | 4 | |||||
| 34 | WASHER-PLAIN | 08915-53610 | 7608 | 8 | |||||
| 35 | NUT-JUM | 08911-30610 | 7608 | 8 | |||||
| 36 | WASHER-LOCK | 08916-33610 | 7608 | 8 | |||||
| 37 | SHIM-DOOR WINDOW | 80346-E6600 | 7608 | 4 | |||||
| 38 | ASSY-HINGE DOOR UPPE | 80400-N3000 | 7507 | 1 | |||||
| 38 | ASSY-HINGE DOOR UPPE | 80400-N4501 | 7508 | 7607 | 1 | No | No | 80400-N3000 | |
| 38 | ASSY-HINGE DOOR UPPE | 80400-N4400 | 7608 | 1 | No | No | 80400-N4501 | ||
| 39 | ASSY-HINGE DOOR UPPE | 80401-N3000 | 7507 | 1 | |||||
| 39 | ASSY-HINGE DOOR UPPE | 80401-N4501 | 7508 | 7607 | 1 | No | No | 80401-N3000 | |
| 39 | ASSY-HINGE DOOR UPPE | 80401-N4400 | 7608 | 1 | No | No | 80401-N4501 | ||
| 40 | ASSY-HINGE DOOR LOWE | 80420-E8200 | 7507 | 1 | |||||
| 40 | ASSY-HINGE DOOR LOWE | 80420-N4501 | 7508 | 1 | No | No | 80420-E8200 | ||
| 41 | ASSY-HINGE DOOR LOWE | 80421-E8200 | 7507 | 1 | |||||
| 41 | ASSY-HINGE DOOR LOWE | 80421-N4501 | 7508 | 1 | No | No | 80421-E8200 | ||
| 42 | BOLT-HEX (FIX TO DOO | 08130-82062 | 10 | ||||||
| 43 | BOLT-HEX (FIX TO PIL | 08130-82062 | 7507 | 12 | |||||
| 43 | BOLT-HEX (FIX TO PIL | 08130-83062 | 7508 | 12 | No | No | 08130-82062 | ||
| 44 | WASHER-SPECIAL | 80425-22900 | 24 | ||||||
| 45 | SHIM-DOOR HINGE UPPE | 80405-E4100 | 7507 | 2 | |||||
| 45 | SHIM-DOOR HINGE UPPE | 80406-E4100 | 7507 | 2 | |||||
| 45 | SHIM-DOOR HINGE UPPE | 80405-N4501 | 7508 | 2 | No | No | 80405-E4100 | ||
| 45 | SHIM-DOOR HINGE UPPE | 80406-N4501 | 7508 | 2 | No | No | 80406-E4100 | ||
| 46 | SHIM-DOOR HINGE LOWE | 80426-E4100 | 7507 | 2 | |||||
| 46 | SHIM-DOOR HINGE LOWE | 80426-N4501 | 7508 | 2 | No | No | 80426-E4100 | ||
| 46 | SHIM-DOOR HINGE LWER | 80425-E4100 | 7507 | 2 | |||||
| 46 | SHIM-DOOR HINGE LWER | 80425-N4501 | 7508 | 2 | No | No | 80425-E4100 | ||
| 47 | ASSY-RAIL | 80240-N4400 | 7608 | 2 | |||||
| 48 | ASSY-RAIL | 80241-N4400 | 7608 | 2 | |||||
| 49 | SCREW-ADJUST | 82299-E6600 | 7608 | 12 | |||||
| 50 | WASHER-PLAIN | 08915-44210 | 7608 | 12 | |||||
| 51 | WASHER-LOCK | 08916-34210 | 7608 | 12 | |||||
| 52 | NUT | 08911-34210 | 7608 | 12 |
