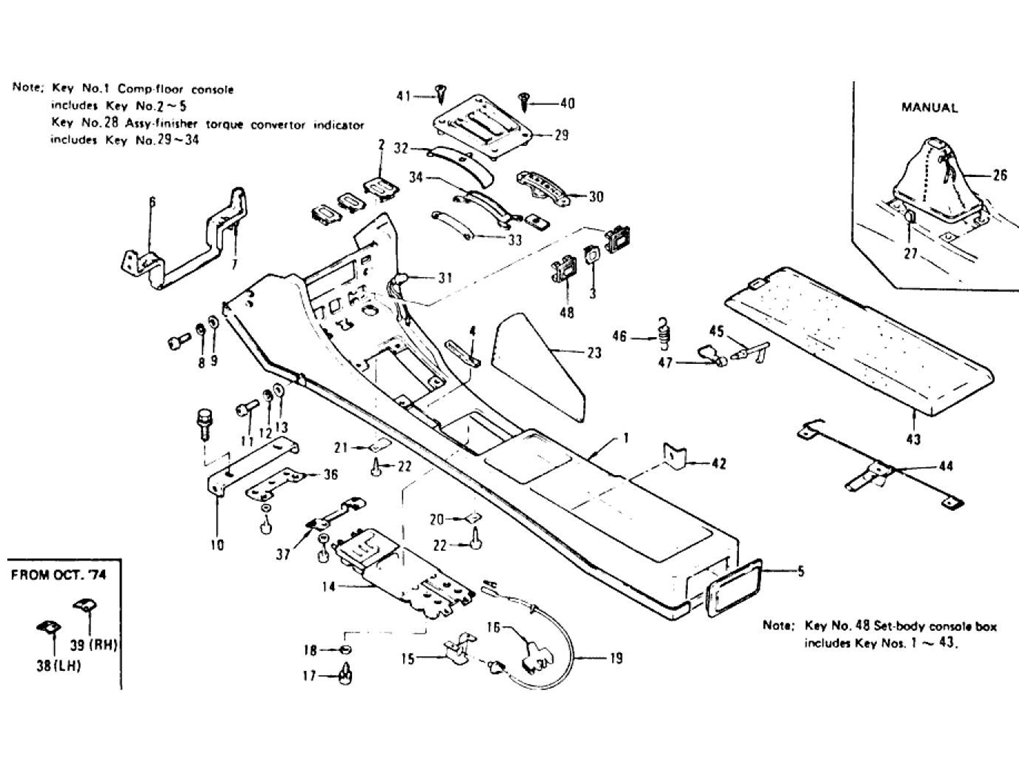

Floor Console, Finisher & Ash Tray (2 Seater) (From Aug.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | CONSOLE-FLOOR | 96911-N3400 | 7507 | 1 | |||||
| 1 | CONSOLE-FLOOR | 96911-N3525 | 7607 | 1 | Yes | Yes | 96911-N4500 | ||
| 1 | CONSOLE-FLOOR | 96911-N4500 | 7508 | 7607 | 1 | Yes | Yes | 96911-N3400 | |
| 1 | SET-BODY CONSOLE BOX | 96911-N4725 | 7608 | 1 | Yes | Yes | 96911-N3525 | ||
| 2 | GROMMET-PARKING SWIT | 96925-N3400 | 1 | ||||||
| 3 | GROMMET-FUEL WARNING | 96926-N4200 | 7409 | 1 | |||||
| 4 | GROMMET-CHOKE HOLE | 96927-N3400 | 7412 | 1 | |||||
| 5 | GROMMET-ASH TRAY | 96928-N3400 | 1 | ||||||
| 6 | ASSY-BRACKET | 96915-N3400 | 1 | ||||||
| 6 | ASSY-BRACKET | 96915-N4200 | 7508 | 1 | Yes | Yes | 96915-N3400 | ||
| 7 | CLIP | 01551-00013 | 1 | ||||||
| 8 | WASHER-LOCK | 08915-13542 | 4 | ||||||
| 9 | WASHER-PLAIN | 08915-43542 | 4 | ||||||
| 10 | ASSY-BRACKET | 96912-N3400 | 1 | ||||||
| 11 | SCREW-MACHINE | 08410-51642 | 2 | ||||||
| 12 | WASHER-LOCK | 08915-13542 | 2 | ||||||
| 13 | WASHER-PLAIN | 08915-43542 | 2 | ||||||
| 14 | ASSY-ASH TRAY | 96500-N3400 | 7601 | 1 | |||||
| 14 | ASSY-ASH TRAY | 96500-N4400 | 7602 | 7607 | 1 | Yes | Yes | 96500-N3400 | |
| 14 | ASSY-ASH TRAY | 96500-N4600 | 7608 | 1 | Yes | Yes | 96500-N4400 | ||
| 15 | BRACKET-ASH TRAY LAM | 96506-N4600 | 7608 | 1 | |||||
| 16 | CLAMP-ASH TRAY | 96509-N4600 | 7608 | 1 | |||||
| 17 | SCREW-SELF TAPPING | 01421-00133 | 4 | ||||||
| 18 | WASHER-PLAIN | 08915-43510 | 4 | ||||||
| 19 | ASSY-LAMP ASH TRAY | 74987-N4600 | 7608 | 1 | |||||
| 20 | CLIP-PLATE | 24210-N4603 | 7608 | 4 | |||||
| 21 | CLIP | 24020-N3401 | 7608 | 3 | |||||
| 22 | SCREW | 08316-51226 | 7608 | 7 | |||||
| 23 | ASSY-COVER | 74980-E8700 | 1 | ||||||
| 24 | FASTENER-FEMALE | 74982-12900 | 4 | ||||||
| 25 | FASTENER-MALE | 74983-12900 | 4 | ||||||
| 25 | FASTENER-MALE | 97756-12900 | 4 | Yes | Yes | 74983-12900 | |||
| 26 | ASSY-BOOTS | 96935-N3400 | MANUAL | 1 | |||||
| 27 | CLIP-BOOTS | 75155-E8700 | MANUAL | 1 | |||||
| 28 | ASSY-FINISHER TORQUE | 96940-N3602 | AUTOMATIC | 7409 | 1 | ||||
| 28 | ASSY-FINISHER TORQUE | 96940-N3603 | AUTOMATIC | 7410 | 7607 | 1 | Yes | Yes | 96940-N3602 |
| 28 | ASSY-FINISHER TORQUE | 96940-N4700 | AUTOMATIC | 7608 | 1 | Yes | Yes | 96940-N3603 | |
| 29 | FINISHER-TORQUE CONV | 96941-N3400 | AUTOMATIC | 1 | |||||
| 30 | ASSY-BOX LAMP | 96942-N3601 | AUTOMATIC | 7409 | 1 | ||||
| 30 | ASSY-BOX LAMP | 96942-N3603 | AUTOMATIC | 7410 | 7607 | 1 | 96942-N3601 | ||
| 30 | ASSY-BOX LAMP | 96942-N4700 | AUTOMATIC | 7608 | 1 | Yes | Yes | 96942-N3603 | |
| 31 | ASSY-LAMP INDICATOR | 74985-N3400 | AUTOMATIC | 7409 | 1 | ||||
| 31 | ASSY-LAMP INDICATOR | 74985-N3403 | AUTOMATIC | 7410 | 7607 | 1 | 74985-N3400 | ||
| 31 | ASSY-LAMP INDICATOR | 74985-N4600 | AUTOMATIC | 7608 | 1 | Yes | Yes | 74985-N3403 | |
| 32 | MAS-SHIFT LEVER | 86773-N3600 | AUTOMATIC | 1 | |||||
| 33 | MASK-INDICATOR | 86775-E7900 | AUTOMATIC | 1 | |||||
| 34 | GUIDE-INDICATOR | 86771-E7900 | AUTOMATIC | 1 | |||||
| 35 | CLIP | 01551-00053 | AUTOMATIC | 1 | |||||
| 36 | ASSY-BRACKET | 96917-N3400 | AUTOMATIC | 7603 | 1 | ||||
| 36 | ASSY-BRACKET | 96917-N4200 | AUTOMATIC | 7604 | 1 | Yes | Yes | 96917-N3400 | |
| 37 | ASSY-BRACKET | 96918-N3401 | AUTOMATIC | 7409 | 1 | ||||
| 38 | ASSY-BRACKET | 96918-N3400 | AUTOMATIC | 7410 | 1 | 96918-N3401 | |||
| 39 | ASSY-BRACKET | 96919-N3400 | AUTOMATIC | 1 | |||||
| 40 | SCREW-TAPPING | 08530-42042 | AUTOMATIC | 2 | |||||
| 41 | SCREW-TAPPING | 08530-42542 | AUTOMATIC | 2 | |||||
| 42 | LOCK-CONSOLE LID "B" | 96968-N4700 | 7608 | 1 | |||||
| 43 | ASSY-LID FLOOR CONSO | 96961-N4700 | 7608 | 1 | |||||
| 44 | ASSY-HINGE LID | 96965-N4701 | 7608 | 1 | |||||
| 45 | LOCK-CONSOLE LID "A" | 96967-N4700 | 7608 | 1 | |||||
| 46 | SPRING-LID LOCK | 96966-N4600 | 7608 | 1 | |||||
| 47 | KNOB-CONSOLE LID | 96969-N4600 | 7608 | 1 | |||||
| 48 | GROMMET REAR DEF.SWI | 96926-N3400 | 2 |
