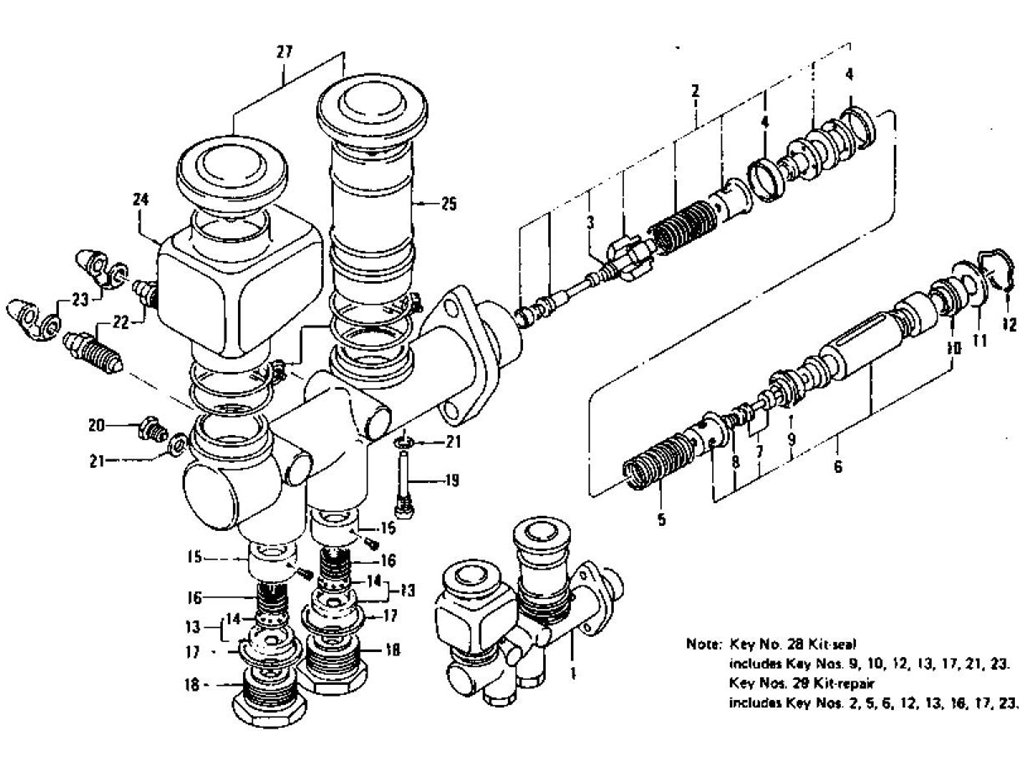

Brake Master Cylinder (Tandem) (To Aug.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CYL | 46010-E8701 | 7109 | 1 | No | No | 46010-E4602 | ||
| 1 | ASSY-CYL | 46010-E8702 | 7109 | 1 | Yes | Yes | 46010-E8701 | ||
| 1 | ASSY-CYLINDER BRAKE | 46010-E4601 | 1 | ||||||
| 1 | ASSY-CYLINDER BRAKE | 46010-E4602 | 7108 | 1 | Yes | Yes | 46010-E4601 | ||
| 2 | ASSY-PISTON | 46063-E4610 | 1 | ||||||
| 3 | SPRING-VALVE | 46056-73010 | 1 | ||||||
| 4 | CUP-PISTON | 46078-10611 | 2 | ||||||
| 5 | SPRING-PISTON | 46075-73010 | 1 | ||||||
| 6 | ASSY-PISTON | 46063-E0211 | 1 | ||||||
| 7 | ASSY-VALVE INLET | 46073-10610 | 1 | ||||||
| 8 | SPRING-VALVE | 46056-73010 | 1 | ||||||
| 9 | CUP-PISTON (S) | 46068-10611 | 1 | ||||||
| 10 | CUP-PISTON (P) | 46078-10611 | 1 | ||||||
| 11 | STOPPER | 46072-73010 | 1 | ||||||
| 12 | RING-STOPPER | 46071-27260 | 1 | ||||||
| 13 | ASSY-VALVE | 46050-73410 | 2 | ||||||
| 14 | RETAINER | 46057-73410 | 2 | ||||||
| 15 | SEAT-VALVE | 46059-69010 | 2 | ||||||
| 16 | SPRING-VALVE | 46027-73010 | 2 | ||||||
| 16 | SPRING-VALVE | 46027-A6900 | 2 | Yes | Yes | 46027-73010 | |||
| 16 | SPRING-VALVE | 46027-B5022 | 2 | Yes | Yes | 46027-A6900 | |||
| 17 | PACKING | 46036-30100 | 2 | ||||||
| 19 | SCREW-STOPPER | 46070-69010 | 1 | ||||||
| 20 | SCREW-STOPPER | 46070-28511 | 1 | ||||||
| 21 | PACKING | 46079-10610 | 2 | ||||||
| 22 | SCREW-BLEEDER | 41128-21011 | 2 | ||||||
| 22 | SCREW-BLEEDER | 41128-B5012 | 2 | Yes | Yes | 41128-21011 | |||
| 23 | CAP-BLEEDER | 41129-30001 | 2 | ||||||
| 23 | CAP-BLEEDER | 41129-A2410 | 2 | Yes | Yes | 41129-30001 | |||
| 24 | RESERVOIR-OIL BRAKE | 46090-25510 | 1 | ||||||
| 25 | RESERVOIR-OIL BRAKE | 46091-E0310 | 1 | ||||||
| 26 | ASSY-BAND OIL RESERV | 46016-10610 | 2 | ||||||
| 27 | CAP-OIL RESERVOIR | 46020-10611 | 2 | ||||||
| 28 | CUP KIT TANDEM MASTE | 46012-79225 | 1 | Yes | Yes | 46010-E6027 | |||
| 28 | KIT-A REPAIR FOR BRA | 46010-79227 | 1 | ||||||
| 28 | KIT-A REPAIR FOR BRA | 46010-E6027 | 1 | Yes | Yes | 46010-79227 | |||
| 29 | KIT-B REPAIR FOR BRA | 46010-E4628 | 1 | ||||||
| 29 | PISTON KIT TANDEM MA | 46011-E4626 | 1 | Yes | Yes | 46010-E4628 |
