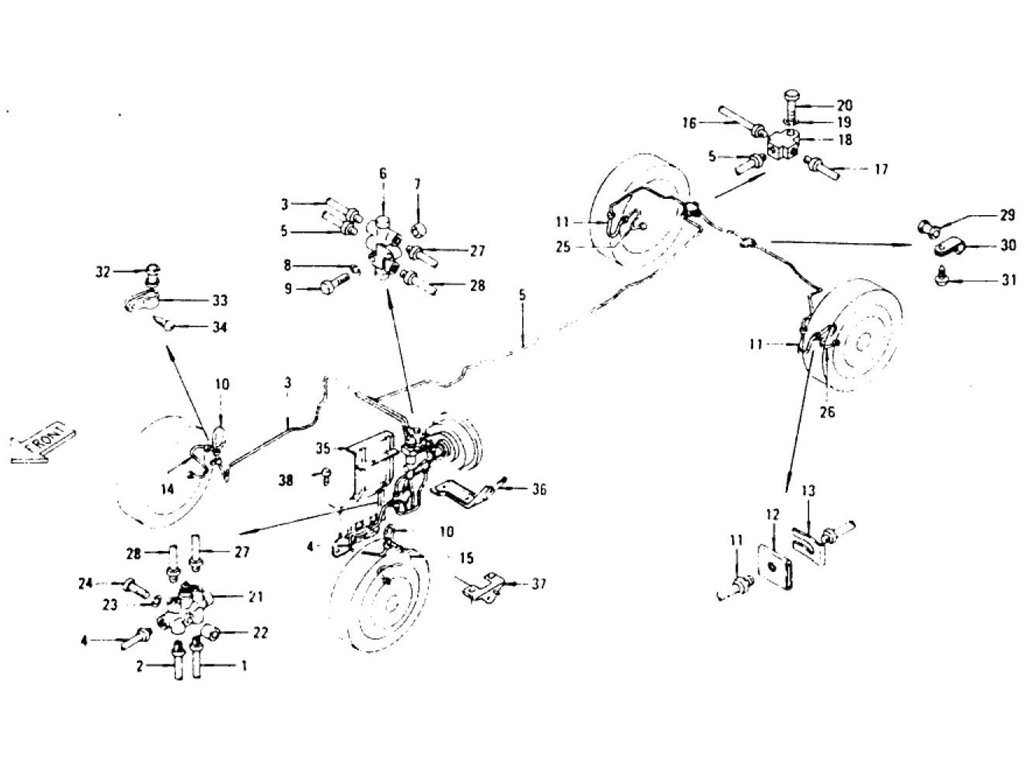

Brake Piping (From Jul.-'72)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TUBE BRAKE MAST | 46221-N3300 | 7207 | 7301 | 1 | No | No | 46221-N3400 | |
| 1 | ASSY-TUBE BRAKE MAST | 46221-N3305 | 7302 | 7307 | 1 | Yes | Yes | 46221-N3300 | |
| 1 | ASSY-TUBE BRAKE MAST | 46221-N3600 | 7308 | 1 | No | No | 46221-N3305 | ||
| 1 | ASSY-TUBE BRAKE MAST | 46221-N7605 | CAL | 1 | Yes | Yes | 46221-N7600 | ||
| 1 | ASSY-TUBE BRAKE MAST | 46221-N7600 | CAL | 7708 | 1 | No | No | 46221-N3600 | |
| 1 | ASSY-TUBE BRAKE MAST | 46221-N4200 | FED | 7701 | 7707 | 1 | Yes | Yes | 46221-N3600 |
| 1 | ASSY-TUBE BRAKE MAST | 46221-N7605 | FED & CAN | 7708 | 1 | No | No | 46221-N4200 | |
| 2 | ASSY-TUBE BRAKE MAST | 46241-N4200 | 1 | Yes | Yes | 46241-N3600 | |||
| 2 | ASSY-TUBE BRAKE MAST | 46241-N3300 | 7207 | 7301 | 1 | ||||
| 2 | ASSY-TUBE BRAKE MAST | 46241-N3305 | 7302 | 7307 | 1 | Yes | Yes | 46241-N3300 | |
| 2 | ASSY-TUBE BRAKE MAST | 46241-N3600 | 7308 | 1 | No | No | 46241-N3305 | ||
| 2 | ASSY-TUBE BRAKE MAST | 46241-N7600 | CAL | 7708 | 1 | No | No | 46241-N4200 | |
| 2 | ASSY-TUBE BRAKE MAST | 46241-N7605 | CAL | 7708 | 1 | Yes | Yes | 46241-N7600 | |
| 2 | ASSY-TUBE BRAKE MAST | 46241-N4200 | FED | 7701 | 1 | Yes | Yes | 46241-N3600 | |
| 2 | ASSY-TUBE BRAKE MAST | 46241-N7605 | FED & CAN | 7708 | 1 | No | No | 46241-N3600 | |
| 3 | ASSY-TUBE NP VALVE T | 46243-N4700 | 7608 | 0 | YN462-43N42 | ||||
| 3 | ASSY-TUBE NP VALVE T | 46243-N3300 | 7207 | 7301 | 1 | ||||
| 3 | ASSY-TUBE NP VALVE T | 46243-N3600 | 7308 | 7408 | 1 | No | No | 46243-N3305 | |
| 3 | ASSY-TUBE NP VALVE T | 46243-N4200 | 7409 | 7607 | 1 | No | No | 46243-N3600 | |
| 3 | ASSY-TUBE NP VALVE T | 46243-N4701 | FED | 7701 | 1 | Yes | Yes | 46243-N4700 | |
| 3 | ASSY-TUBE VALVE TO F | 46243-N3305 | 7202 | 7207 | 1 | Yes | Yes | 46243-N3300 | |
| 4 | ASSY-TUBE F/I TO FRO | 46245-E8800 | 7207 | 7301 | 1 | ||||
| 4 | ASSY-TUBE F/I TO FRO | 46245-E8805 | 7302 | 7307 | 1 | Yes | Yes | 46245-E8800 | |
| 4 | ASSY-TUBE F/I TO FRO | 46245-N3600 | 7308 | 7408 | 1 | No | No | 46245-E8805 | |
| 4 | ASSY-TUBE F/I TO FRO | 46245-N4200 | 7409 | 7707 | 1 | No | No | 46245-N3600 | |
| 4 | ASSY-TUBE F/I TO FRO | 46245-N7605 | CAL | 1 | Yes | Yes | 46245-N7600 | ||
| 4 | ASSY-TUBE F/I TO FRO | 46245-N7600 | CAL | 7708 | 1 | No | No | 46245-N4200 | |
| 4 | ASSY-TUBE F/I TO FRO | 46245-N4201 | FED | 7701 | 7707 | 1 | Yes | Yes | 46245-N4200 |
| 4 | ASSY-TUBE F/I TO FRO | 46245-N7605 | FED & CANADA | 7708 | 1 | No | No | 46245-N4201 | |
| 5 | ASSY-TUBE NP VALVE T | 46223-N3300 | 7207 | 7301 | 1 | ||||
| 5 | ASSY-TUBE NP VALVE T | 46223-N3305 | 2 SEATER | 7302 | 7408 | 1 | Yes | Yes | 46223-N3300 |
| 5 | ASSY-TUBE NP VALVE T | 46223-N4200 | 2 SEATER | 7409 | 7607 | 1 | No | No | 46223-N3305 |
| 5 | ASSY-TUBE NP VALVE T | 46223-N4704 | 2 SEATER USA | 1 | Yes | Yes | 46223-N4703 | ||
| 5 | ASSY-TUBE NP VALVE T | 46223-N4703 | 2 SEATER USA | 7608 | 1 | No | No | 46223-N4200 | |
| 5 | ASSY-TUBE NP VALVE T | 46223-N4100 | 2+2 SEATER | 7310 | 7408 | 1 | |||
| 5 | ASSY-TUBE NP VALVE T | 46223-N4220 | 2+2 SEATER | 7409 | 7607 | 1 | No | No | 46223-N4100 |
| 5 | ASSY-TUBE NP VALVE T | 46223-N4713 | 2+2 SEATER USA | 7608 | 1 | No | No | 46223-N4220 | |
| 6 | ASSY-NP VALVE 4 WAY | 46400-N3000 | 7207 | 1 | |||||
| 6 | ASSY-NP VALVE 4 WAY | 46400-N4200 | 7508 | 1 | No | No | 46400-N3000 | ||
| 6 | ASSY-NP VALVE 4 WAY | 46400-N3700 | 2+2 SEATER | 7310 | 1 | ||||
| 7 | SPACER-CONNECTOR BRA | 46257-21003 | 7408 | 1 | |||||
| 7 | SPACER-CONNECTOR BRA | 46257-N4200 | 7409 | 1 | |||||
| 8 | WASHER-LOCK MS | 08915-13610 | 1 | ||||||
| 9 | BOLT-HEX M6X1.0 | 08120-65010 | 7408 | 1 | |||||
| 9 | BOLT-HEX M6X1.0 | 08120-64510 | 7409 | 1 | No | No | 08120-65010 | ||
| 10 | ASSY-HOSE BRAKE FRON | 46202-89911 | 7408 | 2 | |||||
| 10 | ASSY-HOSE BRAKE FRON | 46212-89911 | 2 | Yes | Yes | 46202-89911 | |||
| 10 | ASSY-HOSE BRAKE FRON | 46203-N4500 | 7409 | 2 | No | No | 46202-89911 | ||
| 11 | ASSY-HOSE BRAKE REAR | 46202-89913 | 7408 | 2 | |||||
| 11 | ASSY-HOSE BRAKE REAR | 46202-N4500 | 7409 | 2 | Yes | Yes | 46202-89913 | ||
| 12 | PLATE-LOCK BRAKE HOS | 46205-61000 | 8 | ||||||
| 13 | SPRING-LOCK BRAKE HO | 46206-18000 | 7307 | 8 | |||||
| 13 | SPRING-LOCK BRAKE HO | 46206-M0200 | 7308 | 8 | No | No | 46206-18000 | ||
| 14 | ASSY-TUBE BRIDGE FRO | 41220-E8710 | 7408 | 1 | |||||
| 14 | ASSY-TUBE BRIDGE FRO | 41220-N3420 | 7409 | 1 | No | No | 41220-E8710 | ||
| 14 | ASSY-TUBE BRIDGE FRO | 41220-N4200 | FED | 7701 | 1 | Yes | Yes | 41220-N3420 | |
| 15 | ASSY-TUBE BRIDGE FRO | 41230-E8710 | 7408 | 1 | |||||
| 15 | ASSY-TUBE BRIDGE FRO | 41230-N3420 | 7409 | 1 | No | No | 41230-E8710 | ||
| 15 | ASSY-TUBE BRIDGE FRO | 41230-N4200 | FED | 7701 | 1 | Yes | Yes | 41230-N3420 | |
| 16 | ASSY-TUBE 3 WAY TO R | 46227-E8700 | 7301 | 1 | |||||
| 16 | ASSY-TUBE 3 WAY TO R | 46227-E8705 | 7302 | 7408 | 1 | Yes | Yes | 46227-E8700 | |
| 16 | ASSY-TUBE 3 WAY TO R | 46227-N4501 | 7409 | 1 | No | No | 46227-E8705 | ||
| 16 | ASSY-TUBE 3 WAY TO R | 46227-N4705 | FED | 7701 | 1 | Yes | Yes | 46227-N4700 | |
| 16 | ASSY-TUBE 3 WAY TO R | 46227-N4705 | USA | 1 | Yes | Yes | 46227-N4700 | ||
| 16 | ASSY-TUBE 3 WAY TO R | 46227-N4700 | USA | 7608 | 1 | No | No | 46227-N4501 | |
| 17 | ASSY-TUBE 3 WAY TO R | 46229-E8700 | 7301 | 1 | |||||
| 17 | ASSY-TUBE 3 WAY TO R | 46229-E8705 | 7302 | 7307 | 1 | Yes | Yes | 46229-E8700 | |
| 17 | ASSY-TUBE 3 WAY TO R | 46229-N3400 | 7308 | 7408 | 1 | No | No | 46229-E8705 | |
| 17 | ASSY-TUBE 3 WAY TO R | 46229-N4501 | 7409 | 1 | No | No | 46229-N3400 | ||
| 17 | ASSY-TUBE 3 WAY TO R | 46229-N4200 | FED | 7701 | 1 | Yes | Yes | 46229-N4501 | |
| 18 | CONENCTOR-3 WAY BRAK | 46313-68201 | 1 | ||||||
| 19 | WASHER-SPRING MB | 08915-13810 | 1 | ||||||
| 20 | BOLT-HEX M8X1.25 | 31153-49006 | 7307 | 1 | |||||
| 20 | BOLT-HEX WITH SPRING | 08110-82525 | 7308 | 1 | No | No | 31153-49006 | ||
| 21 | ASSY-SWITCH BRAKE IN | 46100-U5200 | 7307 | 1 | |||||
| 21 | ASSY-SWITCH BRAKE IN | 46100-U2000 | 7308 | 7408 | 1 | No | No | 46100-U5200 | |
| 21 | ASSY-SWITCH BRAKE IN | 46100-U5200 | 7409 | 1 | |||||
| 21 | ASSY-SWITCH BRAKE IN | 46100-N4200 | 7508 | 1 | No | No | 46100-U5200 | ||
| 22 | SPACER-CONNECTOR BRA | 46257-21003 | 1 | ||||||
| 23 | WASHER-LOCK M6 | 08915-13610 | 1 | ||||||
| 24 | BOLT-HEX M6X1.0 | 08120-64810 | 1 | ||||||
| 25 | ASSY-TUBE BRIDGE REA | 44220-E8701 | 7302 | 1 | |||||
| 25 | ASSY-TUBE BRIDGE REA | 44220-E8710 | 7303 | 7607 | 1 | Yes | Yes | 44220-E8701 | |
| 25 | ASSY-TUBE BRIDGE REA | 44220-N4601 | 7608 | 1 | No | No | 44220-E8710 | ||
| 25 | ASSY-TUBE BRIDGE REA | 44220-N4700 | FED | 7701 | 1 | Yes | Yes | 44220-N4601 | |
| 26 | ASSY-TUBE BRIDGE REA | 44230-E8701 | 7302 | 1 | |||||
| 26 | ASSY-TUBE BRIDGE REA | 44230-E8710 | 7303 | 7607 | 1 | Yes | Yes | 44230-E8701 | |
| 26 | ASSY-TUBE BRIDGE REA | 44230-N4601 | 7608 | 1 | No | No | 44230-E8710 | ||
| 26 | ASY-TUBE BRIDE REAR | 44230-N4700 | FED | 7701 | 1 | Yes | Yes | 44230-N4601 | |
| 27 | ASSY-TUBE F/I TO NP | 46222-N3300 | 7301 | 1 | |||||
| 27 | ASSY-TUBE F/I TO NP | 46222-N3305 | 7302 | 7408 | 1 | Yes | Yes | 46222-N3300 | |
| 27 | ASSY-TUBE F/I TO NP | 46222-N4200 | 7409 | 7707 | 1 | Yes | Yes | 46222-N3305 | |
| 27 | ASSY-TUBE F/I TO NP | 46222-N4201 | FED | 7701 | 7707 | 1 | Yes | Yes | 46222-N4200 |
| 28 | ASSY-TUBE F/I TO NP | 46242-N3300 | 7301 | 1 | |||||
| 28 | ASSY-TUBE F/I TO NP | 46242-N3305 | 7302 | 7408 | 1 | Yes | Yes | 46242-N3300 | |
| 28 | ASSY-TUBE F/I TO NP | 46242-N4200 | 7409 | 1 | Yes | Yes | 46242-N3305 | ||
| 28 | ASSY-TUBE F/I TO NP | 46242-N4201 | 7608 | 1 | Yes | Yes | 46242-N4200 | ||
| 28 | ASSY-TUBE F/I TO NP | 46242-N7605 | CAL | 1 | Yes | Yes | 46242-N7600 | ||
| 28 | ASSY-TUBE F/I TO NP | 46242-N7600 | CAL | 7708 | 1 | Yes | Yes | 44230-N4601 | |
| 28 | ASSY-TUBE F/I TO NP | 46242-N4201 | FED | 7701 | 7707 | 1 | Yes | Yes | 46242-N4200 |
| 29 | RUBBER-TUBE CLAMP | 46364-E4700 | AUTOMATIC | 7408 | 2 | ||||
| 29 | RUBBER-TUBE CLAMP | 17568-N4500 | AUTOMATIC | 7409 | 2 | No | No | 46364-E4700 | |
| 29 | RUBBER-TUBE CLAMP | 46362-E4100 | MAMUAL | 7408 | 2 | ||||
| 29 | RUBBER-TUBE CLAMP | 17567-N4500 | MANUAL | 7409 | 2 | No | No | 46362-E4100 | |
| 30 | CLAMP-TUBE UPPER | 46353-E4100 | 7408 | 2 | |||||
| 30 | CLAMP-TUBE UPPER | 17552-N4500 | 7409 | 7507 | 2 | ||||
| 30 | CLAMP-TUBE UPPER | 17555-N4500 | 7508 | 2 | |||||
| 31 | SCREW-HEX WITH S/WAS | 08360-41214 | 7408 | 2 | |||||
| 31 | SCREW-HEX WITH S/WAS | 08360-61414 | 7409 | 2 | |||||
| 32 | RUBBER-TUBE CLAMP | 46375-N3320 | AUTOMATIC | 7408 | 1 | ||||
| 32 | RUBBER-TUBE CLAMP | 46375-N3321 | AUTOMATIC | 7409 | 1 | ||||
| 32 | RUBBER-TUBE CLAMP | 46371-E4600 | MANUAL | 7408 | 1 | ||||
| 32 | RUBBER-TUBE CLAMP | 46375-N3320 | MANUAL | 7409 | 1 | ||||
| 33 | CLAMP-TUBE UPPER | 46356-E4600 | 7408 | 1 | |||||
| 33 | CLAMP-TUBE UPPER | 46356-E4200 | 7409 | 1 | |||||
| 33 | CLAMP-TUBE UPPER | 46356-N4500 | 7409 | 1 | |||||
| 34 | SCREW-HEX WITH S/WAS | 08360-41214 | 7408 | 1 | |||||
| 34 | SCREW-HEX WITH S/WAS | 08360-61414 | 7409 | 1 | |||||
| 35 | PLATE HEAT SHIELD | 46390-N4700 | FED | 7612 | 1 | ||||
| 36 | BRACKET HEAT SHIELD | 46393-N4700 | 7612 | 1 | |||||
| 37 | BRACKET HEAT SHIELD | 46395-N4700 | 7612 | 1 | |||||
| 38 | SCREW | 08363-61626 | 7612 | 2 |
