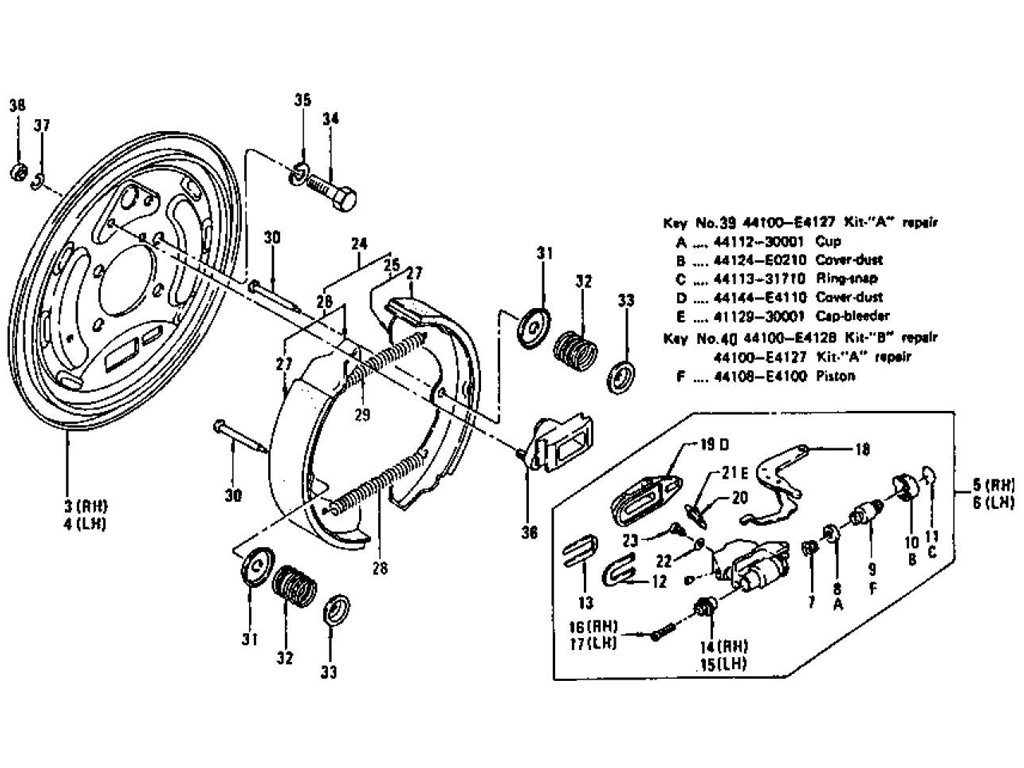

Rear Brake (Drum Brake) (To Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-BRAKE REAR RH | 44000-E8700 | 7207 | 7209 | 1 | 44000-E4100 | |||
| 1 | ASSY-BRAKE REAR RH | 44000-N3001 | 7210 | 1 | Yes | Yes | 44000-E8700 | ||
| 1 | ASSY-BRAKE REEAR RH | 44000-E4100 | 7206 | 1 | |||||
| 2 | ASSY-BRAKE REAR LH | 44010-E4100 | 7206 | 1 | |||||
| 2 | ASSY-BRAKE REAR LH | 44010-E8700 | 7207 | 7209 | 1 | 44010-E4100 | |||
| 2 | ASSY-BRAKE REAR LH | 44010-N3001 | 7210 | 1 | Yes | Yes | 44010-E8700 | ||
| 3 | ASSY-DISC REAR BRAKE | 44020-E4100 | 7206 | 1 | |||||
| 3 | ASSY-DISC REAR BRAKE | 44020-E8700 | 7207 | 1 | 44020-E4100 | ||||
| 4 | ASSY-DISC REAR BRAKE | 44030-E4100 | 7206 | 1 | |||||
| 4 | ASSY-DISC REAR BRAKE | 44030-E8700 | 7207 | 1 | 44030-E4100 | ||||
| 5 | ASSY-CYLINDER REAR W | 44100-E4100 | 7206 | 1 | |||||
| 5 | ASSY-CYLINDER REAR W | 44100-E8700 | 7207 | 7209 | 1 | 44100-E4100 | |||
| 5 | ASSY-CYLINDER REAR W | 44100-N3001 | 7210 | 1 | Yes | Yes | 44100-E8700 | ||
| 6 | ASSY-CYLINDER REAR W | 44101-E4100 | 7206 | 1 | |||||
| 6 | ASSY-CYLINDER REAR W | 44101-E8700 | 7207 | 7209 | 1 | 44101-E4100 | |||
| 6 | ASSY-CYLINDER REAR W | 44101-N3001 | 7210 | 1 | Yes | Yes | 44101-E8700 | ||
| 7 | SPIRNG | 44125-68200 | 1 | ||||||
| 8 | CUP | 44112-30001 | 1 | ||||||
| 8 | CUP | 44112-U4810 | 1 | Yes | Yes | 44112-30001 | |||
| 9 | PISTON | 44108-E4110 | 1 | ||||||
| 9 | PISTON | 44108-E8700 | 7206 | 1 | Yes | Yes | 44108-E4110 | ||
| 10 | COVER-DUST | 44124-E0210 | 1 | ||||||
| 10 | COVER-DUST | 44144-U4010 | 1 | Yes | Yes | 44124-E0210 | |||
| 11 | PING-SNAP | 44113-U4010 | 7207 | 7209 | 1 | Yes | Yes | 44113-31710 | |
| 11 | RING-SNAP | 44113-31710 | 1 | ||||||
| 12 | PLATE-ADJUSTER | 44141-E0210 | 1 | ||||||
| 13 | PLATE-LOCK | 44149-E0210 | 1 | ||||||
| 14 | ADJUSTER RH | 44152-E0210 | 1 | ||||||
| 15 | ADJUSTER LH | 44153-E0210 | 1 | ||||||
| 16 | SCREW-ADJUSTER RH | 44154-E4110 | 1 | ||||||
| 17 | SCREW-ADJUSTER LH | 44155-E4110 | 1 | ||||||
| 18 | LEVER LH | 44119-E4110 | 1 | ||||||
| 18 | LEVER RH | 44118-E4110 | 1 | ||||||
| 19 | COVER-DUST | 44144-E0210 | 1 | Yes | Yes | 44144-E4110 | |||
| 19 | COVER-DUST | 44144-E4110 | 1 | ||||||
| 20 | SCREW-BLEEDER | 41128-21011 | 1 | Yes | Yes | 44128-E4110 | |||
| 20 | SCREW-BLEEDER | 41128-B5012 | 1 | Yes | Yes | 41128-21011 | |||
| 20 | SCREW-BLEEDER | 44128-E4110 | 1 | ||||||
| 21 | CAP-BLEEDER | 41129-30001 | 1 | ||||||
| 21 | CAP-BLEEDER | 41129-A2410 | 1 | Yes | Yes | 41129-30001 | |||
| 22 | PACKING | 46079-10610 | 1 | ||||||
| 23 | STOPPER | 46070-28511 | 1 | ||||||
| 24 | SET-SHOE REAR | 44060-E4125 | 1 | ||||||
| 25 | ASSY-SHOE REAR BRAKE | 44060-E4100 | 2 | ||||||
| 26 | ASSY-SHOE REAR BRAKE | 44070-E4100 | 2 | ||||||
| 27 | LINING-BRAKE | 41066-21005 | 4 | ||||||
| 28 | SPRING-RETURN REAR B | 44090-E4100 | 2 | ||||||
| 29 | SPRING-RETURN REAR B | 44091-21010 | 2 | ||||||
| 30 | PIN-ANTI SHOE RATTLE | 44081-73000 | 4 | ||||||
| 31 | SET-SPRING ANTI SHOE | 44082-32200 | 7802 | 4 | |||||
| 31 | SET-SPRING ANTI SHOE | 44082-U9200 | 7803 | 4 | Yes | Yes | 44082-32200 | ||
| 32 | SPRING-ANTI SHOE RAT | 44083-21010 | 4 | ||||||
| 33 | RETAINER-SPRING ANTI | 44084-32201 | 7802 | 4 | |||||
| 33 | RETAINER-SPRING ANTI | 44084-U9200 | 7803 | 4 | Yes | Yes | 44084-32201 | ||
| 34 | BOLT-HEX M10X1.25 | 08124-01610 | 7307 | 8 | |||||
| 34 | BOLT-HEX M10X1.25 | 08134-01610 | 2 SEATER | 7308 | 8 | No | No | 08124-01610 | |
| 35 | WASHER-LOCK M10 | 08915-14010 | 7307 | 8 | |||||
| 35 | WASHER-LOCK M10 | 08915-24010 | 2 SEATER | 7308 | 8 | No | No | 08915-14010 | |
| 36 | ASSY-BLOCK ANCHOR | 44200-E4100 | 2 | ||||||
| 37 | WASHER-LOCK M8 | 08915-13810 | 4 | ||||||
| 38 | NUT-HEX M8X1.25 | 08911-10810 | 4 | ||||||
| 39 | KIT-A REPAIR FOR REA | 44100-E4127 | 1 | ||||||
| 39 | KIT-A REPAIR FOR REA | D4100-E4126 | 1 | Yes | Yes | 44100-E4127 | |||
| 40 | KIT-B REPAIR FOR REA | 44100-E4128 | 1 | ||||||
| 40 | KIT-B REPAIR FOR REA | D4100-E4126 | 1 | Yes | Yes | 44100-E4128 | |||
| 40 | KIT-REPAIR FOR REAR | 44100-N3025 | 1 | ||||||
| 40 | KIT-REPAIR FOR REAR | D4100-U4826 | 1 | Yes | Yes | 44100-N3025 |
