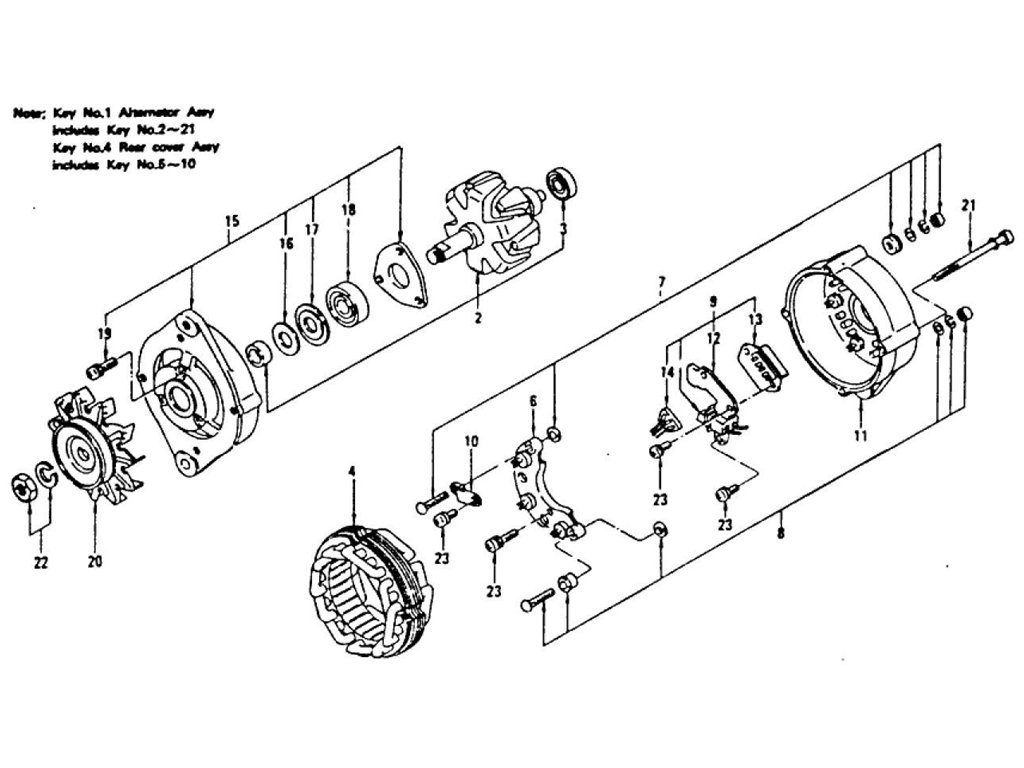

Alternator (12V-60A) Hitachi
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ALTERNATOR ASSY(HITA | 23100-P3006 | 7708 | 1 | |||||
| 2 | ROTOR ASSY | 23108-P3005 | 7708 | 1 | |||||
| 3 | BALL BEARING | 23120-14801 | 7708 | 1 | |||||
| 4 | STATER ASSY | 23102-P3005 | 7708 | 1 | |||||
| 5 | REAR COVER ASSY | 23127-P3005 | 7708 | 1 | |||||
| 6 | SR HOLDER ASSY | 23230-U0705 | 7708 | 1 | |||||
| 7 | TERMINAL BOLT ASSY | 23156-U0700 | 7708 | 1 | |||||
| 8 | TERMINAL BOLT ASSY | 23158-P3000 | 7708 | 1 | |||||
| 9 | BRUSH REGULATOR ASSY | 23133-P3006 | 1 | Yes | Yes | 23133-P3005 | |||
| 9 | BRUSH REGULATOR ASSY | 23133-P3005 | 7708 | 1 | |||||
| 10 | PLATE TERMINAL | 23165-P3005 | 7708 | 1 | |||||
| 11 | REAR COVER | 23183-P3005 | 7708 | 1 | |||||
| 12 | BRUSH ASSY | 23135-P3005 | 7708 | 1 | |||||
| 13 | IC REGULATOR ASSY | 23215-B9800 | 1 | Yes | Yes | 23215-P2500 | |||
| 13 | IC REGULATOR ASSY | 23215-P2500 | 7708 | 1 | |||||
| 14 | DIODE (SUB) | 23245-P3005 | 7708 | 3 | |||||
| 15 | FRONT COVER ASSY | 23118-U0705 | 7708 | 1 | |||||
| 16 | PACKING | 23122-E3200 | 7708 | 1 | |||||
| 17 | PACKING RETAINER | 23121-E3200 | 7708 | 1 | |||||
| 18 | BALL BEARING | 23120-P4500 | 1 | Yes | Yes | 23120-65004 | |||
| 18 | BALL BEARING | 23120-65004 | 7708 | 1 | |||||
| 19 | SCREW M5X0.8X21 | 23180-E6601 | 7708 | 3 | |||||
| 20 | PULLEY ASSY | 23150-P4501 | 1 | Yes | Yes | 23150-P4500 | |||
| 20 | PULLEY ASSY | 23150-P4500 | 7708 | 1 | |||||
| 21 | THROUGH BOLT | 23131-U0705 | 7708 | 4 | |||||
| 22 | PULLEY NUT ASSY | 23153-P4500 | 1 | Yes | Yes | 23153-U5800 | |||
| 22 | PULLEY NUT ASSY | 23153-U5800 | 7708 | 1 | |||||
| 23 | SCREW KIT | 23200-E3400 | 7708 | 1 |
