Search Item:Key: Part Name: Part Number:

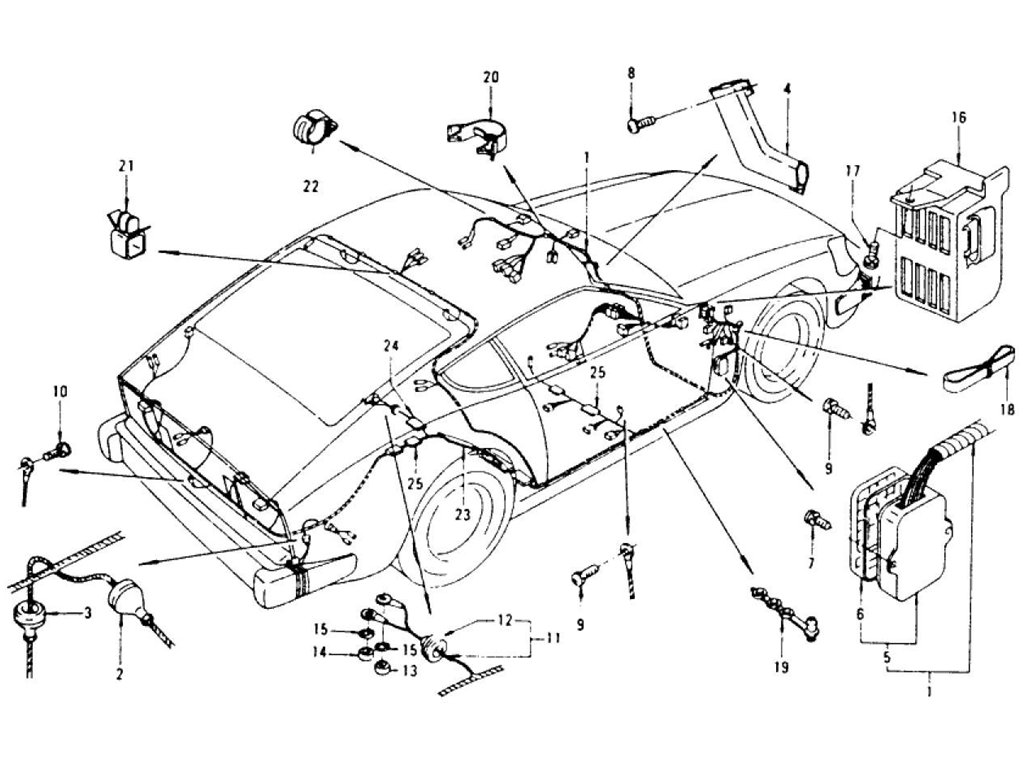

Wiring (Dash & Body) (From Aug.'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HARNESS DASH | 24019-N4800 | CAL 2 SEATER | 7608 | 7707 | 1 | |||
| 1 | HARNESS DASH | 24019-N7700 | CAL 2 SEATER | 7708 | 1 | No | No | 24019-N4800 | |
| 1 | HARNESS DASH | 24019-N4801 | CAL 2+2 SEATER | 7608 | 7707 | 1 | |||
| 1 | HARNESS DASH | 24019-N7701 | CAL 2+2 SEATER | 7708 | 1 | No | No | 24019-N4801 | |
| 1 | HARNESS DASH | 24019-N4700 | FED 2 SEATER | 7608 | 7707 | 1 | |||
| 1 | HARNESS DASH | 24019-N7600 | FED 2 SEATER | 7708 | 1 | No | No | 24019-N4700 | |
| 1 | HARNESS DASH | 24019-N4701 | FED 2+2 SEATER | 7608 | 7707 | 1 | |||
| 1 | HARNESS DASH | 24019-N7601 | FED 2+2 SEATER | 7708 | 1 | No | No | 24019-N4701 | |
| 2 | GROMMET | 01651-00391 | 7608 | 2 | |||||
| 3 | GROMMET | 24250-N4700 | 7608 | 2 | |||||
| 4 | PROTECTOR-HARNESS | 24225-N4700 | 7608 | 1 | |||||
| 5 | FUSE BLOCK | 25410-N4700 | 7608 | 1 | |||||
| 6 | COVER FUSE BLOCK | 25420-N4700 | 7608 | 1 | |||||
| 7 | SCREW MACHINE | 08363-62098 | 7608 | 2 | |||||
| 8 | SCREW MACHINE | 08310-61626 | 7608 | 3 | |||||
| 9 | SCREW MACHINE | 08360-51226 | 7608 | 2 | |||||
| 10 | SCREW MACHINE | 08360-61226 | 7608 | 2 | |||||
| 11 | HARNESS SUB | 24015-N4700 | 7608 | 1 | |||||
| 12 | GROMMET | 01651-00391 | 7608 | 1 | |||||
| 13 | NUT HEX M4 | 01211-00131 | 7608 | 1 | |||||
| 14 | NUT HEX M5 | 01211-00121 | 7608 | 1 | |||||
| 15 | WASHER LOCK | 01321-00041 | 7608 | 2 | |||||
| 16 | BLOCK JUNCTION | 24220-N4600 | 7608 | 1 | |||||
| 17 | SCREW MACHINE | 08310-61626 | 7608 | 1 | |||||
| 18 | CLIP BAND | 24205-28500 | 7608 | 2 | Yes | Yes | 24025-28500 | ||
| 18 | CLIP BANK | 24025-28500 | 7608 | 2 | |||||
| 19 | CLIP | 01552-00251 | 2 SEATER | 7608 | 9 | ||||
| 19 | CLIP | 01552-00251 | 2+2 SEATER | 7608 | 10 | ||||
| 20 | CLIP | 24210-N4701 | 7608 | 1 | |||||
| 21 | CLIP | 01552-00051 | 2 SEATER | 7608 | 5 | ||||
| 21 | CLIP | 01552-00051 | 2+2 SEATER | 7608 | 4 | ||||
| 22 | CLIP | 01552-00081 | 7608 | 2 | |||||
| 23 | PROTECTOR FLAT WIRE | 24271-N4700 | 2+2 SEATER | 7608 | 2 | ||||
| 24 | PROTECTOR FLAT WIRE | 24271-H6600 | 2 SEATER | 7608 | 1 | ||||
| 24 | PROTECTOR FLAT WIRE | 24271-H6600 | 2+2 SEATER | 7608 | 2 | ||||
| 25 | PROTECTOR FLAT WIRE | 24271-N1300 | 2 SEATER | 7608 | 10 | ||||
| 25 | PROTECTOR FLAT WIRE | 24271-N1300 | 2+2 SEATER | 7608 | 5 |
