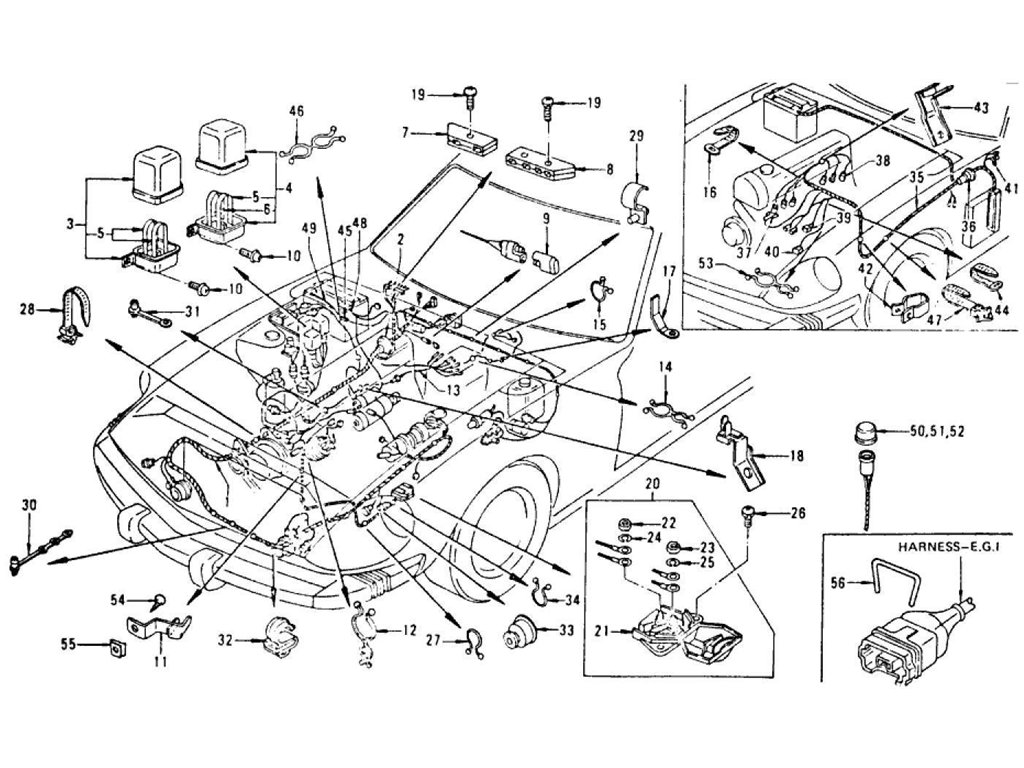

Wiring (Engine Room) (From Aug.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HARNESS-ENGINE ROOM | 24012-N4801 | AUTOMATIC | 7608 | 7707 | 1 | |||
| 1 | HARNESS-ENGINE ROOM | 24012-N7601 | AUTOMATIC | 7708 | 7802 | 1 | No | No | 24012-N4801 |
| 1 | HARNESS-ENGINE ROOM | 24012-N7603 | AUTOMATIC | 7803 | 1 | No | No | 24012-N7601 | |
| 1 | HARNESS-ENGINE ROOM | 24012-N4800 | MANUAL | 7608 | 7707 | 1 | |||
| 1 | HARNESS-ENGINE ROOM | 24012-N7600 | MANUAL | 7708 | 7802 | 1 | No | No | 24012-N4800 |
| 1 | HARNESS-ENGINE ROOM | 24012-N7602 | MANUAL | 7803 | 1 | No | No | 24012-N7600 | |
| 2 | GROMMET | 24250-N4500 | 7608 | 1 | |||||
| 3 | CASE-FUSIBLE FRONT | 24020-N4700 | 7608 | 1 | |||||
| 4 | CASE-FUSIBLE REAR | 24020-N4701 | 7608 | 1 | |||||
| 5 | FUSIBLE LINK-1.25 | 24161-A0100 | 7608 | 1 | |||||
| 6 | FUSIBLE LINK-0.3 | 24161-N4200 | 7608 | 3 | |||||
| 7 | CLAMP | 24134-U6700 | 7608 | 1 | |||||
| 8 | CLAMP | 24134-U6710 | 7608 | 1 | |||||
| 9 | ASSY-RESISTOR | 24130-U6700 | 7608 | 1 | |||||
| 10 | SCREW | 25234-N4400 | 7608 | 4 | |||||
| 11 | CLIP | 24210-N4305 | 7608 | 2 | |||||
| 12 | CLIP | 24220-E4101 | 7608 | 1 | |||||
| 13 | HARNESS-SUB | 24074-N4700 | AUTOMATIC | 7608 | 1 | ||||
| 14 | CLIP | 24220-B0701 | AUTOMATIC | 7608 | 1 | ||||
| 15 | CLIP | 16290-K0500 | AUTOMATIC | 7608 | 1 | ||||
| 16 | CLIP | 24216-S3000 | 7608 | 2 | Yes | Yes | 24220-89963 | ||
| 16 | CLIP | 24220-89963 | 7608 | 2 | |||||
| 17 | CLIP | 24210-89932 | AUTOMATIC | 7608 | 1 | ||||
| 18 | CLIP | 24380-N4600 | 7608 | 1 | |||||
| 19 | SCREW-HEX | 08360-61226 | 7608 | 3 | |||||
| 20 | BLOCK TERMINAL | 24350-89901 | 7608 | 1 | |||||
| 20 | BLOCK TERMINAL | 24350-89903 | ML | 1 | Yes | Yes | |||
| 21 | BASE TERMINAL BLOCK | 24351-89901 | 7608 | 1 | |||||
| 22 | NUT HEX-M5 | 01211-00121 | 7608 | 1 | |||||
| 23 | NUT HEX M6 | 01211-00111 | 7608 | 1 | |||||
| 24 | WASHER LOCK-M5 | 01321-00041 | 7608 | 1 | |||||
| 25 | WASHER LOCK M6 | 01321-00051 | 7608 | 1 | |||||
| 26 | SCREW MACHINE | 08310-51426 | 7608 | 2 | |||||
| 27 | PURSE LOCK | 16290-K0500 | 7608 | 1 | |||||
| 28 | CLIP | 24210-N4600 | 7608 | 7 | |||||
| 29 | CLIP | 24220-89998 | 7608 | 6 | |||||
| 30 | CLIP | 24220-89937 | 7608 | 13 | |||||
| 30 | CLIP | 24220-S5000 | 7608 | 13 | Yes | Yes | 24220-89937 | ||
| 31 | CLIP | 24220-89964 | CAL | 7608 | 1 | ||||
| 32 | CLIP | 01552-00081 | 7608 | 4 | |||||
| 33 | CAP CHECK CONNECTOR | 24250-U6700 | 7608 | 1 | |||||
| 34 | PURSE LOCK | 24220-89985 | 7608 | 1 | |||||
| 35 | HARNESS E.G.I. | 24011-N4700 | CAL | 7608 | 7707 | 1 | |||
| 35 | HARNESS E.G.I. | 24011-N7700 | CAL | 7708 | 1 | No | No | 24011-N4700 | |
| 35 | HARNESS E.G.I. | 24011-N4701 | FED | 7608 | 7707 | 1 | |||
| 35 | HARNESS E.G.I. | 24011-N7600 | FED | 7708 | 1 | No | No | 24011-N4701 | |
| 36 | GROMMET | 01651-00163 | 7608 | 1 | |||||
| 37 | HARNESS SUB | 24079-N4203 | 7608 | 7701 | 1 | ||||
| 37 | HARNESS SUB | 24079-U8700 | 7608 | 1 | Yes | Yes | 24079-N4203 | ||
| 38 | ASSY CONNECTOR 2 POL | B4340-N4201 | 7608 | 6 | |||||
| 39 | ASSY CONNECTOR 3 POL | B4340-N4205 | 7608 | 1 | |||||
| 40 | ASSY CONNECTOR 7 POL | B4340-N4206 | 7608 | 1 | |||||
| 41 | TERMINAL RELAY | 24342-N4200 | 7608 | 2 | |||||
| 42 | CLIP | 24210-N4205 | 7608 | 1 | |||||
| 43 | CLIP E.G.I. HARNESS | 24210-N4206 | 7608 | 1 | |||||
| 44 | CLIP BAND | 01552-00411 | 2 | Yes | Yes | 14896-25601 | |||
| 44 | CLIP BAND | 14896-25601 | 7608 | 2 | |||||
| 45 | FUSIBLE LINK 0.5 | 24022-N4200 | 7608 | 7707 | 1 | ||||
| 45 | FUSIBLE LINK 0.5 | 24022-N7600 | 7708 | 1 | No | No | 24022-U8700 | ||
| 45 | FUSIBLE LINK 0.5 | 24022-U8700 | 7708 | 1 | No | No | 24022-N4200 | ||
| 46 | CLIP 8X8 | 22472-G0302 | 7608 | 3 | |||||
| 47 | CLIP | 24210-N4600 | 7608 | 1 | |||||
| 48 | CABLE BATTERY | 24080-N4700 | 7608 | 1 | |||||
| 48 | CABLE BATTERY | 24080-N7600 | 7708 | 1 | No | No | 24080-N4800 | ||
| 48 | CABLE BATTERY | 24080-N4800 | CANADA OP USA | 7702 | 7707 | 1 | Yes | Yes | 24080-N4700 |
| 49 | CABLE BATTERY | 24110-N7603 | 7708 | 1 | |||||
| 49 | CABLE BATTERY | 24110-N4201 | AUTOMATIC | 7608 | 7707 | 1 | |||
| 49 | CABLE BATTERY | 24110-N4800 | CANADA OP USA | 7702 | 7707 | 1 | |||
| 49 | CABLE BATTERY | 24110-N4200 | MANUAL | 7608 | 7707 | 1 | |||
| 50 | COVER CONNECTOR | 24037-N4200 | 7608 | 1 | |||||
| 51 | COVER CONNECTOR | 24038-N4200 | 7608 | 1 | |||||
| 52 | COVER CONNECTOR | 24039-N4200 | 7608 | 1 | |||||
| 53 | CLIP | 24220-E4101 | 7608 | 1 | |||||
| 53 | CLIP | 14908-B5000 | CANADA OP USA | 7708 | 2 | ||||
| 53 | CLIP | 24220-89993 | CANADA OP USA | 7708 | 1 | ||||
| 54 | SCREW TAPPING | 08513-61623 | 7608 | 2 | |||||
| 55 | NUT SPRING | 01241-00061 | 7608 | 2 | |||||
| 56 | SPRING HARNESS EGI | B4111-U7600 | FOR SERVICE | 6 |
