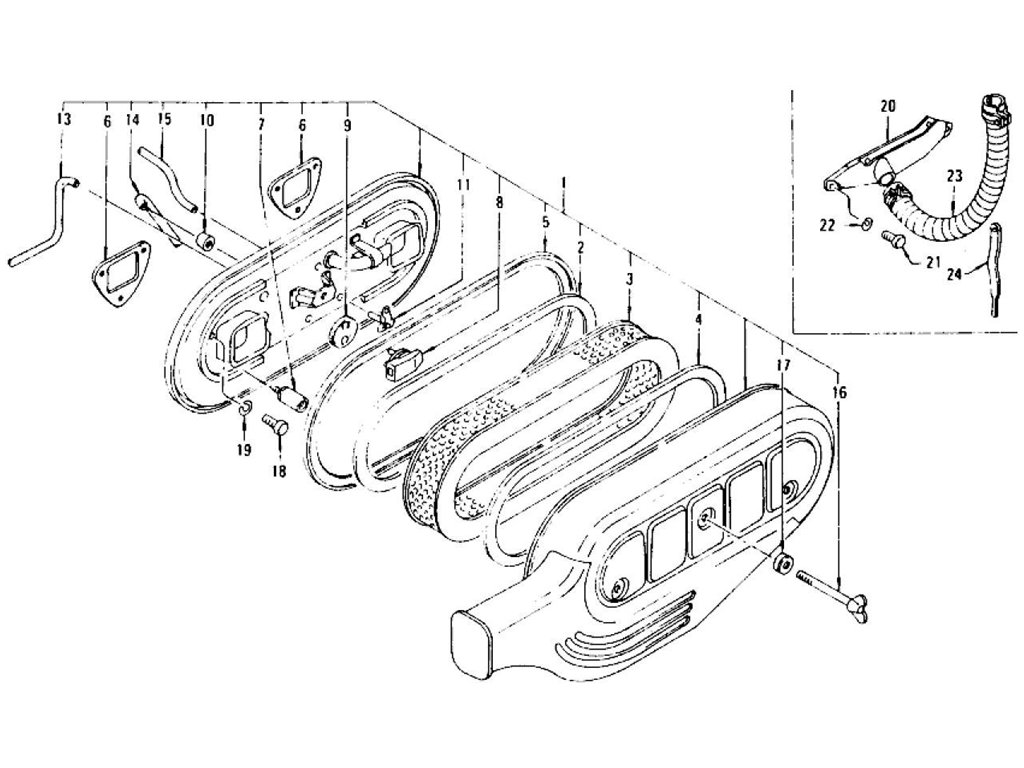

Air Cleaner L24 (From Jul.-'72 To Jul.-'73)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-AIR CLEANER | 16500-N3300 | L24 | 1 | |||||
| 1 | ASSY-AIR CLEANER | 16500-N3301 | L24 | 1 | Yes | Yes | 16500-N3300 | ||
| 1 | ASSY-AIR CLEANER | 16500-N3303 | L24 | 7307 | 1 | Yes | Yes | 16500-N3301 | |
| 1 | ASSY-AIR CLEANER | 16500-N3304 | L24 | 7307 | 1 | No | No | 16500-N3303 | |
| 2 | PACKING | 16547-N3300 | L24 | 7307 | 1 | ||||
| 3 | ASSY-PAPER ELEMENT | 16546-N3300 | L24 | 7307 | 1 | ||||
| 3 | ASSY-PAPER ELEMENT | 16546-N3310 | L24 | 7307 | 1 | No | No | 16546-N3300 | |
| 4 | PACKING | 16547-N3300 | L24 | 7307 | 1 | ||||
| 5 | PACKING | 16548-N3300 | L24 | 7307 | 1 | ||||
| 6 | GASKET | 16523-N3301 | L24 | 7307 | 2 | ||||
| 7 | CONENCTOR-SCREW WITH | 16517-N3300 | L24 | 7307 | 2 | ||||
| 8 | ASSY-TEMPERATURE SEN | 16580-H3900 | L24 | 7307 | 1 | ||||
| 9 | GROMMET | 16529-N0905 | L24 | 7307 | 1 | ||||
| 10 | STOPPER | 16582-H3900 | L24 | 7307 | 1 | ||||
| 11 | ASSY-IDLE COMPENSATO | 16331-N3300 | L24 | 7307 | 1 | ||||
| 11 | ASSY-IDLE COMPENSATO | 16331-N3305 | L24 | 7307 | 11 | Yes | Yes | 16331-N3300 | |
| 12 | ASSY-MOTOR VACUUM | 16510-N3300 | L24 | 7307 | 1 | ||||
| 13 | HOSE-VACUUM (3.5DX8. | B2318-N3300 | L24 | 7307 | 1 | ||||
| 14 | HOSE-VACUUM (3.5DX8. | B2318-N3300 | L24 | 7307 | 1 | ||||
| 15 | HOSE-VACUUM | 22318-N3305 | L24 | 1 | |||||
| 15 | HOSE-VACUUM | 22318-N3307 | L24 | 7307 | 1 | Yes | Yes | 22318-N3305 | |
| 15 | HOSE-VACUUM(6.0DX10. | B2318-N3307 | L24 | 7307 | 1 | ||||
| 16 | ASSY-BOLT CENTER | 16516-N3300 | L24 | 7307 | 3 | ||||
| 17 | ASSY-PACKING | 16568-U0800 | L24 | 7307 | 3 | ||||
| 18 | BOLT-HEX M8X1.25 | 08460-81612 | L24 | 7307 | 4 | ||||
| 19 | WASHER-SPRING | 08915-13810 | L24 | 7307 | 4 | ||||
| 20 | ASSY-COVER EXH MANIF | 16590-N3302 | L24 | 7307 | 1 | ||||
| 21 | BOLT-HEX M6X1.0 | 08120-61210 | L24 | 7307 | 4 | ||||
| 22 | WASHER-SPRING M6 | 08915-13610 | L24 | 7307 | 4 | ||||
| 23 | DUCT-COVER TO A/C | 16530-N3300 | L24 | 7307 | 1 | ||||
| 23 | DUCT-COVER TO A/C (L | A6530-76004 | L24 | 7307 | 1 | 16530-N3300 | |||
| 24 | CLAMP-TUBE | 17111-A5500 | L24 | 7307 | 1 |
