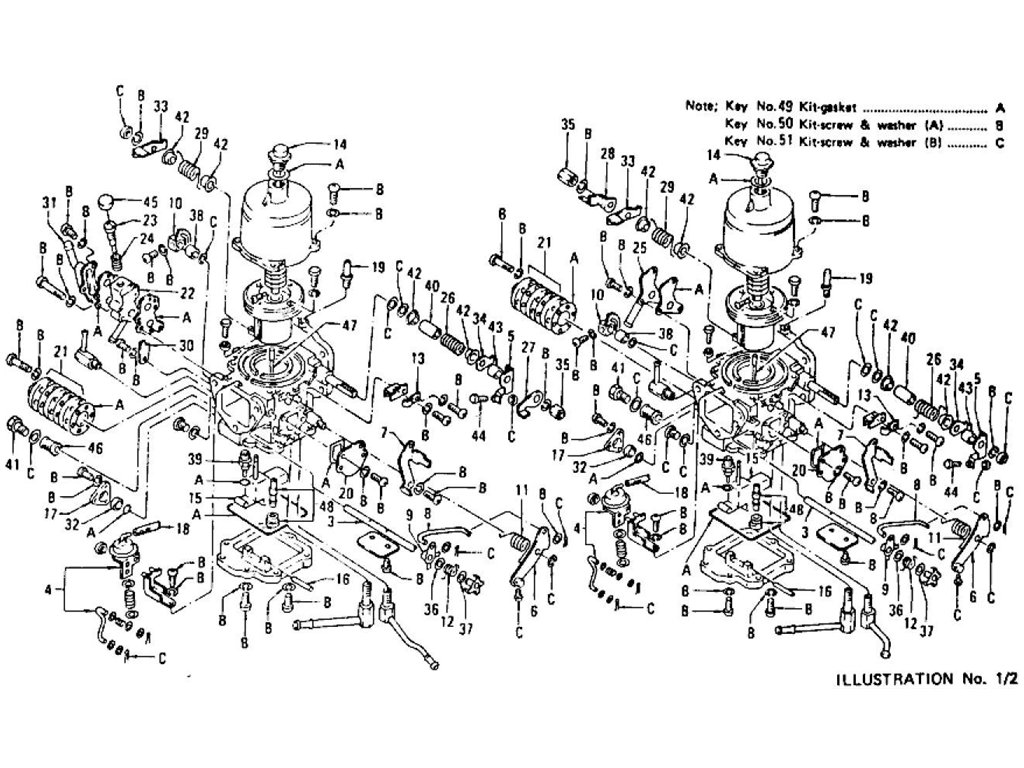

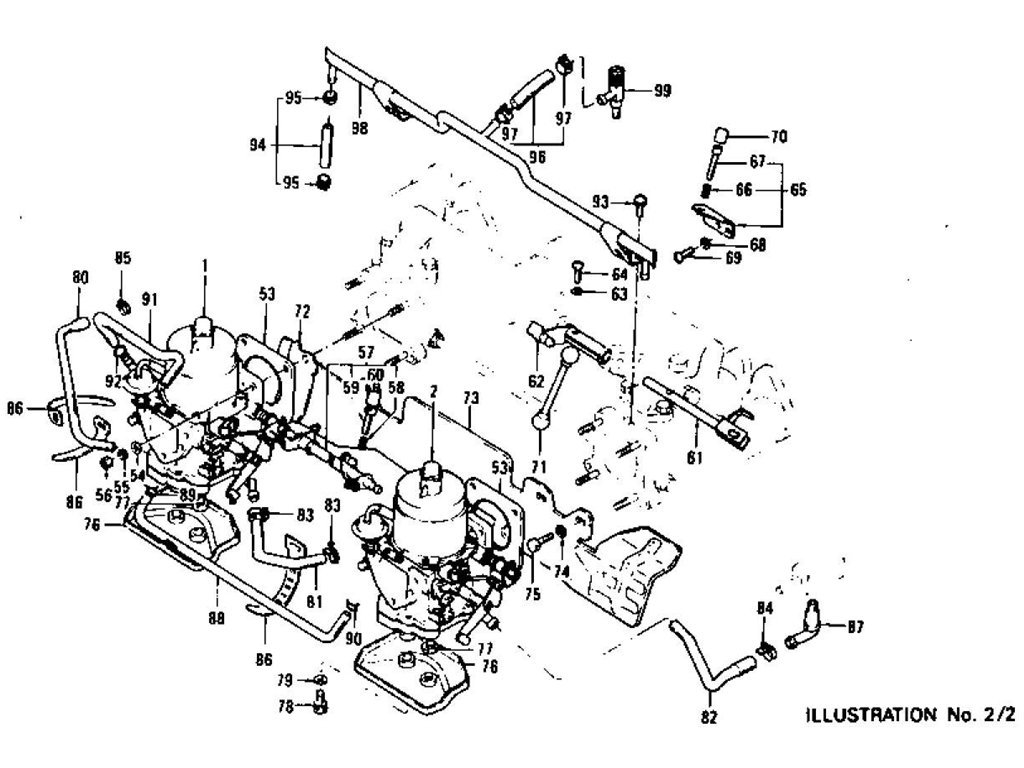

Carburetor L26 (From Aug.-'73 To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-CARBURETOR | 16010-N3634 | L26 | 7308 | 7407 | 1 | Yes | Yes | 16010-N3633 |
| 1 | ASSY-CARBURETOR | 16010-N3633 | L26 | 7308 | 1 | ||||
| 1 | ASSY-CARBURETOR | 16010-N3635 | L26 | 7408 | 1 | Yes | Yes | 16010-N3634 | |
| 2 | ASSY-CARBURETOR | 16010-N3653 | L26 | 7308 | 7309 | 1 | |||
| 2 | ASSY-CARBURETOR | 16010-N3654 | L26 | 7308 | 7407 | 1 | Yes | Yes | 16010-N3663 |
| 2 | ASSY-CARBURETOR | 16010-N3663 | L26 | 7310 | 1 | 16010-N3653 | |||
| 2 | ASSY-CARBURETOR | 16010-N3655 | L26 | 7408 | 1 | Yes | Yes | 16010-N3654 | |
| 3 | ASSY-SHAFT | 16271-N3311 | L26 | 7308 | 2 | ||||
| 4 | ASSY-PISTON | 16466-N3311 | L26 | 7308 | 2 | ||||
| 5 | LEVER-FAST IDLE | 16277-N3311 | L26 | 7308 | 2 | ||||
| 6 | CAM-CHOKE | 16468-N3310 | L26 | 7308 | 2 | ||||
| 7 | STOPPER-CHOKE CAM | 16469-N3311 | L26 | 7308 | 2 | ||||
| 8 | ROD-CONNECTING | 16143-N3310 | L26 | 7308 | 2 | ||||
| 9 | LEVER-CHOKE | 16238-N3310 | L26 | 7308 | 2 | ||||
| 10 | LEVER-CHOKE PISTON | 16471-N3310 | L26 | 7308 | 2 | ||||
| 11 | SPRING-CHOKE RETURN | 16190-N3310 | L26 | 7308 | 2 | ||||
| 12 | SPRING-CHOKE | 16190-N3600 | L26 | 7308 | 2 | ||||
| 13 | GUIDE-CHOKE WIRE | 16165-N3310 | L26 | 7308 | 2 | ||||
| 14 | ASSY-NUT | 16341-N3310 | L26 | 7308 | 2 | ||||
| 15 | FLOAT | 16061-N3311 | L26 | 7308 | 2 | ||||
| 16 | SHAFT-FLOAT | 16066-N3310 | L26 | 7308 | 2 | ||||
| 17 | HOLDER-LEVER GAUGE | 16474-N3312 | L26 | 7308 | 2 | ||||
| 18 | 'OSE-VACUUM | 16267-N3310 | L26 | 7308 | 2 | ||||
| 19 | NIPPLE-VACUUM | 16337-N3310 | L26 | 7308 | 2 | ||||
| 20 | COVER-PLATE | 16272-N3310 | L26 | 7308 | 2 | ||||
| 21 | ASSY-POWER VALVE | 16059-N3600 | L26 | 7308 | 2 | ||||
| 22 | BLOCK-IMS | 16477-N3310 | L26 | 7308 | 1 | ||||
| 23 | SCREW-IMS | 16144-N3310 | L26 | 7308 | 1 | ||||
| 24 | SPRING-IMS SCREW | 16145-N3310 | L26 | 7308 | 1 | ||||
| 25 | CONNECTOR-IMS | 16478-N3310 | L26 | 7308 | 1 | ||||
| 26 | SPRING-THROTTLE | 16160-N3600 | L26 | 7308 | 2 | ||||
| 27 | LEVER-THROTTLE (F) | 16134-N3310 | L26 | 7308 | 1 | ||||
| 28 | LEVER-THROTTLE (R) | 16134-N3311 | L26 | 7308 | 1 | ||||
| 29 | SPRING-THROTTLE | 16160-N3610 | L26 | 7308 | 2 | ||||
| 30 | STOPPER-LIMITER | 16476-N3310 | L26 | 7308 | 1 | ||||
| 31 | CONNECTOR-AIR | 16334-N3310 | L26 | 7308 | 1 | ||||
| 32 | GAUGE-LEVEL | 16125-N3600 | L26 | 7308 | 2 | ||||
| 33 | LEVER-THROTTLE ADJUS | 16479-N3310 | L26 | 7308 | 2 | ||||
| 34 | HANGER-SPRING | 16162-N3600 | L26 | 7308 | 2 | ||||
| 35 | NUT | 16214-25610 | L26 | 7308 | 2 | ||||
| 36 | COLLAR (A) | 16217-N3310 | L26 | 7308 | 2 | ||||
| 37 | COLLAR (B) | 16217-N3311 | L26 | 7308 | 2 | ||||
| 38 | COLLART | 16217-N3312 | L26 | 7308 | 2 | ||||
| 39 | VALVE-NEEDLE | 16101-N3310 | L26 | 7308 | 7407 | 2 | |||
| 39 | VALVE-NEEDLE (1.7) | 16101-N3605 | L26 | 7408 | 2 | Yes | Yes | 16101-N3310 | |
| 40 | SHIM-COLLAR | 16239-N3600 | L26 | 7308 | 2 | ||||
| 41 | SCREW-FILTER | 16108-N3310 | L26 | 7308 | 2 | ||||
| 42 | COLLAR | 16116-S0802 | L26 | 7308 | 8 | ||||
| 43 | COLLAR | 16116-N3600 | L26 | 7308 | 2 | ||||
| 44 | SCREW-FAST IDLE | 16065-N3310 | L26 | 7308 | 2 | ||||
| 45 | CAP-IMS LIMIT | 16147-N3605 | L26 | 7308 | 1 | ||||
| 46 | FILTER | 16098-25710 | L26 | 7308 | 2 | ||||
| 47 | JET-NEEDLE | 16354-N3310 | L26 | 7308 | 2 | ||||
| 48 | KIT-NOZZLE | 16496-N3300 | L26 | 7308 | 2 | ||||
| 49 | KIT-GASKET | 16455-N3311 | L26 | 7308 | 1 | ||||
| 50 | KIT-SCREW & WASHER ( | 16465-N3310 | L26 | 7308 | 1 | ||||
| 51 | KIT-SCREW & WASHER ( | 16475-N3601 | L26 | 7308 | 1 | ||||
| 52 | KIT-REPAIR | 16009-N3302 | L26 | 7308 | 1 | ||||
| 53 | 2NSULATOR-CARBURETOR | 16174-N3301 | L26 | 7308 | 2 | ||||
| 53 | 2NSULATOR-CARBURETOR | 16174-N3600 | L26 | 7308 | 2 | Yes | Yes | 16174-N3301 | |
| 54 | WASHER-PLAIN | 08915-43890 | L26 | 7308 | 8 | ||||
| 54 | WASHER-PLAIN | 14037-N3311 | L26 | 7308 | 8 | ||||
| 55 | WASHER-LOCK | 08915-13890 | L26 | 7308 | 8 | ||||
| 56 | NUT | 08911-10810 | L26 | 7308 | 8 | ||||
| 57 | ASSY-SHAFT THROTTLE | 16380-N3600 | L26 AUTOMATIC | 7308 | 1 | ||||
| 57 | ASSY-SHAFT THROTTLE | 16380-N3301 | L26 MANUAL | 7308 | 1 | ||||
| 58 | SPRING-THROTTLE ADJU | 16378-E4300 | L26 | 7308 | 2 | ||||
| 59 | SCREW-THROTTLE ADJUS | 16379-E4300 | L26 | 7308 | 2 | ||||
| 60 | CAP-ADJUST SCREW | 16147-N3300 | L26 | 7308 | 1 | ||||
| 61 | SHAFT-AUX | 16361-N3601 | L26 | 7308 | 1 | Yes | Yes | 16361-N3600 | |
| 61 | SHAFT-AUX.THROTTLE | 16361-N3600 | L26 | 1 | |||||
| 62 | ARM-AUX.THROTTLE SHA | 16365-N3302 | L26 | 7308 | 1 | ||||
| 63 | WASHER-TOOTH LOCK | 08916-43510 | L26 | 7308 | 1 | ||||
| 64 | SCREW MS | 08330-51012 | L26 | 7308 | 1 | ||||
| 64 | SCREW MS | 08330-51612 | L26 | 7308 | 1 | ||||
| 65 | ASSH-BRACKET | 16375-N3600 | L26 | 7308 | 1 | ||||
| 66 | SPRING-THROTTLE ADJU | 16378-E4300 | L26 | 7308 | 1 | ||||
| 67 | SCRING-THROTTLE ADJU | 16379-E4300 | L26 | 7308 | 1 | ||||
| 68 | WASHER-SPRING | 08915-13510 | L26 | 7308 | 2 | ||||
| 69 | SCREW M5 | 08310-51212 | L26 | 7308 | 2 | ||||
| 70 | CAP-ADJUST SCREW | 16147-N3300 | L26 | 7308 | 1 | ||||
| 71 | ROD-CONNECTING | 16371-N3301 | L26 | 7308 | 1 | ||||
| 72 | &LATE-HEAT SHIELD FR | 14330-N3304 | L26 | 7308 | 1 | ||||
| 73 | PLATE-HEAT REAR | 14331-N3600 | L26 | 7308 | 1 | ||||
| 74 | WASHER-PLAIN | 08915-43610 | L26 | 7308 | 4 | ||||
| 75 | BOLT | 08110-61262 | L26 | 7308 | 4 | ||||
| 75 | BOLT | 08110-61262 | L26 | 7308 | 5 | ||||
| 76 | &LATE-SUB HEAT SHIEL | 14335-N3300 | L26 | 7308 | 2 | ||||
| 77 | 2NSULATOR-SUB HEAT S | 14337-N3300 | L26 | 7308 | 4 | ||||
| 78 | BOLT WITH WASHER M6 | 08110-61662 | L26 | 7308 | 4 | ||||
| 79 | WASHER-PLAIN M6 | 08915-53610 | L26 | 7308 | 4 | ||||
| 80 | HOSE-CONN.TO FRONT C | 16085-N3302 | L26 | 7308 | 1 | ||||
| 81 | HOSE-WATER FRONT CAR | 16086-N3302 | L26 | 7308 | 1 | ||||
| 82 | HOSE-CARB.TO WATER C | 16087-N3304 | L26 | 7308 | 1 | ||||
| 82 | HOSE-CARB.TO WATER C | 16087-N3601 | L26 | 7407 | 1 | No | No | 16087-N3600 | |
| 82 | 'OSE-CARB.TO WATER C | 16087-N3600 | L26 | 7308 | 7406 | 1 | No | No | 16087-N3304 |
| 83 | CLAMP-HOSE | 08723-11600 | L26 | 7308 | 4 | ||||
| 84 | CLAMP-HOSE | 08723-11900 | L26 | 7308 | 1 | ||||
| 85 | CLAMP-HOSE | 08723-12200 | L26 | 7308 | 1 | ||||
| 86 | BAND-HOSE | 01552-00411 | L26 | 3 | Yes | Yes | 14896-25601 | ||
| 86 | BAND-HOSE | 14896-25601 | L26 | 7308 | 3 | ||||
| 87 | ASSY-VALVE CARBURETO | 14100-N3303 | L26 | 7308 | 1 | ||||
| 88 | 'OSE-FRONT CARB.TO R | 16088-N3300 | L26 | 7308 | 1 | ||||
| 89 | CLAMP-HOSE | 01557-00011 | L26 | 7308 | 1 | ||||
| 90 | CLAMP-HOSE | 01557-00021 | L26 | 7308 | 1 | ||||
| 91 | HOSE-A/C TO FRONT CA | 16089-N3300 | L26 | 7308 | 1 | ||||
| 92 | CLAMP-HOSE | 01557-00021 | L26 | 7308 | 2 | ||||
| 93 | SCREW-WITH WASHER | 08310-51014 | L26 | 7308 | 4 | ||||
| 94 | ASSY-HOSE CARBURETOR | 16084-N3001 | L26 | 7308 | 2 | ||||
| 94 | HOSE (L=2200) | 08742-20020 | L26 | 7308 | 0 | ||||
| 95 | CLAMP-HOSE | 08723-11400 | L26 | 4 | Yes | Yes | 16439-A0601 | ||
| 95 | CLAMP-HOSE | 16439-A0601 | L26 | 7308 | 4 | ||||
| 96 | ASSY-HOSE | 16084-N3301 | L26 | 7308 | 1 | ||||
| 96 | HOSE (L=2200) | 08742-20030 | L26 | 0 | |||||
| 97 | CLAMP | 08723-11600 | L26 | 7308 | 2 | Yes | Yes | 16439-A0604 | |
| 97 | CLAMP-HOSE | 16439-A0604 | L26 | 2 | |||||
| 98 | ASSY-TUBE ISS | 16090-N3301 | L26 | 7308 | 1 | ||||
| 99 | ASSY-ISS | 16091-N3301 | L26 | 7308 | 1 | ||||
| 100 | (OZZLE-KIT | 16496-N3300 | L26 | 7308 | 1 |
