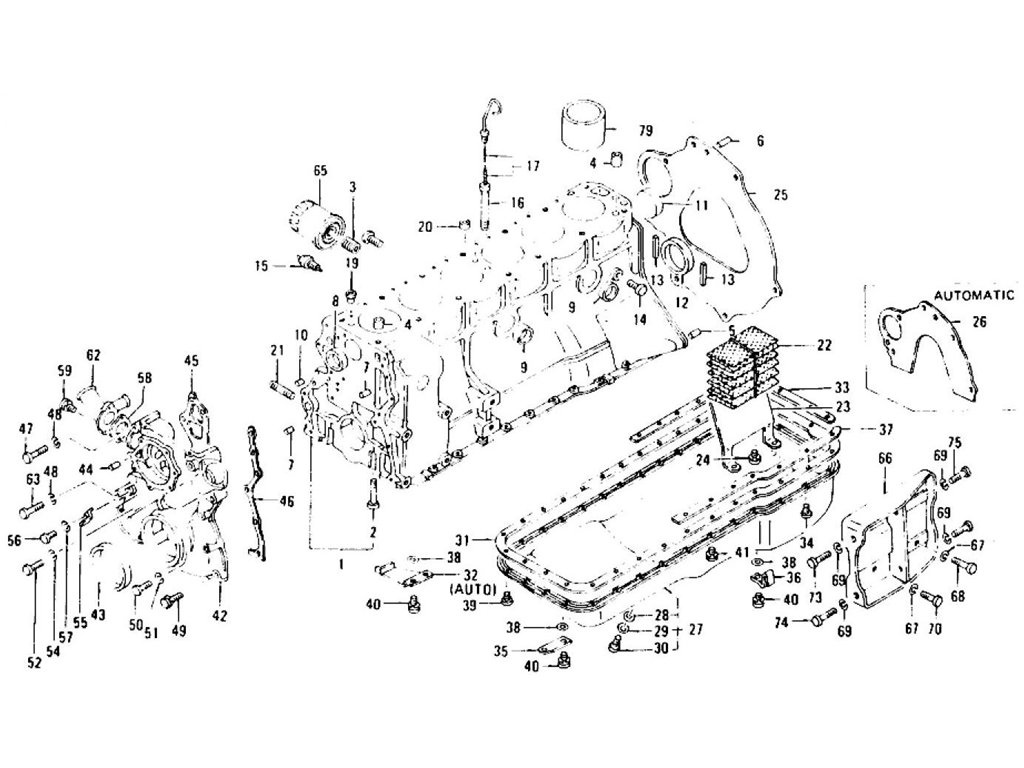

Cylinder Block & Fitting L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY CYLINDER BLOCK | 11010-E3100 | L24 | 1 | |||||
| 1 | ASSY CYLINDER BLOCK | 11010-P3001 | L24 | 1 | Yes | Yes | 11010-P3000 | ||
| 1 | 11010-P3001SV | 11010-P3000 | L24 | 7207 | 1 | Yes | Yes | 11010-E3100 | |
| 1 | 11010-P3001SV | 11010-P5000 | L26 | 7308 | 1 | Yes | Yes | 11010-P3001 | |
| 2 | BOLT MAIN BEARING CA | 12293-18001 | L24 | L26 | 14 | ||||
| 3 | STUD OIL FILTER | 15213-21000 | L24 | 1 | |||||
| 3 | STUD OIL FILTER | 15213-21001 | L24 | L26 | 1 | Yes | Yes | ||
| 4 | DOWEL BLOCK TO HEAD | 11053-73400 | L24 | L26 | 2 | ||||
| 5 | DOWEL BLOCK TO HEAD | 11022-21000 | L24 | L26 | 1 | ||||
| 6 | DOWEL | 30412-73000 | L24 | 7307 | 1 | ||||
| 6 | DOWEL | 30412-H1000 | L26 | 7308 | 1 | No | No | 30412-73000 | |
| 7 | DOWEL TIMING CHAIN C | 11046-73402 | L24 | L26 | 2 | ||||
| 8 | PLUG WELCH | 00933-14000 | L24 | L26 | 1 | ||||
| 9 | PLUG WELCH | 00933-13500 | L24 | 7 | |||||
| 9 | PLUG WELCH | 01648-00084 | L24 | L26 | 7207 | 7 | Yes | Yes | |
| 10 | PLUG TAPER | 11021-13200 | L24 | 7204 | 2 | ||||
| 10 | PLUG TAPER | 11024-K0100 | L24 | L26 | 7205 | 2 | Yes | Yes | |
| 11 | PLUG WELCH | 00933-15000 | L24 | L26 | 1 | ||||
| 12 | ASSY SEAL OIL CRANK | 12279-21010 | L24 | L26 | 1 | ||||
| 12 | ASSY SEAL OIL CRANK | 12279-R4600 | L24 | L26 | 1 | ||||
| 12 | ASSY SEAL OIL CRANK | 12279-R4601 | L24 | L26 | 1 | Yes | Yes | ||
| 13 | ASSY SEAL OIL BEARIN | 12289-21003 | L24 | L26 | 2 | ||||
| 14 | ASSY PLUG DRAIN | 08931-30410 | L24 | 7307 | 1 | ||||
| 14 | ASSY PLUG DRAIN | 08931-30810 | L26 | 7308 | 1 | No | No | 08931-30410 | |
| 15 | GAUGE OIL PRESSURE | 25070-89901 | L26 | 7308 | 1 | ||||
| 16 | GUIDE OIL LEVEL | 15146-12200 | L24 | L26 | 1 | ||||
| 16 | GUIDE OIL LEVEL | 15146-12201 | L24 | L26 | 1 | Yes | Yes | ||
| 17 | GAUGE OIL LEVEL | 11140-E3001 | L24 | 1 | |||||
| 17 | GUGE OIL LEVEL | 11140-E3002 | L24 | L26 | 1 | Yes | Yes | ||
| 18 | ASSY RELIEF VALVE UN | 15241-73400 | L24 | L26 | 1 | ||||
| 19 | JET OIL CYLINDER BLO | 11047-21000 | L24 | L26 | 1 | ||||
| 20 | JET OIL CYLINDER BLO | 11047-E3000 | L24 | L26 | 1 | ||||
| 21 | STUD MID | 08227-02510 | L24 | L26 | 1 | ||||
| 22 | NET STEEL CRANK CASE | 11037-E3000 | L24 | L26 | 1 | ||||
| 23 | PLATE BAFFLE CRANK C | 11038-E3000 | L24 | 1 | |||||
| 23 | PLATE BAFFLE CRANK C | 11038-E3001 | L24 | L26 | 7504 | 1 | Yes | Yes | |
| 23 | PLATE BAFFLE CRANK C | 11038-Y4000 | L26 | 7505 | 1 | Yes | Yes | 11038-E3001 | |
| 24 | SCREW MACINE | 08310-61214 | L24 | L26 | 2 | ||||
| 25 | PLATE ENGINE REAR | 30411-E3000 | L24 MANUAL | 7307 | 1 | ||||
| 25 | PLATE ENGINE REAR | 30411-A8600 | L26 MANUAL | 7308 | 1 | No | No | 30411-E3000 | |
| 26 | PLATE ENGINE REAR | 30411-21000 | L24 | L26 AUTOMATIC | 1 | ||||
| 27 | ASSY OIL PAN | 11110-E3021 | L24 | 7104 | 1 | ||||
| 27 | ASSY OIL PAN | 11110-P0100 | L24 | L26 | 7105 | 1 | No | No | |
| 28 | SEAT DRAIN PLUG | 11119-61000 | L26 | 7308 | 1 | ||||
| 29 | WASHER DRAIN PLUG | 11026-61000 | L24 | L26 | 1 | ||||
| 30 | PLUG DRAIN | 11128-69200 | L24 | L26 | 1 | ||||
| 31 | GASKET OIL PAN | 11121-E3000 | L24 | 1 | |||||
| 31 | GASKET OIL PAN | 11121-E3001 | L24 | L26 | 1 | Yes | Yes | ||
| 32 | BRACKET CLAMP HOSE F | 11115-E3000 | L24 AUTOMATIC | 1 | |||||
| 32 | BRACKET CLAMP HOSE F | 11115-E3001 | L24 AUTOMATIC | 1 | Yes | Yes | 11115-E3000 | ||
| 32 | BRACKET CLAMP HOSE F | 11115-E7900 | L24 | L26 AUTOMATIC | 7408 | 1 | Yes | Yes | |
| 32 | BRACKET CLAMP HOSE F | 11115-U3500 | L26 AUTOMATIC | 7409 | 1 | No | No | 11115-E7900 | |
| 33 | REINFORCEMENT OIL PA | 11124-P6500 | L24 | L26 | 1 | Yes | Yes | ||
| 33 | REINFORCEMENT OIL PA | 11124-R1000 | L24 | L26 | 1 | ||||
| 34 | BOLT HEX | 08130-62062 | L24 | L26 | 9 | ||||
| 35 | BRACKET CLAMP HOSE F | 11116-E3000 | L24 AUTOMATIC | 1 | |||||
| 35 | BRACKET CLAMP HOSE F | 11116-N3000 | L24 L26 AUTOMATIC | 1 | No | No | 11116-E3000 | ||
| 35 | BRACKET CLAMP HOSE F | 11116-N3410 | L26 AUTOMATIC | 7408 | 1 | Yes | Yes | 11116-N3000 | |
| 35 | BRACKET CLAMP HOSE F | 11116-N3400 | L26 AUTOMATIC | 7409 | 1 | No | No | 11116-N3410 | |
| 36 | CLAMP TUBE OIL COOLE | 11117-E3000 | L24 AUTOMATIC | 2 | |||||
| 36 | CLAMP TUBE OIL COOLE | 11117-E3000 | L24 AUTOMATIC | 7207 | 7307 | 1 | |||
| 36 | CLAMP TUBE OIL COOLE | 11117-N3300 | L24 AUTOMATIC | 7207 | 7307 | 1 | |||
| 36 | CLAMP TUBE OIL COOLE | 11117-N3300 | L26 AUTOMATIC | 7308 | 7408 | 1 | |||
| 36 | CLAMP TUBE OIL COOLE | 11117-U3500 | L26 AUTOMATIC | 7308 | 1 | Yes | Yes | 11117-E3000 | |
| 36 | CLAMP TUBE OIL COOLE | 11117-N3400 | L26 AUTOMATIC | 7409 | 1 | ||||
| 37 | REINFORCEMENT WITH H | 11123-N3300 | L24 | L26 | 1 | ||||
| 37 | REINFORCEMENT WITH H | 11123-N4200 | L24 | L26 | 1 | Yes | Yes | ||
| 38 | SPACER CLAMP OIL COO | 11134-21810 | L24 AUTOMATIC | 7307 | 6 | ||||
| 39 | BOLT HEX | 08120-61414 | L24 AUTOMATIC | 25 | |||||
| 39 | BOLT HEX | 08120-61462 | L24 AUTOMATIC | 7307 | 25 | Yes | Yes | 08120-61414 | |
| 39 | BOLT HEX | 08120-61414 | L24 MANUAL | 31 | |||||
| 39 | BOLT HEX | 08120-61462 | L24 MANUAL | 7307 | 31 | Yes | Yes | 08120-61414 | |
| 39 | BOLT HEX M6 | 08120-61862 | L24 AUTOMATIC | 6 | |||||
| 40 | BOLT HEX | 08130-62062 | L26 AUTOMATIC | 7308 | 10 | ||||
| 40 | BOLT HEX | 08130-62062 | L26 MANUAL | 7308 | 7 | ||||
| 41 | BOLT | 08130-61610 | L26 MANUAL | 7308 | 15 | ||||
| 41 | BOLT HEX | 08130-61662 | L26 AUTOMATIC | 7308 | 12 | ||||
| 41 | BOLT HEX | 08130-61662 | L26 MANUAL | 7308 | 15 | ||||
| 41 | WASHER | 08915-13510 | L26 AUTOMATIC | 7308 | 15 | ||||
| 42 | COVER ENGINE FRONT | 13501-21002 | L24 | 1 | |||||
| 42 | COVER ENGINE FRONT | 13501-A8600 | L24 | L26 | 1 | Yes | Yes | ||
| 43 | ASSY OIL SEAL CRANK | 13042-73000 | L24 | 1 | |||||
| 43 | ASSY OIL SEAL CRANK | 13042-A3510 | L24 | L26 | 1 | Yes | Yes | ||
| 43 | ASSY OIL SEAL CRANK | 13042-A8600 | L24 | L26 | 7110 | 1 | Yes | Yes | |
| 44 | DOWEL | 11046-73402 | L24 | L26 | 2 | ||||
| 45 | GASKET FRONT COVER R | 13520-21000 | L24 | 1 | |||||
| 45 | GASKET FRONT COVER R | 13520-P0100 | L24 L26 | 1 | Yes | Yes | 13520-21000 | ||
| 46 | GASKET FRONT COVER L | 13521-21000 | L24 | 7307 | 1 | ||||
| 46 | GASKET FRONT COVER L | 13521-P0100 | L24 | L26 | 1 | Yes | Yes | ||
| 47 | BOLT HEX M6 | 13540-U0100 | L26 | 7308 | 3 | No | No | 13540-21001 | |
| 47 | BOLT HEX M6 L=78 | 13540-21001 | L24 | 7307 | 3 | ||||
| 48 | WASHER SPRING LOCK M | 08915-13810 | L24 | 7307 | 4 | ||||
| 48 | WASHER SPRING LOCK M | 08915-13610 | L26 | 7308 | 3 | No | No | 08915-13810 | |
| 49 | BOLT HEX WITH SPRING | 08110-62014 | L24 | 2 | |||||
| 49 | BOLT HEX WITH SPRING | 08110-62262 | L24 | 7307 | 2 | Yes | Yes | 08110-62014 | |
| 49 | BOLT HEX WITH SPRING | 08110-62062 | L26 | 7308 | 2 | No | No | 08110-62262 | |
| 50 | BOLT HEX M6 | 08110-64210 | L24 | 7307 | 3 | ||||
| 51 | WASHER SPRING LOCK M | 08915-13610 | L24 | 7307 | 3 | ||||
| 52 | BOLT HEX M8X45 | 08110-84510 | L26 | 7308 | 1 | ||||
| 53 | BOLT HEX M8X78 | 13540-21001 | L26 | 7308 | 3 | ||||
| 53 | BOLT HEX M8X78 FOR C | 13540-21001 | OP.L26 | 7308 | 2 | ||||
| 54 | WASHER LOCK M8 | 08915-13810 | L26 | 7308 | 4 | ||||
| 54 | WASHER-LOCK M8 FOR C | 08915-13810 | OP.L26 | 7308 | 3 | ||||
| 55 | INDICATOR-TIMIN (DOU | 13502-P0301 | L24 | L26 | 7303 | 1 | No | No | |
| 55 | INDICATOR-TIMING | 13502-E3000 | L24 | 7302 | 1 | ||||
| 55 | INDICATOR-TIMING FOR | 13502-N3600 | OP.L26 | 7308 | 1 | ||||
| 56 | SCREW-HEX.FIX. INDIC | 08360-60812 | L24 | L26 | 1 | ||||
| 57 | WASHER-SPRING LOCK | 08915-13610 | L24 | L26 | 1 | ||||
| 58 | GASKET-WATER INLET | 13050-21000 | L24 | L26 | 1 | ||||
| 59 | BOLT-HEX WITH SPRING | 08110-82814 | L24 | 2 | |||||
| 59 | BOLT-HEX WITH SPRING | 08110-82862 | L24 | L26 | 2 | Yes | Yes | ||
| 59 | BOLT-HEX | 08010-87510 | OP.L26 | 7308 | 1 | ||||
| 60 | WASHER-LOCK | 08915-13810 | OP.L26 | 7308 | 1 | ||||
| 61 | BOLT-HEX.MB FIX A/P | 08110-89010 | OP.L26 | 7308 | 1 | ||||
| 62 | INLET-WATER | 13049-E3000 | L24 | 1 | |||||
| 62 | INLET-WATER | 13049-P0300 | L24 | L26 | 1 | Yes | Yes | ||
| 63 | BOLT-HEX MB L=50 | 08110-85010 | L24 | 7307 | 1 | ||||
| 64 | BOLT-HEX AIR PUMP AD | 15038-21000 | L24 | 1 | |||||
| 65 | ASSY-ELEMENT OIL FILTER | 15208-65010 | L24 | 1 | |||||
| 65 | ASSY-ELEMENT OIL FILTER | 15208-65011 | L24 | L26 | 1 | Yes | Yes | ||
| 65 | ASSY-ELEMENT OIL FILTER | 15208-65014 | L24 | L26 | 1 | Yes | Yes | ||
| 66 | BRACKET-COMPRESSOR F | 11910-N3601 | OP.L26 | 7308 | 1 | ||||
| 67 | WASHER-SPRING FOR CO | 08915-14010 | OP L24 | 7307 | 4 | ||||
| 68 | BOLT-COMPRESSOR FOR | 11915-E4100 | OP L24 | 7307 | 1 | ||||
| 69 | WASHER-SPRING FOR CO | 08915-13810 | OP L24 | 7307 | 4 | ||||
| 70 | BOLT-HEX M10X1.5 FOR | 11911-E4600 | OP L24 | 7307 | 1 | ||||
| 70 | BOLT-HEX M10X1.5 FOR | 08131-03810 | OP L26 | 7308 | 2 | ||||
| 71 | BOLT HEX M10X1.5 FOR | 08131-04010 | OP L26 | 7308 | 2 | ||||
| 72 | WASHER-LOCK M10 FOR | 08915-14010 | OP L26 | 7308 | 4 | ||||
| 73 | BOLT-HEX M10X1.5 FOR | 08131-03010 | OP L26 | 7308 | 4 | ||||
| 73 | BOLT-HEX M8X1.25 FOR | 11716-21000 | OP L24 | 7307 | 1 | ||||
| 74 | BOLT-HEX M8X1.25 FOR | 11717-21000 | OP L24 | 7307 | 1 | ||||
| 75 | BOLT-COMPRESSOR FOR | 11915-E4600 | OP L24 | 7307 | 1 | ||||
| 76 | WASHER-LOCK M10 FOR | 08915-14010 | OP L26 | 7308 | 4 | ||||
| 77 | SHIM-ALTERNATOR | 11713-21000 | OP L24 | 7307 | 0 | ||||
| 77 | SHIM-ALTERNATOR | 11713-U0500 | OP L26 | 7308 | 0 | ||||
| 78 | SHIM-ALTERNATOR | 11713-21001 | OP L24 | 7307 | 0 | ||||
| 78 | SHIM-ALTERNATOR | 11713-U0501 | OP L26 | 7308 | 0 | ||||
| 79 | LINER CYLINDER 4.5MM | 11013-21000 | L24 | L26 | 6 | ||||
| 79 | LINER CYLINDER 5.0MM | 11014-21000 | L24 | L26 | 6 | ||||
| 79 | LINER-CYLINDER 4.OMM | 11012-21000 | L24 | L26 | 6 |
