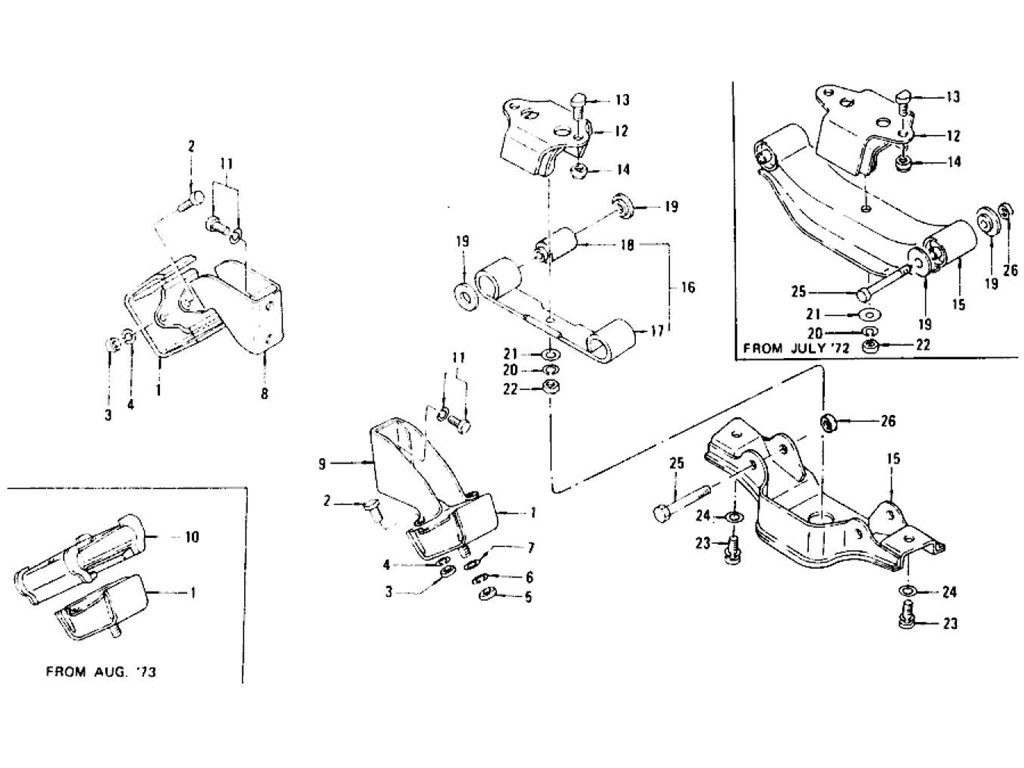

Engine Mounting (Manual From C/# HLS30-46001, RLS30, GRLS30) L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-INSULATOR ENGIN | 11220-E4100 | L24 MANUAL | 7307 | 2 | ||||
| 1 | ASSY-INSULATOR ENGIN | 11220-N3300 | L26 MANUAL | 7308 | 2 | No | No | 11220-E4100 | |
| 2 | BOLT-HEX M8X1.25 | 08120-82010 | L24 MANUAL | 7307 | 4 | ||||
| 2 | BOLT-HEX M8X1.25 | 08120-82562 | L26 MANUAL | 7308 | 4 | No | No | 08120-82010 | |
| 3 | NUT-HEX M8X1.25 | 08911-20810 | L24 MANUAL | 7307 | 4 | ||||
| 4 | WASHER-SPRING LOCK | 08915-13810 | L24 MANUAL | 7307 | 4 | ||||
| 5 | NUT-HEX M10X1.25 | 08911-24010 | L24 | L26 MANUAL | 2 | ||||
| 6 | WASHER-SPRING LOCK | 08915-14010 | L24 | L26 MANUAL | 2 | ||||
| 7 | WASHER-PLAIN | 08915-54010 | L24 | L26 MANUAL | 2 | ||||
| 8 | ASSY-BRACKET ENGINE | 11230-E4100 | L24 MANUAL | 7206 | 1 | ||||
| 8 | ASSY-BRACKET ENGINE | 11230-N3300 | L24 MANUAL | 7207 | 7307 | 1 | No | No | 11230-E4100 |
| 8 | ASSY-BRACKET ENGINE | 11230-N3600 | L26 MANUAL | 7308 | 1 | Yes | Yes | 11230-N3300 | |
| 9 | ASSY-BRACKET ENGINE | 11231-E4100 | L24 MANUAL | 7206 | 1 | ||||
| 9 | ASSY-BRACKET ENGINE | 11231-N3300 | L24 MANUAL | 7207 | 7307 | 1 | No | No | 11231-E4100 |
| 9 | ASSY-BRACKET ENGINE | 11231-N3600 | L26 MANUAL | 7308 | 1 | Yes | Yes | 11231-N3300 | |
| 10 | ASSY-STOPPER ENGINE | 11224-N3300 | L26 MANUAL | 7308 | 2 | ||||
| 11 | BOLT-HEX WITH LOCK W | 08121-02262 | L26 MANUAL | 7308 | 4 | No | No | 08121-02062 | |
| 11 | BOLT-HEX WITH SPRING | 08121-02062 | L24 MANUAL | 7307 | 4 | ||||
| 12 | ASSY-INSULATOR ENGIN | 11320-E4100 | L24 MANUAL | 7206 | 1 | ||||
| 12 | ASSY-INSULATOR ENGIN | 11320-N3000 | L24 | L26 MANUAL | 7207 | 1 | Yes | Yes | |
| 13 | BOLT-ENGINE MOUNTING | 11322-E4101 | L24 MANUAL | 7206 | 2 | ||||
| 13 | BOLT-ENGINE MOUNTING | 11322-N3300 | L24 | L26 MANUAL | 7207 | 2 | Yes | Yes | |
| 14 | NUT-SELF LOCKING | 08912-84010 | L24 | L26 MANUAL | 2 | ||||
| 15 | ASSY-MEMBER ENGINE M | 11330-E8700 | L24 MANUAL | 7206 | 1 | ||||
| 15 | ASSY-MEMBER ENGINE M | 11310-N3000 | L24 | L26 MANUAL | 7207 | 1 | No | No | |
| 16 | ASSY-SPRING ENGINE M | 11340-E8700 | L24 MANUAL | 7307 | 1 | ||||
| 17 | SPRING-ENG MOUNTING | 11341-E8700 | L24 MANUAL | 7307 | 1 | ||||
| 18 | ASSY-BUSH ENGINE MOU | 11345-E8700 | L24 MANUAL | 7206 | 2 | ||||
| 18 | ASSY-BUSH ENGINE MOU | 11345-N3000 | L24 | L26 MANUAL | 7207 | 2 | No | No | |
| 19 | STOPPER-ENGINE MOUNT | 11346-E8700 | L24 | L26 MANUAL | 4 | ||||
| 20 | WASHER-SPRING LOCK | 08915-24010 | L24 | L26 MANUAL | 1 | ||||
| 21 | WASHER-PLAIN | 08915-54010 | L24 | L26 MANUAL | 1 | ||||
| 22 | NUT-HEX MIOXI-25 | 08911-24010 | L24 | L26 MANUAL | 1 | ||||
| 23 | BOLT-HEX WITH SPRING | 08124-02562 | L24 MANUAL | 7307 | 2 | ||||
| 24 | WASHER-PLAIN (LEFT O | 08915-54010 | L24 MANUAL | 7307 | 1 | ||||
| 25 | BOLT-HEX M12X1-25 | 08124-27510 | L24 MANUAL | 7206 | 2 | ||||
| 25 | BOLT-HEX M12X1-25 | 11322-N3000 | L24 | L26 MANUAL | 7207 | 2 | Yes | Yes | |
| 26 | NUT-SELF LOCKING | 08912-84210 | L24 | L26 MANUAL | 2 |
