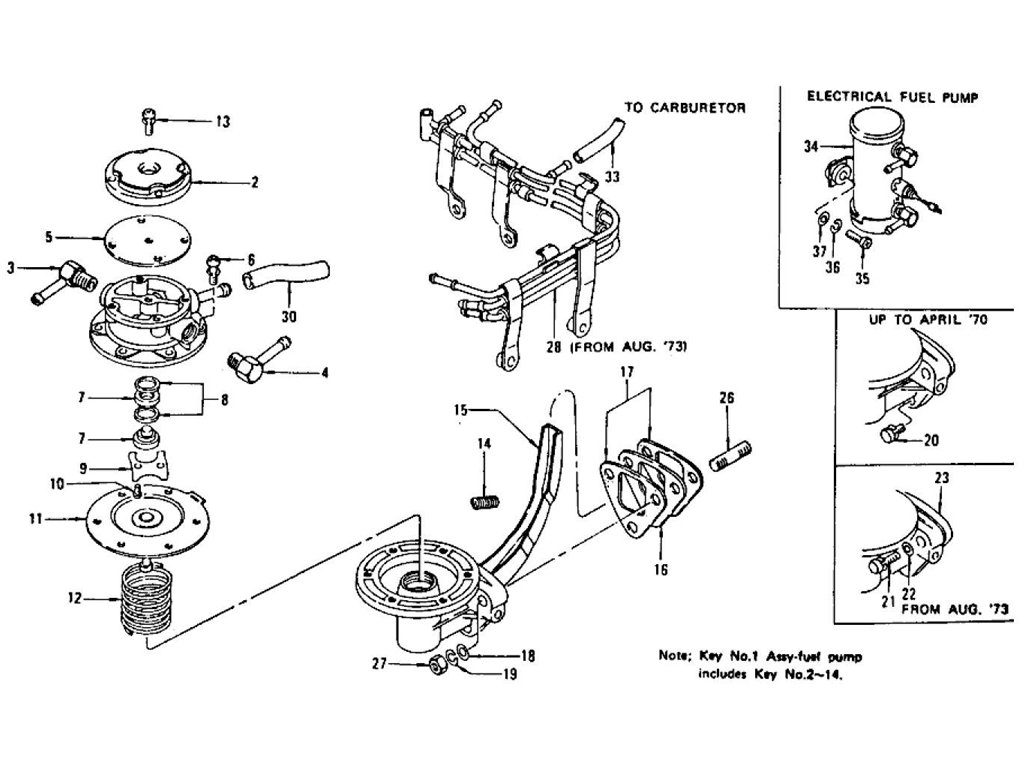

Mechanical Fuel Pump & Tube L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FUEL PUMP | 17010-E4104 | 1 | Yes | Yes | 17010-E4103 | |||
| 1 | ASSY-FUEL PUMP | 17010-E4102 | L24 | 1 | |||||
| 1 | ASSY-FUEL PUMP | 17010-E4103 | L24 | 7307 | 1 | Yes | Yes | 17010-E4102 | |
| 1 | ASSY-FUEL PUMP | 17010-N3600 | L26 | 7308 | 7310 | 1 | 17010-N3600 | ||
| 1 | ASSY-FUEL PUMP | 17010-N3601 | L26 | 7311 | 1 | Yes | Yes | 17010-N3600 | |
| 1 | ASSY-FUEL PUMP WITH | 17010-E3525 | L24 | L26 | 1 | Yes | Yes | ||
| 1 | ASSY-FUEL PUMP WITH | 17010-E3526 | L24 | L26 | 1 | Yes | Yes | ||
| 1 | ASSY-FUEL PUMP WITH | 17010-E4127 | L24 | L26 | 1 | Yes | Yes | ||
| 1 | ASSY-FUEL PUMP WITH | 17010-N3627 | L26 | 1 | Yes | Yes | 17010-N3626 | ||
| 1 | ASSY-FUEL PUMP WITH | 17010-N3625 | L26 | 7311 | 1 | Yes | Yes | 17010-N3601 | |
| 1 | ASSY-FUEL PUMP WITH | 17010-N3626 | L26 | 7311 | 1 | Yes | Yes | 17010-N3625 | |
| 1 | ASSY-FUEL PUMP | 17020-N3310 | L24 | 7207 | 7307 | 1 | |||
| 1 | ASSY-FUEL PUMP | 17020-N3601 | L26 | 7308 | 1 | No | No | 17010-E4103 | |
| 1 | ASSY-FUEL PUMP | 17020-N3602 | L26 | 7308 | 1 | Yes | Yes | 17020-N3601 | |
| 2 | COVER-FUEL PUMP | 17016-N3300 | L24 | L26 | 7311 | 1 | |||
| 3 | ASSY-PIPE INLET | 17103-E4110 | L24 | L26 | 1 | ||||
| 4 | ASSY-PIPE OUTLET | 17103-E3011 | L24 | 7307 | 1 | ||||
| 4 | ASSY-PIPE OUTLET | 17103-N3011 | L26 | 7308 | 1 | No | No | 17103-E3011 | |
| 5 | GASKET-COVER | 17078-21016 | L24 | 7307 | 1 | ||||
| 6 | SCREW-COVER SET | 17089-21005 | L24 | 7307 | 5 | ||||
| 7 | ASSY-VALVE | 17065-21016 | L24 | 7307 | 2 | ||||
| 7 | ASSY-VALVE | 17065-U6010 | L26 | 7308 | 2 | Yes | Yes | 17065-21016 | |
| 8 | GASKET-VALVE | 17061-E3010 | L24 | 7307 | 2 | ||||
| 8 | GASKET-VALVE | 17061-U6010 | L26 | 7308 | 2 | ||||
| 8 | GASKET-VALVE | 17061-U6011 | L26 | 7308 | 2 | Yes | Yes | 17061-U6010 | |
| 9 | RETAINER-VALVE | 17072-21015 | L24 | 7307 | 1 | ||||
| 10 | SCREW-RETAINER SET | 16164-E3010 | L24 | 7307 | 2 | ||||
| 11 | ASSY-DIAPHRAGM | 17053-E3010 | L24 | 7307 | 1 | ||||
| 11 | ASSY-DIAPHRAGM | 17053-U6010 | L26 | 7308 | 1 | No | No | 17053-E3010 | |
| 12 | SPRING-DIAPHRAGM | 17052-E3010 | L24 | 7307 | 1 | ||||
| 12 | SPRING-DIAPHRAGM | 17052-Y0100 | L26 | 7308 | 1 | No | No | 17052-E3010 | |
| 13 | SCREW-BODY SET | 17089-21005 | L24 | 7307 | 6 | ||||
| 14 | SPRING-ROCKER ARM | 17020-E3010 | L24 | 7307 | 1 | ||||
| 15 | LOWER BODY ASSY | 17013-Y0101 | L24 | L26 | 1 | ||||
| 15 | LOWER BODY ASSY | 17013-Y4006 | L24 | L26 | 1 | Yes | Yes | ||
| 16 | SPACER-FUEL PUMP | 16420-E3010 | L24 | 1 | |||||
| 16 | SPACER-FUEL PUMP | 16420-E3011 | L24 | L26 | 1 | Yes | Yes | ||
| 17 | GASKET-FUEL PUMP | 17099-E3010 | L24 | 2 | |||||
| 17 | GASKET-FUEL PUMP | 17099-E3011 | L24 | 2 | |||||
| 17 | GASKET-FUEL PUMP | 17099-E3012 | L24 | L26 | 2 | ||||
| 18 | WASHER-PLAIN | 08915-53810 | L24 | 7307 | 3 | ||||
| 18 | WASHER-PLAIN | 14037-N3311 | L26 | 7308 | 0 | No | No | 08915-53810 | |
| 19 | WASHER-LOCK SPRING | 08915-13810 | L24 | L26 | 2 | ||||
| 20 | BOLT-HEX WITH WASHER | 08110-83562 | L24 | 7004 | 1 | ||||
| 21 | SCREW-MACHINE WITH W | 08360-63014 | L26 | 7308 | 2 | ||||
| 22 | WASHER-PLAIN | 08915-53610 | L26 | 7308 | 2 | ||||
| 23 | COVER-PLATE FUEL PUM | 16420-E3020 | L26 | 7308 | 1 | ||||
| 24 | BOLT-HEX M8 | 08120-82010 | L26 | 7308 | 3 | ||||
| 25 | WASHER-LOCK | 08915-13810 | L26 | 7308 | 3 | ||||
| 26 | STUD | 08223-84210 | L24 | 7005 | 3 | ||||
| 27 | NUT-HEX | 08911-10810 | L24 | L26 | 3 | ||||
| 28 | ASSY-TUBE FUEL | 17520-E4100 | L24 | 1 | |||||
| 28 | ASSY-TUBE FUEL | 17520-E4103 | L24 | 7307 | 1 | Yes | Yes | 17520-E4100 | |
| 28 | ASSY-TUBE FUEL | 17520-N3300 | L24 | 7207 | 7302 | 1 | |||
| 28 | ASSY-TUBE FUEL | 17520-N3301 | L24 | 7303 | 1 | Yes | Yes | 17520-N3300 | |
| 28 | ASSY-TUBE FUEL | 17540-N3610 | L26 | 1 | Yes | Yes | 17540-N3601 | ||
| 28 | ASSY-TUBE FUEL | 17540-N3601 | L26 | 7308 | 1 | No | No | 17520-N3300 | |
| 29 | CAP-RUBBER | 14915-F1700 | L26 | 7308 | 1 | ||||
| 29 | CAP-RUBBER | 14915-F1701 | L26 | 7308 | 1 | Yes | Yes | 14915-F1700 | |
| 30 | ASSY-HOSE FUEL | 17565-N3610 | L26 | 7308 | 1 | ||||
| 31 | CONNECTOR-3 WAY FUEL | 17525-E3002 | L24 | 7307 | 1 | ||||
| 32 | CONNECTOR-FLEXIBLE L | 16409-E3001 | L24 | 1 | |||||
| 32 | HOSE-FUEL L=2200 MM | 08742-20020 | L24 | L26 | 0 | Yes | Yes | ||
| 32 | HOSE-FUEL L=5000 MM | A7515-H1800 | L24 | 0 | Yes | Yes | 16409-E3001 | ||
| 33 | ASSY-HOSE FUEL | 17565-N3611 | L26 | 7308 | 2 | ||||
| 33 | ASSY-TUBE FLEXIBLE F | 17522-E4101 | L24 | 7307 | 2 | ||||
| 34 | ASSY-FUEL PUMP ELECT | 17020-E4100 | OP L24 | 7307 | 1 | ||||
| 34 | ASSY-FUEL PUMP ELECT | 17020-N3600 | OP L24 | 7307 | 1 | Yes | Yes | 17020-E4100 | |
| 35 | SCREW-MACHINE M6X1.0 | 08360-63012 | OP L24 | 7307 | 2 | ||||
| 36 | WASHER-LOCK SPRING | 08915-13610 | OP L24 | 7307 | 2 | ||||
| 37 | WASHER-PLAIN | 08915-53610 | OP L24 | 7307 | 2 |
