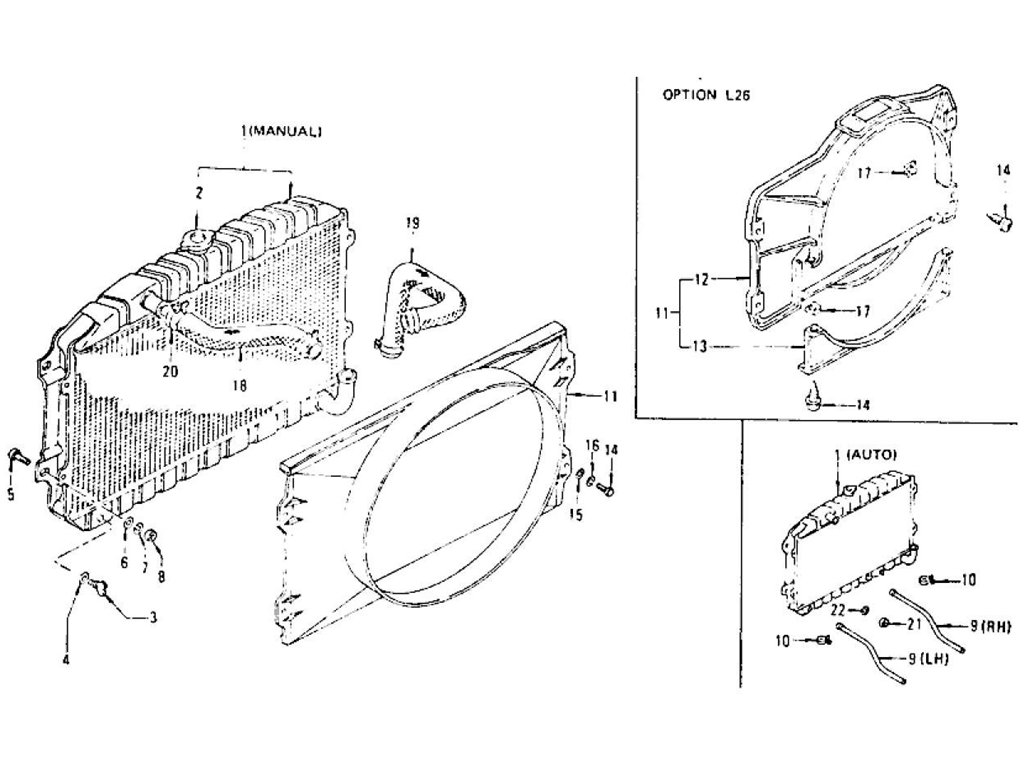

Radiator L24, L26 (To Nov.-'74)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-RADIATOR | 21400-E4501 | L24 AUTO | 7307 | 1 | ||||
| 1 | ASSY-RADIATOR | 21400-E4101 | L24 MANUAL | 7307 | 1 | ||||
| 1 | ASSY-RADIATOR | 21400-N7601 | L26 MANUAL | 1 | Yes | Yes | 21400-N4200 | ||
| 1 | ASSY-RADIATOR | 21400-N3100 | L26 MANUAL | 7308 | 7408 | 1 | No | No | 21400-E4101 |
| 1 | ASSY-RADIATOR | 21400-N4200 | L26 MANUAL | 7409 | 1 | No | No | 21400-N3100 | |
| 1 | ASSY-RADIATOR WIHT O | 21500-N3100 | L26 AUTO | 7308 | 7408 | 1 | |||
| 1 | ASSY-RADIATOR WIHT O | 21500-N4200 | L26 AUTO | 7409 | 1 | ||||
| 1 | ASSY-RADIATOR WITH O | 21500-N7601 | L26 AUTO | 1 | Yes | Yes | 21500-N4200 | ||
| 2 | ASSYCAP RADIATOR | 21430-10600 | L24 | 7307 | 1 | ||||
| 2 | ASSY-CAP RAIATOR | 21430-M0200 | L24 | 7308 | 1 | Yes | Yes | 21430-10600 | |
| 3 | HANDLE-DRAIN COCK | 21480-18000 | L24 | 1 | |||||
| 4 | PACING-DRAIN COCK | 21481-18000 | L24 | 1 | |||||
| 5 | BOLT-HEX | 08363-62038 | 2 SEATER | 7308 | 4 | No | No | 08110-82010 | |
| 5 | BOLT-HEX | 08110-82010 | L24 | 7307 | 4 | ||||
| 5 | SCREW-MACHINE | 08363-82014 | 2+2 SEATER | 7310 | 4 | No | No | 08110-82010 | |
| 6 | WASHER-PLAIN | 08915-43810 | L24 | 7307 | 4 | ||||
| 7 | WASHER-SPRING | 08915-13810 | L24 | 7307 | 4 | ||||
| 8 | NUT-HEX | 08911-10810 | L24 | 7307 | 4 | ||||
| 9 | ASSY-HOSE FLEXIBLE L | 21632-K0100 | 7409 | 1 | No | No | 21632-N3100 | ||
| 9 | ASSY-HOSE FLEXIBLE L | 21632-E4502 | L24 AUTO | 7307 | 1 | ||||
| 9 | ASSY-HOSE FLEXIBLE L | 21632-N3100 | L26 AUTO | 7308 | 7408 | 1 | |||
| 9 | ASSY-HOSE FLEXIBLE R | 21631-N4200 | 7409 | 1 | No | No | 21631-N3100 | ||
| 9 | ASSY-HOSE FLEXIBLE R | 21631-E4502 | L24 AUTO | 7307 | 1 | ||||
| 9 | ASSY-HOSE FLEXIBLE R | 21631-N3100 | L26 AUTO | 7308 | 7408 | 1 | |||
| 10 | CLAMP-HOSE | 21635-U0100 | L26 AUTO | 7409 | 4 | ||||
| 11 | ASSY-SHROUD RADIATOR | 21475-E4100 | L24 | 1 | |||||
| 11 | ASSY-SHROUD RADIATOR | 21475-E4102 | L24 | 7307 | 1 | Yes | Yes | 21475-E4100 | |
| 11 | ASSY-SHROUD RADIATOR | 21475-N3100 | OP.L26 | 7308 | 7408 | 1 | No | No | 21475-E4102 |
| 11 | ASSY-SHROUD RADIATOR | 21475-N4200 | OP.L26 | 7409 | 1 | No | No | 21475-N3100 | |
| 12 | SHROUD-RADIATOR | 21476-N3100 | OP.L26 | 7308 | 7408 | 1 | |||
| 12 | SHROUD-RADIATOR | 21476-N4200 | OP.L26 | 7409 | 1 | No | No | 21476-N3100 | |
| 13 | SHROU-RADIATOR | 21477-N3100 | OP.L26 | 7308 | 7408 | 1 | |||
| 13 | SHROU-RADIATOR | 21477-N4200 | OP.L26 | 7409 | 1 | No | No | 21477-N3100 | |
| 14 | SCREW-MACHINE | 08410-61212 | L24 | 7307 | 4 | ||||
| 14 | SCREW-TAPPING | 08510-41623 | OP.L26 | 7308 | 7408 | 8 | |||
| 14 | SCREW-TAPPING | 01461-00071 | OP.L26 | 7409 | 9 | ||||
| 15 | WASHER-PLAIN | 08915-43610 | L24 | 7307 | 4 | ||||
| 16 | WASHER-LOCK | 08915-13610 | L24 | 7307 | 4 | ||||
| 17 | NUT-SPRING | 08963-10410 | OP.L26 | 7308 | 7408 | 4 | |||
| 17 | NUT-SPRING | 21477-U3900 | OP.L26 | 7409 | 4 | ||||
| 18 | HOSE-CYLINDER HEAD T | 21501-E3000 | L24 | 7307 | 1 | ||||
| 18 | HOSE-CYLINDER HEAD T | 21501-N3000 | L26 | 7308 | 1 | Yes | Yes | 21501-E3000 | |
| 19 | HOSE-RADIATOR TO WAT | 21503-E4100 | L24 | 7307 | 1 | ||||
| 19 | HOSE-RADIATOR TO WAT | 21503-N3000 | L24 | 7307 | 1 | Yes | Yes | 21503-E4100 | |
| 19 | HOSE-RADIATOR TO WAT | 21503-N3101 | L26 | 7308 | 1 | No | No | 21503-E4100 | |
| 19 | HOSE-RADIATOR TO WAT | 21503-N4200 | L26 | 7409 | 1 | ||||
| 20 | CLAMP-HOSE | 08723-14400 | L24 | L26 | 4 | ||||
| 21 | NUT-HEX | 00911-34810 | L24 AUTO | 7307 | 2 | ||||
| 22 | WASHER-LOCK | 00916-31810 | L24 AUTO | 7307 | 2 |
