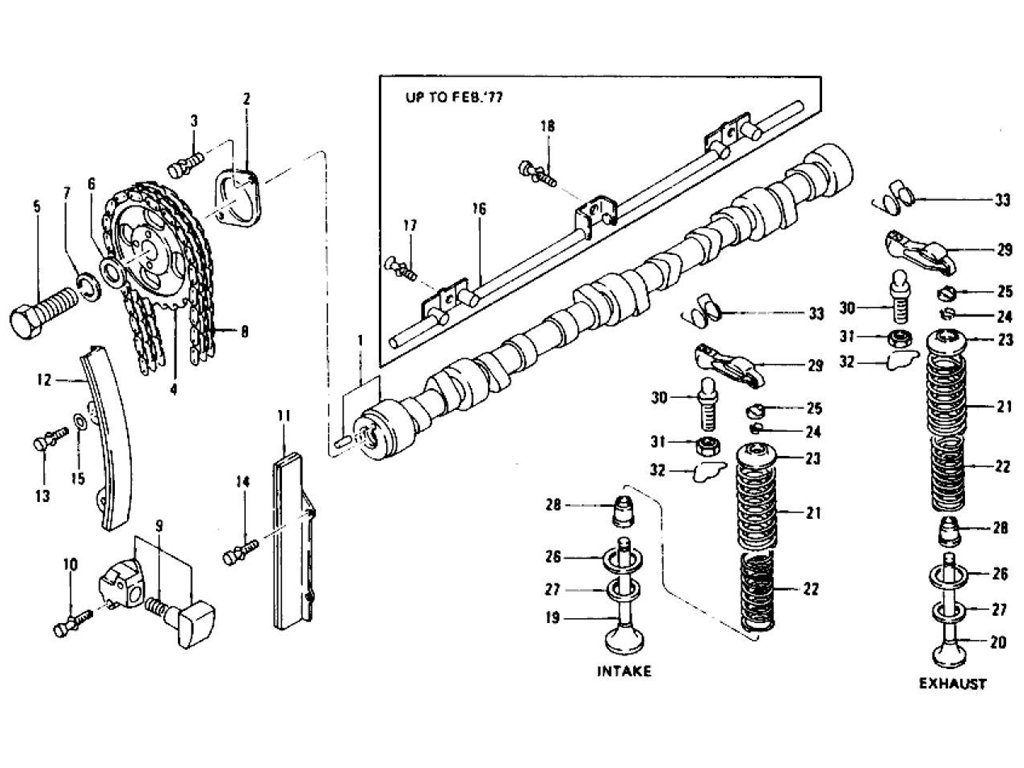

Camshaft & Valve Mechanism L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13001-E4101SV | 13001-E4126 | 7702 | 1 | 13001-E4101 | ||||
| 1 | 13001-E4101SV | 13001-E4182 | 7703 | 1 | No | No | 13001-E4101 | ||
| 2 | PLATE-CAMSHAFT LOCAT | 13010-21000 | 1 | ||||||
| 3 | BOLT-HEX | 08120-61662 | 2 | ||||||
| 4 | SPROCKET-CAMSHAFT | 13024-21000 | 1 | ||||||
| 4 | SPROCKET-CAMSHAFT | 13024-U8000 | 1 | Yes | Yes | 13024-21000 | |||
| 5 | BOLT-CAMSHAFT | 13012-21002 | 1 | ||||||
| 6 | WASHER-CAMSHAFT | 13015-22100 | 1 | ||||||
| 7 | WASHER-SPRING | 08915-14610 | 1 | ||||||
| 8 | CHAIN-CAMSHAFT | 13028-21000 | 1 | ||||||
| 9 | TENSIONER-CHAIN | 13070-E3000 | 1 | ||||||
| 10 | BOLT-HEX. | 08120-63562 | 1 | ||||||
| 11 | GUIDE-CHAIN TENSION | 13085-21002 | 1 | ||||||
| 12 | GUIDE-CHAIN SLACK SI | 13091-N4201 | 1 | ||||||
| 13 | BOLT-HEX. | 08120-61662 | 2 | ||||||
| 14 | BOLT-HEX. | 08120-61462 | 2 | ||||||
| 15 | WASHER-PLAIN | 08915-43610 | 2 | ||||||
| 16 | TUBE-OIL CAM | 13100-E3004 | 7702 | 1 | |||||
| 17 | SCREW-WITH WASHER | 08360-62014 | 7702 | 2 | |||||
| 18 | SCREW-WITH WASHER | 08360-61214 | 7702 | 1 | |||||
| 19 | VALVE-INTAKE | 13201-N4200 | 6 | ||||||
| 20 | VALVE-EXHAUST | 13202-N0400 | 6 | ||||||
| 21 | SPRING-VALVE OUTER | 13203-E4100 | 12 | ||||||
| 22 | SPRING-VALVE INNER | 13204-23000 | 12 | ||||||
| 23 | RETAINER-VALVE SPRIN | 13209-73401 | 7611 | 12 | |||||
| 23 | RETAINER-VALVE SPRIN | 13209-N6800 | 7612 | 12 | Yes | Yes | 13209-73401 | ||
| 24 | COLLET-VALVE | 13210-73400 | 24 | ||||||
| 24 | COLLET-VALVE | 13210-U0100 | 24 | ||||||
| 25 | GUIDE-ROCKER VALVE | 13218-A3500 | 7611 | 12 | |||||
| 25 | GUIDE-ROCKER VALVE | 13218-A3501 | 7612 | 12 | Yes | Yes | 13218-A3500 | ||
| 26 | SEAT-VALVE SPRING OU | 13205-14600 | 12 | ||||||
| 27 | SEAT-VALVE SPRING IN | 13206-23000 | 12 | ||||||
| 28 | SEAL-OIL VALVE | 13207-21002 | 12 | ||||||
| 29 | ASSY-ROCKER VALVE | 13257-21000 | 12 | ||||||
| 30 | PIVOT-VALVE ROCKER | 13234-21000 | 12 | ||||||
| 31 | NUT-LOCK ROCKER PIVO | 13235-U0100 | 12 | ||||||
| 32 | RETAINER-ROCKER SPRI | 13255-21000 | 12 | ||||||
| 32 | RETAINER-ROCKER SPRI | 13255-A8600 | 12 | Yes | Yes | 13255-21000 | |||
| 33 | SPRING-VALVE ROCKER | 13256-21003 | 12 |
