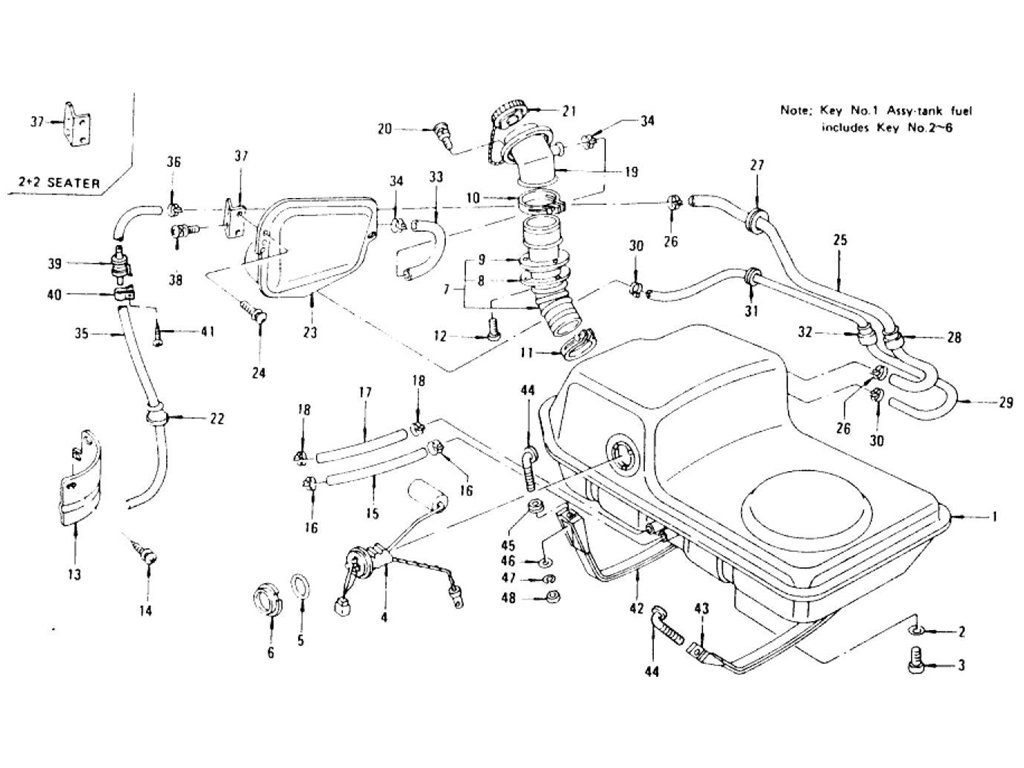

Fuel Tank L28E (To Jul.-'76)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-TANK | 17201-N4200 | 7507 | 1 | |||||
| 1 | ASSY-TANK | 17201-N4201 | 7508 | 1 | Yes | Yes | 17201-N4200 | ||
| 2 | PACKING-DRAIN | 17312-H1000 | 1 | ||||||
| 3 | PLUG-DRAIN | 17310-H1000 | 1 | ||||||
| 4 | UNIT-GAUGE FUEL TAN | 25060-N4201 | 7507 | 1 | |||||
| 4 | UNIT-GAUGE FUEL TAN | 25060-N4202 | 7508 | 1 | Yes | Yes | 25060-N4201 | ||
| 5 | RING-"O" | 17342-18000 | 1 | ||||||
| 6 | PLATE-LOCK GAUGE | 17343-14800 | 1 | ||||||
| 6 | PLATE-LOCK GAUGE | 17343-14801 | 1 | Yes | Yes | 17343-14800 | |||
| 7 | ASSY-HOSE | 17208-N4500 | 1 | ||||||
| 8 | PLATE-FILLER HOSE GR | 17311-E8700 | 1 | ||||||
| 9 | GROMMET-FILLER HOSE | 17312-E8700 | 1 | ||||||
| 10 | CLAMP-HOSE | 01557-00013 | 1 | ||||||
| 11 | CLAMP-HOSE | 08723-17200 | 1 | ||||||
| 12 | SCREW-MACHINE | 01431-00043 | 3 | ||||||
| 13 | PROTECTOR-FILLER HOS | 17270-N3400 | 1 | ||||||
| 14 | SCREW-TAPPING | 08510-41223 | 4 | ||||||
| 15 | HOSE-FUEL RETURN | 08742-20030 | 7608 | 1 | |||||
| 15 | HOSE-FUEL RETURN | 17548-N4206 | 7609 | 1 | Yes | Yes | 08742-20030 | ||
| 16 | CLAMP-HSOE | 08723-11600 | 2 | ||||||
| 17 | HOSE-FUEL TANK TO PU | 17545-N4200 | 7608 | 1 | |||||
| 17 | HOSE-FUEL TANK TO PU | 17545-N4201 | 7609 | 1 | Yes | Yes | 17545-N4200 | ||
| 18 | CLAMP-HOSE | 08723-12200 | 2 | ||||||
| 19 | ASSY-TUBE FILLER UPP | 17220-N4300 | CAL 2 SEATER | 1 | |||||
| 19 | ASSY-TUBE FILLER UPP | 17220-N4301 | CAL 2+2 SEATER | 1 | |||||
| 19 | ASSY-TUBE FILLER UPP | 17220-N4500 | FED 2 SEATER | 1 | |||||
| 19 | ASSY-TUBE FILLER UPP | 17220-N4520 | FED 2+2 SEATER | 1 | |||||
| 20 | SCREW-MACHINE | 08313-61626 | 4 | ||||||
| 21 | ASSY-CAP FILLER | 17251-N4500 | 1 | ||||||
| 21 | ASSY-CAP FILLER | 17251-N4501 | 1 | Yes | Yes | 17251-N4500 | |||
| 22 | GROMMET | 17384-N3700 | 1 | ||||||
| 23 | ASSY-TANK RESERVOIR | 17350-N4500 | 1 | ||||||
| 24 | SCREW-MACHINE | 01431-00093 | 3 | ||||||
| 25 | HOSE-BREATHER F/T TO | 17236-N4500 | 1 | ||||||
| 25 | HOSE-BREATHER F/T TO | 17236-N4501 | 1 | Yes | Yes | 17236-N4500 | |||
| 26 | CLAMP-HOSE | 08723-12400 | 2 | ||||||
| 27 | 44808-6501P | 17386-N4220 | 2+2 SEATER | 1 | |||||
| 28 | GROMMET-FLOOR | 17241-E4100 | 1 | ||||||
| 29 | HOSE-BREATHER F/T TO | 17237-N4500 | 1 | ||||||
| 30 | CLAMP-HOSE | 08723-11400 | 2 | ||||||
| 31 | 06111-1800P | 17385-N4220 | 2+2 SEATER | 1 | |||||
| 32 | GROMMET-FLOOR | 17241-N4500 | 1 | ||||||
| 33 | HOSE-BREATHER NECK T | 17235-N4500 | 1 | ||||||
| 33 | HOSE-BREATHER NECK T | 17235-N4501 | 1 | ||||||
| 34 | CLAMP-HOSE | 08723-12400 | 2 | ||||||
| 35 | HOSE-EVAPO | 08742-20020 | 1 | ||||||
| 36 | CLAMP-HOSE | 08723-11400 | 2 | ||||||
| 37 | ASSY-BRACKET R/T MTG | 78124-N4500 | 2 SEATER | 1 | |||||
| 37 | ASSY-BRACKET R/T MTG | 78124-N4520 | 2+2 SEATER | 1 | |||||
| 38 | SCREW-MACHINE | 08313-61626 | 2 | ||||||
| 39 | ASSY-UNIT | 17331-N4200 | 7508 | 1 | |||||
| 40 | CLIP-HOSE | 17333-N4200 | 7508 | 1 | |||||
| 41 | SCREW-MACHINE | 08360-61414 | 7508 | 2 | |||||
| 42 | ASSY-BAND FUEL TANK | 17410-N4500 | 1 | ||||||
| 43 | ASSY-BAND FUEL TANK | 17405-N4500 | 1 | ||||||
| 44 | BOLT-FUEL TANK MTG | 17415-N3400 | 2 | ||||||
| 45 | NUT-FLANGE | 01221-00053 | 2 | ||||||
| 46 | WASHER-PLAIN | 08915-54010 | 2 | ||||||
| 47 | WASHER-SPRING | 08915-14010 | 2 | ||||||
| 48 | NUT | 08911-24010 | 2 |
