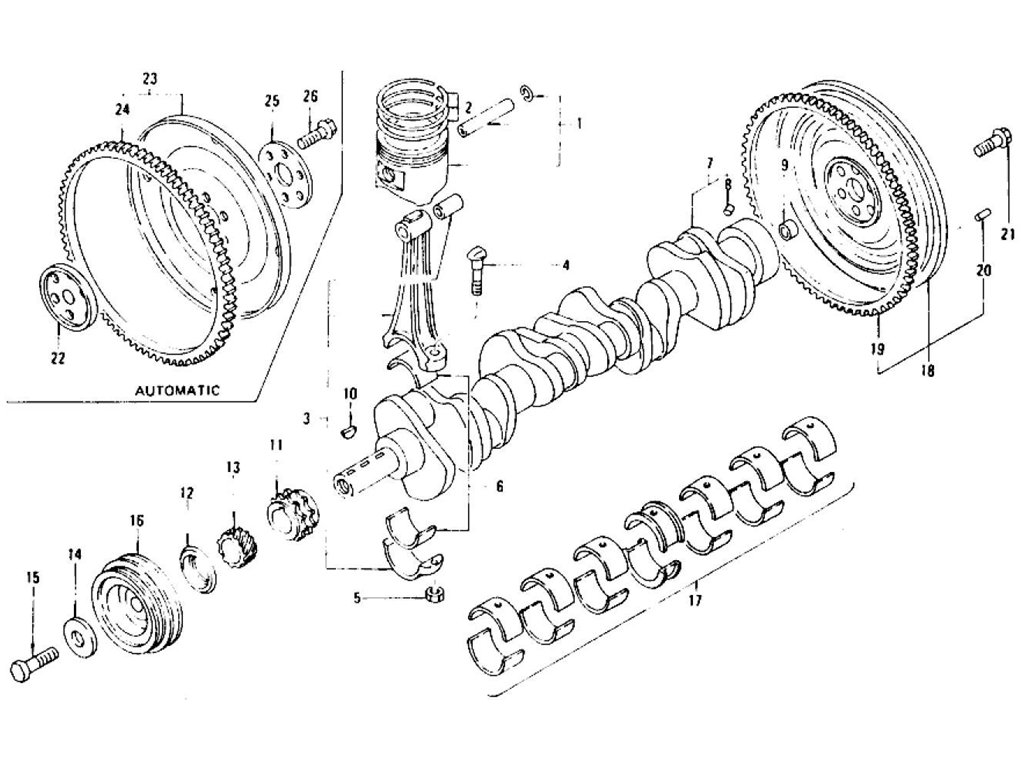

Piston Crankshaft & Connecting Rod L28E
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SET-PISTON WITH PIN 0.5MM OS | 12010-Y4114 | 6 | ||||||
| 1 | SET-PISTON WITH PIN 1.00MM OS | 12010-Y4116 | 6 | ||||||
| 1 | SET-PISTON WITH PIN STD | 12010-Y4111 | 6 | ||||||
| 2 | SET-RING PISTON 0.5M | 12036-N4200 | 1 | ||||||
| 2 | SET-RING PISTON 1.00 | 12038-N4200 | 1 | ||||||
| 2 | SET-RING PISTON STD | 12033-N4200 | 1 | ||||||
| 3 | ASSY-CONNECTING ROD | 12100-A8703 | 6 | ||||||
| 4 | BOLT-CONNECTING ROD | 12109-N0100 | 12 | ||||||
| 4 | BOLT-CONNECTING ROD | 12109-N0110 | 12 | ||||||
| 5 | NUT-CONNECTING ROD B | 12112-N0101 | 12 | ||||||
| 6 | BUSH-CONNECTING ROD 0.06MM US | 12121-73400 | 12 | ||||||
| 6 | BUSH-CONNECTING ROD 0.12MM US | 12122-73400 | 12 | ||||||
| 6 | BUSH-CONNECTING ROD 0.25MM US | 12117-73400 | 12 | ||||||
| 6 | BUSH-CONNECTING ROD 0.50MM US | 12118-73400 | 12 | ||||||
| 6 | BUSH-CONNECTING ROD 0.75MM US | 12119-73400 | 12 | ||||||
| 6 | BUSH-CONNECTING ROD 1.00MM US | 12120-73400 | 12 | ||||||
| 6 | BUSH-CONNECTING ROD STD | 12111-73400 | 12 | ||||||
| 8 | PLUG-TAPER 6 | 12205-21000 | 6 | ||||||
| 9 | BUSH-1ST MOTION SHAF | 32202-30000 | 1 | ||||||
| 10 | KEY-WOOD RUFF 5X16 | 00926-51600 | 3 | ||||||
| 11 | SPRICKET-CRANKSHAFT | 13021-U0100 | 1 | ||||||
| 12 | THROWER-OIL | 12302-A3500 | 1 | ||||||
| 13 | GEAR-OIL PUMP DRIVE | 15043-21000 | 1 | ||||||
| 14 | WASHER-PULLEY BOLT | 12308-65000 | 1 | ||||||
| 15 | BOLT-CRANK PULLEY | 12309-21000 | 1 | ||||||
| 16 | ASSY-PULLEY WITH DAM | 12303-N3600 | 1 | ||||||
| 17 | SET-MAIN BEARING 0.2 | 12209-73400 | 1 | ||||||
| 17 | SET-MAIN BEARING 0.5 | 12210-73400 | 1 | ||||||
| 17 | SET-MAIN BEARING 0.7 | 12211-73400 | 1 | ||||||
| 17 | SET-MAIN BEARING 1.0 | 12212-73400 | 1 | ||||||
| 17 | SET-MAIN BEARING STD | 12207-73400 | 1 | ||||||
| 18 | ASSY-FLYWHEEL | 12310-P0100 | 2 SEATER MANUAL | 1 | |||||
| 18 | ASSY-FLYWHEEL | 12310-N4200 | 2+2 SEATER MANUAL | 1 | |||||
| 19 | GEAR-RING | 12312-A8600 | MANUAL | 1 | |||||
| 20 | DOWEL-CLUTCH TO FLYW | 12313-10600 | MANUAL | 3 | |||||
| 21 | BOLT-FLYWHEEL | 12315-A8600 | MANUAL | 7503 | 6 | ||||
| 21 | BOLT-FLYWHEEL | 12315-U6000 | MANUAL | 7504 | 6 | Yes | Yes | 12315-A8600 | |
| 22 | PILOT-CONVERTER | 12330-E3000 | AUTOMATIC | 1 | |||||
| 23 | ASSY-DRIVE PLATE & G | 12331-E3000 | AUTOMATIC | 1 | |||||
| 23 | ASSY-DRIVE PLATE & G | 12331-U9500 | AUTOMATIC | 1 | Yes | Yes | 12331-E3000 | ||
| 24 | GEAR-RING | 12312-A8600 | AUTOMATIC | 1 | |||||
| 25 | PLATE-CRANK TO CONVE | 12333-A1000 | AUTOMATIC | 1 | |||||
| 26 | BOLT-FLYWHEEL | 12315-21001 | AUTOMATIC | 7504 | 6 | ||||
| 26 | BOLT-FLYWHEEL | 12315-21801 | AUTOMATIC | 7505 | 6 | Yes | Yes | 12315-21001 |
