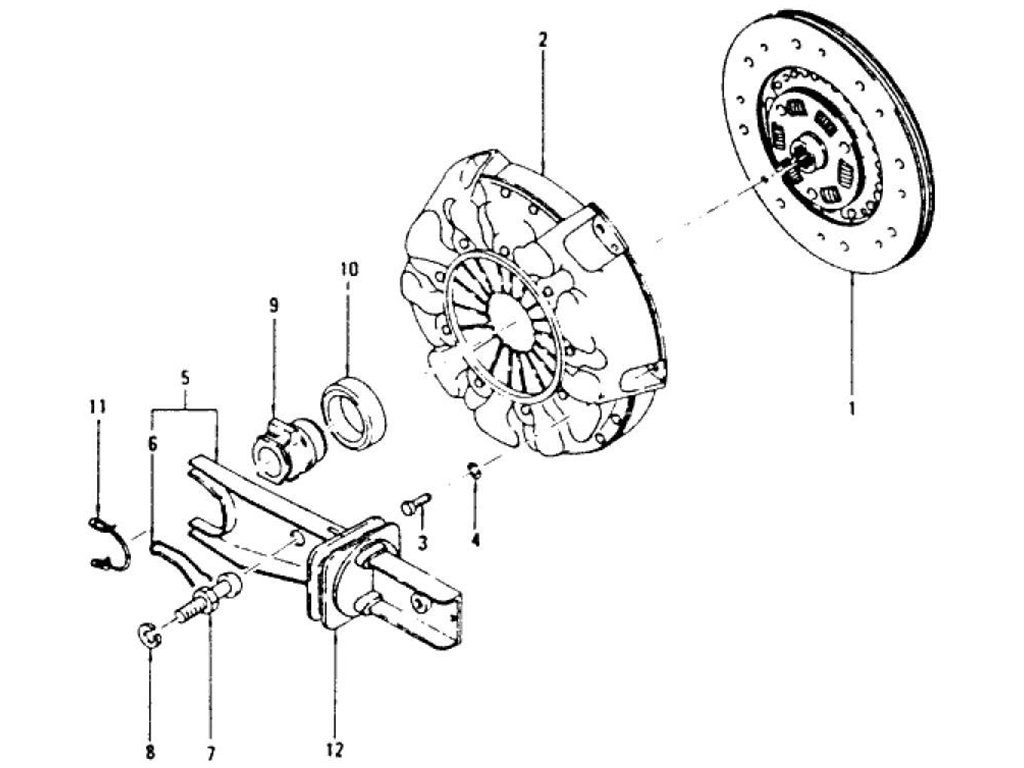

Clutch Disc, Clutch Cover & Drawal Lever
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-DISC CLUTCH | 30100-E4300 | MANUAL | 1 | |||||
| 1 | ASSY-DISC CLUTCH | 30100-E4301 | MANUAL | 1 | Yes | Yes | 30100-E4300 | ||
| 1 | ASSY-DISC CLUTCH | 30100-Y4000 | MANUAL | 1 | Yes | Yes | 30100-E4301 | ||
| 1 | ASSY-DISC CLUTCH | 30100-Y6800 | MANUAL | 7411 | 1 | Yes | Yes | 30100-E4301 | |
| 1 | ASSY-DISC CLUTCH | 30100-Y4101 | MANUAL 2 SEATER | 7412 | 7509 | 1 | No | No | 30100-Y4000 |
| 1 | ASSY-DISC CLUTCH | 30100-Y4100 | MANUAL 2 SEATER | 7510 | 1 | Yes | Yes | 30100-Y4101 | |
| 1 | ASSY-DISC CLUTCH | 30100-N4201 | MANUAL 2+2 SEATER | 7411 | 7509 | 1 | |||
| 1 | ASSY-DISC CLUTCH | 30100-N4202 | MANUAL 2+2 SEATER | 7510 | 1 | Yes | Yes | 30100-N4201 | |
| 2 | ASSY-COVER CLUTCH | 30210-E4301 | MANUAL | 1 | |||||
| 2 | ASSY-COVER CLUTCH | 30210-E4302 | MANUAL | 7307 | 1 | Yes | Yes | 30210-E4301 | |
| 2 | ASSY-COVER CLUTCH | 30210-N4210 | MANUAL 2 SEATER | 7412 | 1 | No | No | 30210-N3100 | |
| 2 | ASSY-COVER CLUTCH | 30210-N3100 | MANUAL 2 SEATER & 2+2 SEATER | 7308 | 1 | 30210-E4302 | |||
| 2 | ASSY-COVER CLUTCH | 30210-N4200 | MANUAL 2+2 SEATER | 7412 | 1 | No | No | 30210-N3100 | |
| 2 | ASSY-COVER CLUTCH (7 | 30210-E4110 | OP (MANUAL) | 1 | |||||
| 3 | SCREW-CAP CLUTCH COV | 30223-E4100 | MANUAL | 6 | |||||
| 4 | WASHER-SPRING LOCK | 08915-23810 | MANUAL | 6 | |||||
| 5 | LEVER-WITH DRAWAL CL | 30531-78002 | MANUAL | 1 | |||||
| 5 | LEVER-WITH DRAWAL CL | 30531-78052 | MANUAL | 1 | Yes | Yes | 30531-78002 | ||
| 5 | LEVER-WITH DRAWAL CL | 30531-78055 | MANUAL | 7206 | 1 | Yes | Yes | 30531-78052 | |
| 5 | LEVER-WITH DRAWAL CL | 30531-P0151 | MANUAL | 7207 | 1 | No | No | 30531-78055 | |
| 6 | SPRING-RETAINER WITH | 30534-21000 | MANUAL | 7108 | 1 | ||||
| 6 | SPRING-RETAINER WITH | 30534-E9000 | MANUAL | 7109 | 1 | No | No | 30534-21000 | |
| 7 | PIN-BALL WITH DRAWAL | 30537-E3200 | MANUAL | 7108 | 1 | ||||
| 7 | PIN-BALL WITH DRAWAL | 30537-21010 | MANUAL | 7109 | 1 | No | No | 30537-E3200 | |
| 8 | WASHER-SPRING LOCK | 08915-14010 | MANUAL | 1 | |||||
| 9 | SLEEVE-CLUTCH RELEAS | 30501-19900 | MANUAL | 1 | |||||
| 9 | SLEEVE-CLUTCH RELEAS | 30501-U0200 | MANUAL | 7108 | 1 | Yes | Yes | 30501-19900 | |
| 9 | SLEEVE-CLUTCH RELEAS | 30501-A6801 | MANUAL | 7109 | 7411 | 1 | Yes | Yes | 30501-U0200 |
| 9 | SLEEVE-CLUTCH RELEAS | 30501-N1600 | MANUAL 2 SEATER | 7412 | 1 | No | No | 30501-A6801 | |
| 9 | SLEEVE-CLUTCH RELEAS | 30501-K0401 | MANUAL 2+2 SEATER | 1 | Yes | Yes | 30501-K0400 | ||
| 9 | SLEEVE-CLUTCH RELEAS | 30501-K0400 | MANUAL 2+2 SEATER | 7412 | 1 | No | No | 30501-A6801 | |
| 10 | BEARING-CLUTCH RELEA | 30502-21000 | MANUAL | 1 | |||||
| 11 | SPRING-HOLDER BEARIN | 30514-14600 | MANUAL | 1 | |||||
| 12 | COVER-DUST WITH DRAW | 30542-21000 | MANUAL | 7108 | 1 | ||||
| 12 | COVER-DUST WITH DRAW | 30542-E9000 | MANUAL | 7109 | 1 | No | No | 30542-21000 |
