From Jun.-'75
Search Item:Key: Part Name:  Part Number:

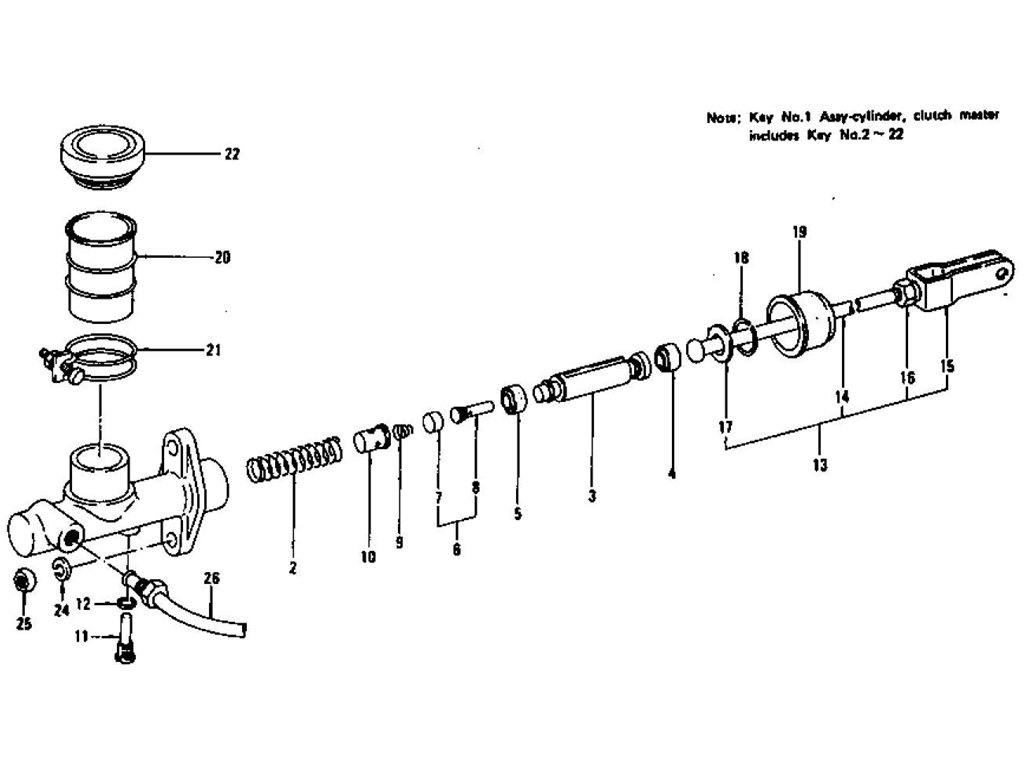

Clutch Master Cylinder (From Jun.-'75)

From Jun.-'75
Parts List
KeyPart NamePart NumberModelFromToQtyNewerFormerSuperceded
  1ASSY-CYLINDER CLUTCH30610-N4000MANUAL750675091
  1ASSY-CYLINDER CLUTCH30610-N4001MANUAL75101YesYes30610-N4000
  2SPRING-RETURN46061-30000MANUAL75061
  3PISTON46077-08700MANUAL75061
  4CUP-SECONDARY46046-H5800MANUAL75061YesYes46065-15800
  4CUP-SECONDARY46065-15800MANUAL75061
  5CUP-PRIMARY46064-30002MANUAL75061
  6COMP-VALVE SUPPLY46073-30800MANUAL75061
  7VALVE-SUPPLY46074-30800MANUAL75061
  8ROD-VALVE SUPPLY46059-30800MANUAL75061
  9SPRING-VALVE46056-A1100MANUAL75061
  10SEAT-SPRING46076-30800MANUAL75061
  11STOPPER-VALVE SUPPLY46032-27260MANUAL75061
  12GASKET46079-27260MANUAL75061
  13COMP-ROD PUSH30631-N4000MANUAL75061
  14ROD-PUSH30628-H2500MANUAL75061
  15HEAD-ROD PUSH30629-M1000MANUAL75061
  16NUT-LOCK46103-E4101MANUAL75061
  17PLATE-PISTON STOP46082-35200MANUAL75061
  18RING-PISTON STOP46070-27260MANUAL75061
  19BOOT46100-28600MANUAL75061
  20RESERVOIR-OIL46090-21000MANUAL75061
  21BAND-RESERVOIR46016-12200MANUAL75061
  22CAP-RESERVOIR46020-R0100MANUAL750675091
  22CAP-RESERVOIR46020-N6000MANUAL75101YesYes46020-R0100
  23KIT-REPAIR CLUTCH MA30611-N4027MANUAL1YesYes30611-N4025
  23KIT-REPAIR CLUTCH MA30610-N4025MANUAL75061
  23KIT-REPAIR CLUTCH MA30611-N4025MANUAL75061YesYes30610-N4025
  24WASHER-LOCK M808915-23810MANUAL75062
  25NUT-HEX M8X1.2508911-10810MANUAL75062
  26ASSY-TUBE CLUTCH MAS30650-N4201MANUAL750676071
  26ASSY-TUBE CLUTCH MAS30650-N4202MANUAL76081YesYes30650-N4201
