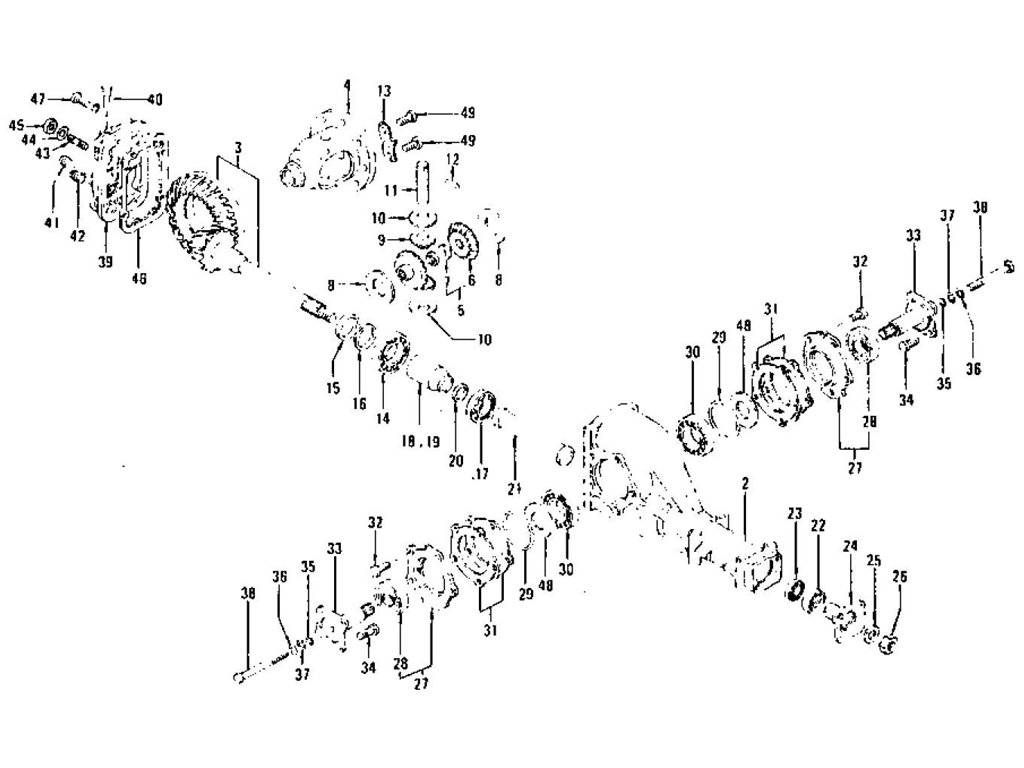

Differential Gear, Pinion & Cover (R180)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-FINAL DRIVE 39/ | 38300-78701 | AUTOMATIC | 1 | |||||
| 1 | ASSY-FINAL DRIVE 39/ | 38300-U3100 | AUTOMATIC | 7607 | 1 | Yes | Yes | 38300-78701 | |
| 1 | ASSY-FINAL DRIVE 39/ | 38300-U3105 | AUTOMATIC | 7608 | 1 | Yes | Yes | 38300-U3100 | |
| 1 | ASSY-FINAL DRIVE 39/ | 38300-E4601 | MANUAL | 1 | |||||
| 1 | ASSY-FINAL DRIVE 39/ | 38300-U3000 | MANUAL | 1 | Yes | Yes | 38300-E4601 | ||
| 2 | HOUSING-FINAL DRIVE | 38311-78600 | 7607 | 1 | |||||
| 2 | HOUSING-FINAL DRIVE | 38311-E4600 | 1 | ||||||
| 2 | HOUSING-FINAL DRIVE | 38311-U3000 | AUTOMATIC | 7608 | 1 | Yes | Yes | 38311-78600 | |
| 3 | SET-HYPOID GEAR & PI | 38100-78700 | AUTOMATIC | 7607 | 1 | ||||
| 3 | SET-HYPOID GEAR & PI | 38100-U3100 | AUTOMATIC | 7608 | 1 | No | No | 38100-78700 | |
| 3 | SET-HYPOID GEAR & PI | 38100-E4600 | MANUAL | 1 | |||||
| 4 | CASE-DIFFERENTIAL | 38421-U3000 | AUTOMATIC | 7608 | 1 | No | No | 38421-78500 | |
| 4 | CASE-DIFFRENTIAL | 38421-78500 | 7607 | 1 | |||||
| 5 | ASSY-GEAR SIDE DIFFE | 38422-78501 | 7607 | 1 | |||||
| 5 | ASSY-GEAR SIDE DIFFE | 38422-U3000 | AUTOMATIC | 7608 | 1 | No | No | 38422-78501 | |
| 6 | GEAR-SIDE DIFFERENTI | 38422-78501 | 2 | Yes | Yes | 38423-78501 | |||
| 6 | GEAR-SIDE DIFFERENTI | 38422-U3000 | 2 | No | No | 38422-78501 | |||
| 6 | GEAR-SIDE DIFFERENTI | 38423-78501 | 2 | ||||||
| 7 | NUT-LOCK SIDE FLANGE | 38227-21000 | 2 | ||||||
| 8 | WASHER-THRUST SIDE G | 38424-21000 | 7607 | 2 | |||||
| 8 | WASHER-THRUST SIDE G | 38424-21001 | 7607 | 2 | |||||
| 8 | WASHER-THRUST SIDE G | 38424-21002 | 7607 | 2 | |||||
| 8 | WASHER-THRUST SIDE G | 38424-U3000 | AUTOMATIC | 7608 | 2 | No | No | 38424-21000 | |
| 8 | WASHER-THRUST SIDE G | 38424-U3001 | AUTOMATIC | 7608 | 2 | No | No | 38424-21001 | |
| 8 | WASHER-THRUST SIDE G | 38424-U3002 | AUTOMATIC | 7608 | 2 | No | No | 38424-21002 | |
| 9 | MATE-PINION DIFFEREN | 38425-78501 | 7607 | 2 | |||||
| 9 | MATE-PINION DIFFEREN | 38425-U3000 | AUTOMATIC | 7608 | 2 | No | No | 38425-78501 | |
| 10 | WASHER-THRUST PINION | 38426-78500 | 7607 | 2 | |||||
| 10 | WASHER-THRUST PINION | 38426-U3000 | AUTOMATIC | 7608 | 2 | No | No | 38426-78500 | |
| 11 | SHAFT-PINION MATE | 38427-78500 | 7607 | 1 | |||||
| 11 | SHAFT-PINION MATE | 38427-U3000 | 7608 | 1 | No | No | 38427-78500 | ||
| 12 | PIN-LOCK PINION SHAF | 38428-25660 | 1 | ||||||
| 12 | PIN-LOCK PINION SHAF | 38428-P0100 | 1 | Yes | Yes | 38428-25660 | |||
| 13 | STRAP-LOCK BOLT | 38103-78500 | 7607 | 4 | |||||
| 13 | STRAP-LOCK BOLT | 38103-U3000 | AUTOMATIC | 7608 | 4 | No | No | 38103-78500 | |
| 14 | ASSY-BEARING PINION | 38120-61000 | 1 | ||||||
| 15 | WASHER-ADJUST DRIV | 38153-78500 | 7107 | 1 | |||||
| 15 | WASHER-ADJUST DRIVE | 38151-78500 | 7107 | 1 | |||||
| 15 | WASHER-ADJUST DRIVE | 38152-78500 | 7107 | 1 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-B4017 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-B4018 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-B4019 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-B4020 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4600 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4601 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4602 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4603 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4604 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4605 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4606 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4607 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4608 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4609 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4610 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4611 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4612 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4613 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4614 | 7108 | 0 | |||||
| 15 | WASHER-ADJUST DRIVE | 38154-E4615 | 7108 | 0 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78500 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78501 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78502 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78503 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78504 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78505 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78506 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78507 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78508 | 7107 | 1 | |||||
| 16 | SHIM-ADJUST DRIVE PI | 38154-78509 | 7107 | 1 | |||||
| 17 | ASSY-BEARING PINION | 38140-13201 | 1 | ||||||
| 18 | SPACER-BEARING DRIVE | 38130-78500 | 1 | ||||||
| 19 | SPACER-BEARING DRIVE | 38131-78500 | 1 | ||||||
| 19 | SPACER-BEARING DRIVE | 38132-78500 | 1 | ||||||
| 19 | SPACER-BEARING DRIVE | 38133-78500 | 1 | ||||||
| 19 | SPACER-BEARING DRIVE | 38134-78500 | 1 | ||||||
| 19 | SPACER-BEARING DRIVE | 38135-78500 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38127-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38128-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38129-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38130-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38131-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38132-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38133-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38134-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38135-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38136-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38137-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38138-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38139-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38140-09400 | 1 | ||||||
| 20 | WASHER-ADJUST PINION | 38141-09400 | 1 | ||||||
| 21 | SPACER-BEARING FRONT | 38169-78600 | 1 | ||||||
| 22 | SEAL-OIL DRIVE PINIO | 38332-21100 | 7609 | 1 | |||||
| 22 | SEAL-OIL DRIVE PINIO | 38189-U3000 | 7610 | 1 | Yes | Yes | 38332-21100 | ||
| 23 | BEARING-BALL | 38335-21100 | 1 | ||||||
| 24 | ASSY-FLANGE COMPANIO | 38210-21100 | 1 | ||||||
| 24 | ASSY-FLANGE COMPANIO | 38210-E7401 | 1 | Yes | Yes | 38210-21100 | |||
| 25 | WASHER-DRIVE PINION | 38215-21000 | 7204 | 1 | |||||
| 26 | NUT-DRIVE PINION | 38216-21000 | 7204 | 1 | |||||
| 26 | NUT-DRIVE PINION (SE | 38216-U1500 | 7205 | 1 | Yes | Yes | 38216-21000 | ||
| 26 | NUT-DRIVE PINION (SE | 38216-U3000 | 7805 | 1 | Yes | Yes | 38216-U1500 | ||
| 27 | ASSY-RETAINER SIDE B | 38340-21000 | 2 | ||||||
| 28 | SEAL-OIL SIDE BEARIN | 38342-21000 | 2 | ||||||
| 29 | RING-"O" SIDE RETAIN | 38343-21000 | 2 | ||||||
| 30 | ASSY-BEARING DEFFERN | 40210-85000 | 2 | Yes | Yes | 38440-25660 | |||
| 30 | ASSY-BEARING DIFFERE | 38440-25660 | 2 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21001 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21002 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21003 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21004 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21005 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21006 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21007 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21008 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21100 | 0 | Yes | Yes | 38453-21001 | |||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21101 | 0 | ||||||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21102 | 0 | Yes | Yes | 38453-21006 | |||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21103 | 0 | Yes | Yes | 38453-21007 | |||
| 31 | SHIM-ADJUST SIDE BEA | 38453-21104 | 0 | Yes | Yes | 38453-21008 | |||
| 32 | BOLT-HEX M8X1.25 | 08110-82014 | 10 | ||||||
| 32 | BOLT-HEX M8X1.25 | 08110-82062 | 10 | Yes | Yes | 08110-82014 | |||
| 33 | ASSY-FLANGE SIDE | 38220-78501 | 2 | ||||||
| 34 | BOLT-FIX DRIVE SHAFT | 38228-21000 | 8 | ||||||
| 35 | RING-"O" SIDE FLANGE | 38223-21000 | 2 | ||||||
| 36 | WASHER-PLAIN | 08915-44010 | 2 | ||||||
| 37 | WASHER-SPRING | 08915-24000 | 2 | ||||||
| 37 | WASHER-SPRING | 08915-24010 | 2 | Yes | Yes | 08915-24000 | |||
| 38 | BOLT-FIX SIDE FLANGE | 38226-21000 | 2 | ||||||
| 39 | COVER-REAR FINAL DRI | 38351-78500 | 1 | ||||||
| 40 | BREATHER | 38352-78500 | 1 | ||||||
| 40 | BREATHER | 38352-78600 | 1 | Yes | Yes | 38352-78500 | |||
| 41 | PLUG-FILLER FINAL DR | 00931-11210 | 1 | ||||||
| 41 | PLUG-FILLER FINAL DR | 38357-E4600 | 1 | Yes | Yes | 00931-11210 | |||
| 42 | ASSY-PLUG DRAIN | 32103-E4600 | 7201 | 1 | |||||
| 42 | ASSY-PLUG DRAIN | 32103-U8400 | 1 | Yes | Yes | 32103-14600 | |||
| 42 | ASSY-PLUG DRAIN | 32103-14600 | 7202 | 1 | Yes | Yes | 32103-E4600 | ||
| 43 | STUD | 08229-22810 | 2 | ||||||
| 44 | WASHER-SPECIAL | 54474-E4100 | 2 | ||||||
| 45 | NUT-HEX SELF LOCK S | 08912-84210 | 2 | ||||||
| 46 | PACKING-REAR COVER | 38353-78500 | 1 | ||||||
| 47 | BOLT-HEX M10X1.25 | 08114-03010 | 8 | ||||||
| 48 | WASHER-REAR AXLE BEA | 43211-A7100 | 2 | Yes | Yes | 43211-E4100 | |||
| 48 | WASHER-REAR AXLE BEA | 43211-E4100 | 2 | ||||||
| 49 | BOLT-DRIVE GEAR | 38102-22900 | 8 | ||||||
| 49 | BOLT-DRIVE GEAR | 38102-P0100 | 8 | Yes | Yes | 38102-22900 |
