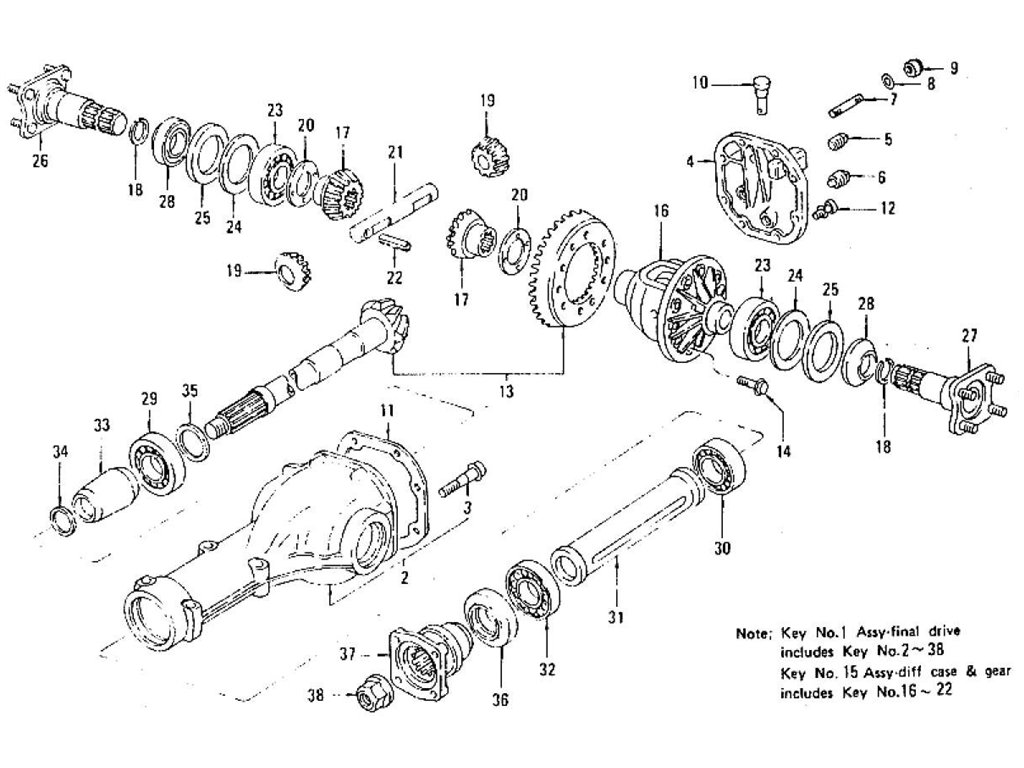

Differential Gear, Pinion & Cover (R200)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-DINAL DRIVE 37/ | 38300-N3205 | MANUAL 2+2 SEATER | 7409 | 7411 | 1 | No | No | 38300-N3200 |
| 1 | ASSY-DINAL DRIVE 39/ | 38300-N3306 | 7412 | 7507 | 1 | No | No | 38300-N3205 | |
| 1 | ASSY-FINAL DRIVE 37/ | 38300-N3200 | MANUAL 2+2 SEATER | 7408 | 1 | ||||
| 1 | ASSY-FINAL DRIVE 39/ | 38300-N3305 | 7508 | 1 | No | No | 38300-N3306 | ||
| 2 | COMP-HOUSING FINAL D | 38310-N3100 | 1 | ||||||
| 3 | BOLT-BEARING CAP (M1 | 38315-N3100 | 4 | ||||||
| 4 | SERVICE FILE COVER-REAR | 38351-N3100 | 1 | ||||||
| 5 | PLUG-FILLER | 00931-11210 | 1 | ||||||
| 5 | PLUG-FILLER | 38357-E4600 | 1 | Yes | Yes | 00931-11210 | |||
| 6 | ASSY-PLUG DRAIN | 32103-14600 | 1 | Yes | Yes | 32103-E4600 | |||
| 6 | ASSY-PLUG DRAIN | 32103-E4600 | 1 | ||||||
| 6 | ASSY-PLUG DRAIN | 32103-U8400 | 1 | Yes | Yes | 32103-14600 | |||
| 7 | STUD-REAR COVER | 38354-N3100 | 2 | ||||||
| 8 | WASHER-SPECIAL | 54474-N3100 | 2 | ||||||
| 9 | NUT-SELF LOCKING | 08912-84410 | 2 | ||||||
| 10 | BREATHER | 38352-78500 | 7510 | 1 | |||||
| 10 | BREATHER | 38352-78600 | 7511 | 1 | Yes | Yes | 38352-78500 | ||
| 11 | PACKING-REAR COVER | 38353-N3100 | 1 | ||||||
| 12 | BOLT-HEX WITH WASHER | 08120-82562 | 8 | ||||||
| 13 | SET-HYPOID GEAR 37/1 | 38100-N3201 | MANUAL 2+2 SEATER | 1 | |||||
| 13 | SET-HYPOID GEAR 37/1 | 38100-N3205 | MANUAL 2+2 SEATER | 7409 | 7411 | 1 | 38100-N3200 | ||
| 13 | SET-HYPOID GEAR 39/1 | 38100-N3305 | 7412 | 1 | No | No | 38100-N3205 | ||
| 13 | SET-HYPOID GERA 37/1 | 38100-N3200 | MANUAL 2+2 SEATER | 7408 | 1 | Yes | Yes | 38100-N3201 | |
| 14 | BOLT-DRIVE GEAR | 38102-N3100 | 10 | ||||||
| 15 | ASSY-DIFF CASE & GEA | 38420-N3100 | 1 | ||||||
| 16 | CASE-DIFF | 38421-N3100 | 1 | ||||||
| 17 | ASSY-SIDE GEAR | 38422-N3100 | 2 | ||||||
| 18 | CIRCLIP-SIDE YOKE | 38225-N3100 | 2 | ||||||
| 19 | MATE-PINION DIFF BEV | 38425-N3100 | 2 | ||||||
| 20 | WASHER-THRUST SIDE ( | 38424-N3100 | 2 | ||||||
| 20 | WASHER-THRUST SIDE ( | 38424-N3101 | 2 | ||||||
| 20 | WASHER-THRUST SIDE ( | 38424-N3102 | 2 | ||||||
| 21 | SHAFT-PINION MALE | 38427-N3101 | 1 | ||||||
| 22 | PIN-LOCK MATE SHAFT | 38428-U1500 | 1 | ||||||
| 23 | ASSY-BEARING DIFF SI | 38440-N3100 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3100 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3101 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3102 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3103 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3104 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3105 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3106 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3107 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3108 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3109 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3110 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3111 | 2 | ||||||
| 24 | WASHER-ADJUST DIFF S | 38453-N3112 | 2 | ||||||
| 25 | SPACER-DIFF SIDE | 38454-N3100 | 1 | ||||||
| 26 | ASSY-FLANGE SIDE RH | 38220-N3100 | 1 | ||||||
| 27 | ASSY-FLANGE SIDE LH | 38230-N3100 | 1 | ||||||
| 28 | SEAL-OIL SIDE FLANGE | 38342-N3100 | 2 | ||||||
| 29 | ASSY-BEARING PINION | 38120-61000 | 1 | ||||||
| 30 | ASSY-BEARING PINION | 38120-13201 | 1 | ||||||
| 31 | SPACER-PINION PILOT | 38169-N3100 | 1 | ||||||
| 32 | ASSY-BEARING BALL JO | 38335-N3100 | 7408 | 1 | |||||
| 32 | ASSY-BEARING BALL PI | 38335-N3200 | 7409 | 1 | No | No | 38335-N3100 | ||
| 33 | SPACER-PINION BEARIN | 38165-61001 | 1 | ||||||
| 33 | SPACER-PINION BEARIN | 38165-B4002 | 1 | ||||||
| 33 | SPACER-PINION BEARIN | 38165-B4003 | 1 | ||||||
| 33 | SPACER-PINION BEARIN | 38165-B4004 | 1 | ||||||
| 33 | SPACER-PINION BEARIN | 38166-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38125-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38126-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38127-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38128-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38129-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38130-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38131-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38132-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38133-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38134-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38135-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38136-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38137-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38138-61001 | 1 | ||||||
| 34 | WASHER-ADJUST PINION | 38139-61001 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-B4017 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-B4018 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-B4019 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-B4020 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4600 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4601 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4602 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4603 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4604 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4605 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4606 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4607 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4608 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4609 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4610 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4611 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4612 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4613 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4614 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38154-E4615 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38453-28500 | 1 | ||||||
| 35 | WASHER-ADJUST DRIVE | 38454-28500 | 1 | ||||||
| 36 | SEAL-OIL DRIVE PINIO | 38189-N3100 | 1 | ||||||
| 37 | ASSY-FLANGE COMPANIO | 38210-N3100 | 7411 | 1 | |||||
| 37 | ASSY-FLANGE COMPANIO | 38210-Y0800 | 7412 | 7507 | 1 | No | No | 38210-N3100 | |
| 37 | ASSY-FLANGE COMPANIO | 38210-N3100 | 7508 | 1 | No | No | 38210-Y0800 | ||
| 38 | NUT-DRIVE PINION | 38216-N3100 | 1 |
