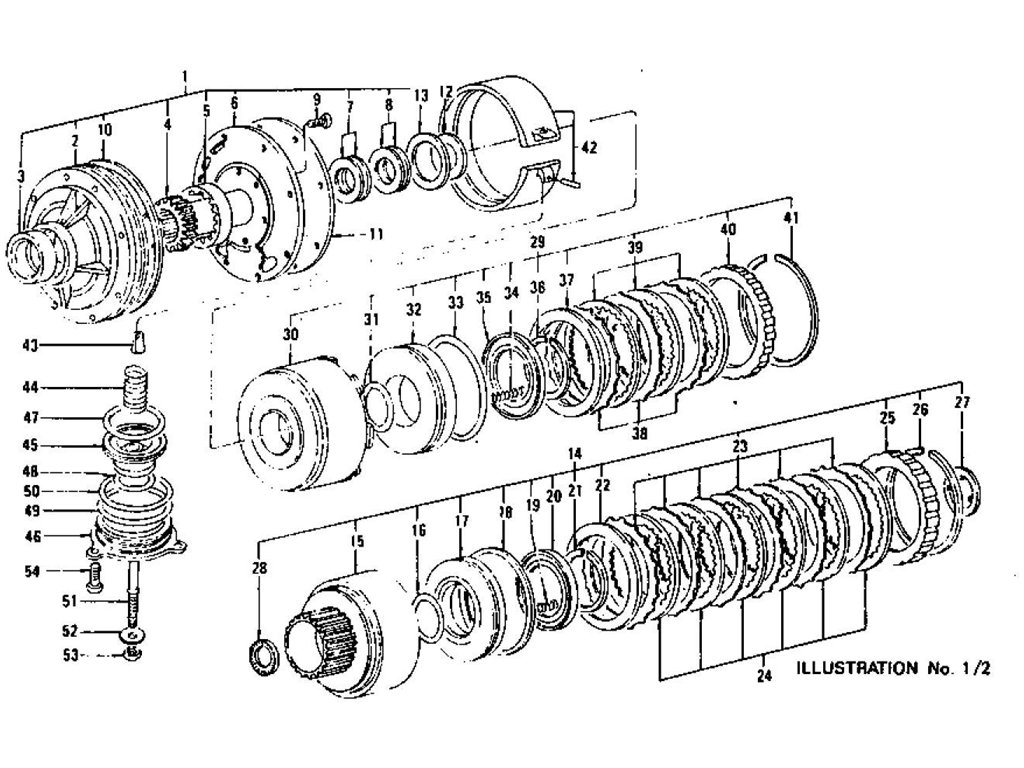

Oil Pump Clutch & Brake (Automatic-3N71B) (From Apr.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-PUMP OIL | 31340-X0100 | AUTOMATIC | 1 | |||||
| 1 | ASSY-PUMP OIL | 31340-X0101 | AUTOMATIC | 1 | Yes | Yes | 31340-X0100 | ||
| 2 | ASSY-HOUSING OIL PUM | 31341-X0100 | AUTOMATIC | 1 | |||||
| 3 | SEAL-HOUSING | 31344-X0100 | AUTOMATIC | 1 | |||||
| 3 | SEAL-HOUSING | 31344-X0101 | AUTOMATIC | 1 | Yes | Yes | 31344-X0100 | ||
| 4 | GEAR-INNER OIL PUMP | 31346-X0100 | AUTOMATIC | 1 | |||||
| 4 | GEAR-INNER OIL PUMP | 31346-X0101 | AUTOMATIC | 1 | |||||
| 4 | GEAR-INNER OIL PUMP | 31346-X0102 | AUTOMATIC | 1 | |||||
| 5 | GEAR-OUTER OIL PUMP | 31347-X0100 | AUTOMATIC | 1 | |||||
| 5 | GEAR-OUTER OIL PUMP | 31347-X0101 | AUTOMATIC | 1 | |||||
| 5 | GEAR-OUTER OIL PUMP | 31347-X0102 | AUTOMATIC | 1 | |||||
| 6 | ASSY-COVER OIL PUMP | 31350-X0100 | AUTOMATIC | 1 | |||||
| 6 | ASSY-COVER OIL PUMP | 31350-X0101 | AUTOMATIC | 1 | Yes | Yes | 31350-X0100 | ||
| 7 | RING-SEAL (44) | 31361-X0100 | AUTOMATIC | 2 | |||||
| 8 | RING-SEAL (43) | 31362-X0100 | AUTOMATIC | 2 | |||||
| 9 | BOLT | 08120-61810 | AUTOMATIC | 5 | |||||
| 10 | SEAL-LATHE CUT RING | 31363-X0100 | AUTOMATIC | 1 | |||||
| 11 | GASKET-OIL PUMP | 31366-X0100 | AUTOMATIC | 1 | |||||
| 11 | GASKET-OIL PUMP | 31366-X0101 | AUTOMATIC | 1 | Yes | Yes | 31366-X0100 | ||
| 12 | RACE-BEARING PUMP CO | 31556-X0100 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-X0101 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-X0102 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-X0103 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-X0104 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-X0105 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST T=1.5 | 31528-X0106 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST T=1.7 | 31528-X0105 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST T=1.9 | 31528-X0100 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST T=2.1 | 31528-X0101 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST T=2.3 | 31528-X0102 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST T=2.5 | 31528-X0103 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST T=2.7 | 31528-X0104 | AUTOMATIC | 1 | |||||
| 14 | ASSY-CLUTCH REAR (6) | 31540-X0500 | AUTOMATIC | 1 | |||||
| 15 | DRUM-REAR CLUTCH | 31542-X0500 | AUTOMATIC | 1 | |||||
| 16 | SEAL-O RING (54D) | 31517-X0100 | AUTOMATIC | 1 | |||||
| 17 | ASSY-PISTON CLUTCH | 31514-X0101 | AUTOMATIC | 7211 | 1 | ||||
| 17 | ASSY-PISTON CLUTCH | 31514-X0102 | AUTOMATIC | 7212 | 7406 | 1 | Yes | Yes | 31514-X0101 |
| 17 | ASSY-PISTON CLUTCH | 31514-X0103 | AUTOMATIC | 7407 | 1 | Yes | Yes | 31514-X0102 | |
| 18 | SEAL-LATHE CUT RING | 31516-X0100 | AUTOMATIC | 1 | |||||
| 19 | SPRING-PISTON RETURN | 31521-X0100 | AUTOMATIC | 10 | |||||
| 20 | RETAINER-SPRING | 31552-X0100 | AUTOMATIC | 7211 | 1 | ||||
| 20 | RETAINER-SPRING | 31552-X0102 | AUTOMATIC | 7212 | 1 | Yes | Yes | 31552-X0100 | |
| 21 | RING-SNAP (54S) | 31523-X0100 | AUTOMATIC | 1 | |||||
| 22 | PLATE-DISHED (115) | 31529-X0100 | AUTOMATIC | 1 | |||||
| 23 | PLATE-DRIVEN (115) | 31536-X0100 | AUTOMATIC | 5 | |||||
| 24 | ASSY-PLATE DRIVE (11 | 31532-X0100 | AUTOMATIC | 7702 | 6 | ||||
| 24 | ASSY-PLATE DRIVE (11 | 31532-X0101 | AUTOMATIC | 7703 | 1 | Yes | Yes | 31532-X0100 | |
| 25 | partNumber | PLATE-RETAINING (115 | |||||||
| 25 | partNumber | 31567-X0300 | AUTOMATIC | 1 | |||||
| 26 | RING-SNAP (118) | 31538-X0100 | AUTOMATIC | 1 | |||||
| 27 | RACE-BEARING REAR CL | 31439-X0100 | AUTOMATIC | 1 | |||||
| 27 | RACE-BEARING REAR CL | 31489-X0101 | AUTOMATIC | 7705 | 1 | Yes | Yes | 31439-X0100 | |
| 28 | BEARING-NEEDLE THRUS | 31555-X0100 | AUTOMATIC | 1 | |||||
| 29 | ASSY-CLUTCH FRONT | 31510-X0100 | AUTOMATIC | 1 | |||||
| 30 | ASSY-DRUMFRONT CLUTC | 31511-X0100 | AUTOMATIC | 1 | |||||
| 31 | SEAL-O RING (540) | 31517-X0100 | AUTOMATIC | 1 | |||||
| 32 | ASSY-PISTON CLUTCH | 31514-X0101 | AUTOMATIC | 7211 | 1 | ||||
| 32 | ASSY-PISTON CLUTCH | 31514-X0102 | AUTOMATIC | 7212 | 7406 | 1 | Yes | Yes | 31514-X0101 |
| 32 | ASSY-PISTON CLUTCH | 31514-X0103 | AUTOMATIC | 7407 | 1 | Yes | Yes | 31514-X0102 | |
| 33 | SEAL-LATHE CUT RING | 31516-X0100 | AUTOMATIC | 1 | |||||
| 34 | SPRING-PISTON RETURN | 31521-X0100 | AUTOMATIC | 10 | |||||
| 35 | RETAINER-SPRING | 31552-X0100 | AUTOMATIC | 7211 | 1 | ||||
| 35 | RETIANER-SPRING | 31552-X0102 | AUTOMATIC | 7212 | 1 | Yes | Yes | 31552-X0100 | |
| 36 | RING-SNAP (54S) | 31523-X0100 | AUTOMATIC | 1 | |||||
| 37 | PLATE-DISHED | 31529-X0100 | AUTOMATIC | 1 | |||||
| 38 | PLATE-DRIVEN (115) | 31536-X0100 | AUTOMATIC | 6 | |||||
| 39 | ASSY-PLATE DRIVE (11 | 31532-X0100 | AUTOMATIC | 7702 | 6 | ||||
| 39 | ASSY-PLATE DRIVE (11 | 31532-X0101 | AUTOMATIC | 7703 | 1 | Yes | Yes | 31532-X0100 | |
| 40 | PLATE-RETAINING T=10 | 31537-X0100 | AUTOMATIC | 1 | |||||
| 40 | PLATE-RETAINING T=10 | 31537-X0101 | AUTOMATIC | 1 | |||||
| 40 | PLATE-RETAINING T=11 | 31537-X0102 | AUTOMATIC | 1 | |||||
| 40 | PLATE-RETAINING T=11 | 31537-X0103 | AUTOMATIC | 1 | |||||
| 40 | PLATE-RETAINING T=11 | 31537-X0104 | AUTOMATIC | 1 | |||||
| 40 | PLATE-RETAINING T=11 | 31537-X0105 | AUTOMATIC | 1 | |||||
| 41 | RING-SNAP (118) | 31538-X0100 | AUTOMATIC | 1 | |||||
| 42 | ASSY-BAND BRAKE | 31630-X0100 | AUTOMATIC | 1 | |||||
| 42 | ASSY-BAND BRAKE | 31630-X0102 | AUTOMATIC | 1 | Yes | Yes | 31630-X0100 | ||
| 43 | STRUT-BAND | 31624-X0100 | AUTOMATIC | 1 | |||||
| 44 | SPRING-PISTON RETURN | 31621-X0100 | AUTOMATIC | 1 | |||||
| 45 | PISTON-BAND SERVO | 31615-X0500 | AUTOMATIC | 1 | |||||
| 46 | RETAINER-SERVO | 31611-X0500 | AUTOMATIC | 1 | |||||
| 47 | SEAL-LATHE CUT RING | 31616-X0300 | AUTOMATIC | 1 | |||||
| 48 | SEAL-LATHE CUT RING | 31617-X0300 | AUTOMATIC | 1 | |||||
| 49 | SEAL-O RING (82S) | 31628-X0100 | AUTOMATIC | 1 | |||||
| 50 | SEAL-LATHE CUT RING | 31612-X0100 | AUTOMATIC | 1 | |||||
| 51 | STEM-BAND SERVO PIST | 31618-X0100 | AUTOMATIC | 7112 | 1 | ||||
| 51 | STEM-BAND SERVO PIST | 31618-X0101 | AUTOMATIC | 7201 | 1 | Yes | Yes | 31618-X0100 | |
| 52 | WASHER-PLAIN | 08915-44210 | AUTOMATIC | 7112 | 1 | ||||
| 52 | WASHER-PLAIN | 31619-X0100 | AUTOMATIC | 7201 | 1 | Yes | Yes | 08915-44210 | |
| 53 | NUT | 08911-34210 | AUTOMATIC | 1 | |||||
| 54 | BOLT | 08160-61610 | AUTOMATIC | 3 | |||||

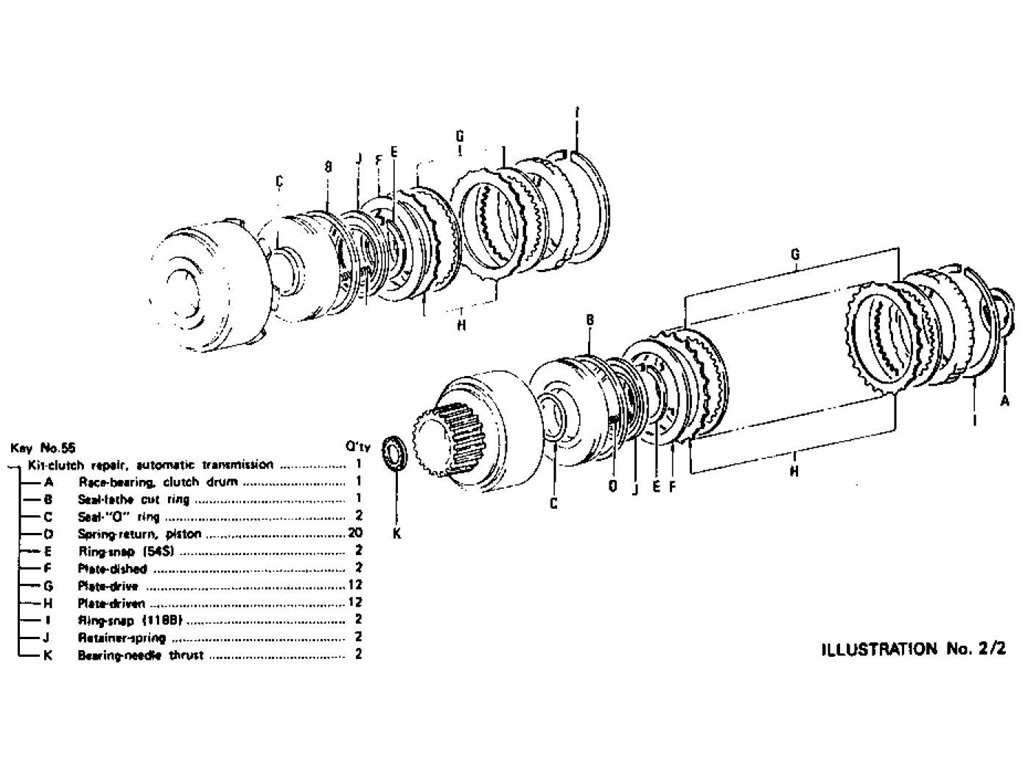

| 55 | KIT-REPAIR CLUTCH | 31532-X0925 | AUTOMATIC | 7305 | 1 |
