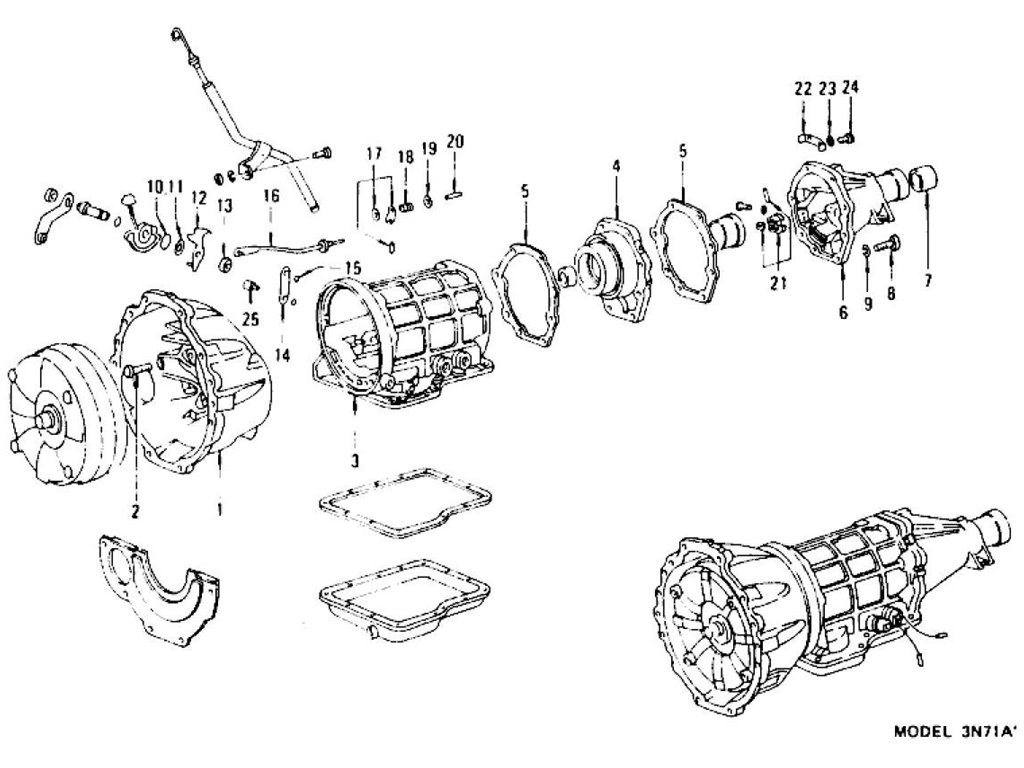

Transmission Case [2] (Automatic-3N71A) (To Mar.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | HOUSING-CONVERTER | 31301-23251 | AUTOMATIC | 1 | |||||
| 1 | HOUSING-CONVERTER | 31301-X0201 | AUTOMATIC | 11 | Yes | Yes | 31301-X0200 | ||
| 1 | HOUSING-CONVERTER | 31301-X0202 | AUTOMATIC | 1 | Yes | Yes | 31301-X0201 | ||
| 1 | HUSING-CONVERTER | 31301-X0200 | AUTOMATIC | 1 | Yes | Yes | 31301-23251 | ||
| 2 | BOLT-C/H TO T/M | 01125-00041 | AUTOMATIC | 6 | Yes | Yes | 31309-A4001 | ||
| 2 | BOLT-C/H TO T/M | 31309-A4001 | AUTOMATIC | 6 | |||||
| 3 | CASE-TRANSMISSION | 31311-20300 | AUTOMATIC | 1 | |||||
| 4 | ASSY-FLANGE REAR | 31370-20300 | AUTOMATIC | 1 | |||||
| 5 | GASKET-REAR EXTENSIO | 31335-20300 | AUTOMATIC | 2 | |||||
| 5 | GASKET-REAR EXTENSIO | 31335-X0100 | AUTOMATIC | 2 | Yes | Yes | 31335-20300 | ||
| 6 | ASSY-EXTENSION REAR | 31330-E8000 | AUTOMATIC | 1 | |||||
| 6 | ASSY-EXTENSION REAR | 31330-E8001 | AUTOMATIC | 1 | Yes | Yes | 31330-E8000 | ||
| 7 | BUSHING-REAR EXTENSI | 31332-E3200 | AUTOMATIC | 1 | |||||
| 8 | BOLT-FIXING GEAR EXT | 08120-84510 | AUTOMATIC | 8 | |||||
| 9 | WASHER-LOCK | 08915-13810 | AUTOMATIC | 8 | |||||
| 10 | SEAL-"O"RING | 31914-20300 | AUTOMATIC | 1 | |||||
| 10 | SEAL-"O"RING | 31914-X0100 | AUTOMATIC | 1 | Yes | Yes | 31914-20300 | ||
| 11 | WASHER MANUAL SHAFT | 31922-20300 | AUTOMATIC | 1 | |||||
| 12 | COMP-PLATE MANUAL | 31924-E3000 | AUTOMATIC | 1 | Yes | Yes | 31924-H0100 | ||
| 12 | COMP-PLATE MANUAL | 31924-H0100 | AUTOMATIC | 1 | |||||
| 13 | NUT | 01211-00011 | 1 | Yes | Yes | 08911-34410 | |||
| 13 | NUT | 08911-34410 | 1 | ||||||
| 14 | LEVER-PARKING | 31961-20300 | 1 | ||||||
| 15 | RING-SNAP | 31963-20300 | AUTOMATIC | 2 | |||||
| 16 | COMP-ROD PARKING | 31970-E8000 | AUTOMATIC | 1 | |||||
| 17 | PAWL-PARKING | 31991-E8000 | AUTOMATIC | 1 | |||||
| 18 | SPRING-RETURN PAWL P | 31988-E8000 | AUTOMATIC | 1 | |||||
| 18 | SPRING-RETURN PAWL P | 31988-X0100 | AUTOMATIC | 7211 | 1 | Yes | Yes | 31988-E8000 | |
| 19 | SPACER-PAWL PARKING | 31987-E8000 | AUTOMATIC | 1 | |||||
| 19 | SPACER-PAWL PARKING | 31987-X0100 | AUTOMATIC | 7204 | 1 | Yes | Yes | 31987-E8000 | |
| 20 | SHAFT-PAWL PARKING | 31986-20300 | AUTOMATIC | 1 | |||||
| 21 | SUPPORT-ACTUATOR PAR | 31981-E8000 | AUTOMATIC | 1 | |||||
| 22 | PLATE-BAFFLE AIR BRE | 31382-20301 | AUTOMATIC | 1 | |||||
| 23 | WASHER-PLAIN | 08915-43510 | AUTOMATIC | 2 | |||||
| 24 | SCREW | 08310-50812 | AUTOMATIC | 2 | |||||
| 25 | PIN-PARKING LEVER | 31962-20300 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING PARK | 31983-E8000 | AUTOMATIC | 1 | |||||
| 27 | SPRING-BALL PARKING | 31985-E8000 | AUTOMATIC | 2 | |||||
| 28 | RETAINER-SPRING PARK | 31984-E8000 | AUTOMATIC | 1 | |||||
| 29 | BALL-STEEL (8/731) | 31357-20300 | AUTOMATIC | 2 | |||||
| 30 | BOLT-HEX FLANGE HEAD | 01125-00021 | AUTOMATIC | 2 |
