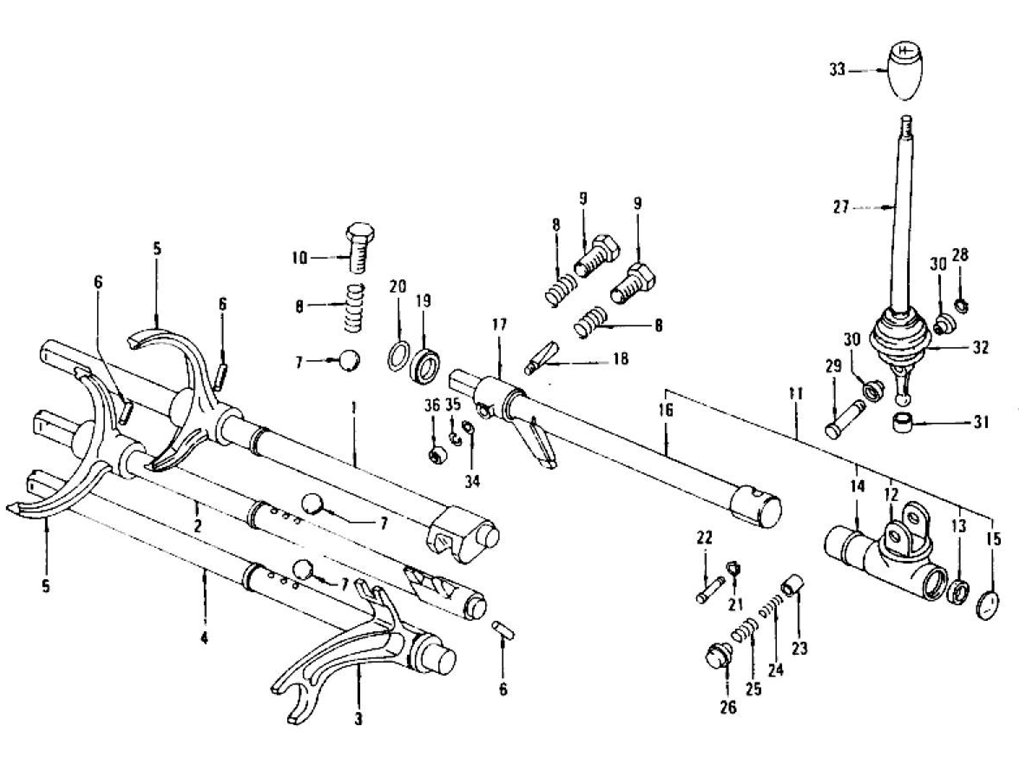

Transmission Control Lever & Fork (4 Speed-F4W71B) (From Sep.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-ROD | 32800-E9300 | 4 SPEED | 7608 | 1 | ||||
| 1 | ASSY-ROD | 32800-E9302 | 4 SPEED | 7609 | 1 | No | No | 32800-E9300 | |
| 2 | ASSY-ROD | 32808-E9300 | 4 SPEED | 7608 | 1 | ||||
| 2 | ASSY-ROD | 32808-E9302 | 4 SPEED | 7609 | 1 | No | No | 32808-E9300 | |
| 2 | ASSY-ROD | 32808-E9301 | 4 SPEED FED | 7412 | 7607 | 1 | No | No | 32808-E9300 |
| 3 | FORK & BRACKET-REVER | 32819-E9300 | 4 SPED | 7608 | 1 | ||||
| 3 | FORK & BRACKET-REVER | 32819-E9301 | 4 SPEED | 7609 | 1 | No | No | 32819-E9300 | |
| 4 | ROD-FORK | 32816-E9200 | 4 SPED | 7411 | 1 | ||||
| 4 | ROD-FORK | 32816-E9201 | 4 SPEED | 7412 | 7608 | 1 | No | No | 32816-E9200 |
| 4 | ROD-FORK | 32816-E9203 | 4 SPEED | 7609 | 1 | No | No | 32816-E9201 | |
| 5 | FORK-1ST & REVERSE | 32805-E9000 | 4 SPEED | 7608 | 2 | ||||
| 5 | FORK-1ST & REVERSE | 32805-E9001 | 4 SPEED | 7609 | 2 | No | No | 32805-E9000 | |
| 6 | PIN-RETAINING | 32292-14600 | 4 SPEED | 7608 | 3 | ||||
| 6 | PIN-RETAINING | 32292-14601 | 4 SPEED | 7609 | 3 | No | No | 32292-14600 | |
| 7 | BALL-CHECKING INTER | 32829-26760 | 4 SPEED | 7 | |||||
| 8 | SPRING-POPPET | 32830-20100 | 4 SPEED | 3 | |||||
| 9 | PLUG-CHECKING BALL | 32835-78000 | 4 SPEED | 2 | |||||
| 10 | PLUG-CHECKING BALL | 32834-E9000 | 4 SPEED | 1 | |||||
| 11 | COMP-GUIDE | 32850-E9354 | 4 SPEED | 7502 | 1 | ||||
| 11 | COMP-GUIDE | 32850-E9353 | 4 SPEED | 7503 | 7508 | 1 | No | No | 32850-E9354 |
| 11 | COMP-GUIDE | 32850-E9357 | 4 SPEED | 7509 | 7712 | 1 | Yes | Yes | 32850-E9353 |
| 11 | COMP-GUIDE | 32850-E9356 | 4 SPEED | 7801 | 1 | 32850-E9357 | |||
| 12 | ASSY-GUIDE | 32850-E9300 | 4 SPEED | 7712 | 1 | ||||
| 12 | ASSY-GUIDE | 32850-E9301 | 4 SPEED | 7801 | 1 | 32850-E9300 | |||
| 13 | SEAL OIL | 32858-U6700 | 4 SPEED | 1 | |||||
| 14 | RING-"O" | 32710-14600 | 4 SPEED | 1 | |||||
| 15 | PLUG-EXPANSION | 00933-33000 | 4 SPEED | 1 | |||||
| 16 | ROD-STRIKING | 32892-E9303 | 4 SPEED | 7502 | 1 | ||||
| 16 | ROD-STRIKING | 32892-E9302 | 4 SPEED | 7503 | 1 | No | No | 32892-E9303 | |
| 17 | LEVER-STRIKING | 32896-E9302 | 4 SPEED | 7112 | 1 | ||||
| 17 | LEVER-STRIKING | 32896-E9309 | 4 SPEED | 7201 | 1 | Yes | Yes | 32896-E9302 | |
| 18 | PIN-LOCK | 32917-E9300 | 4 SPEED | 7112 | 1 | ||||
| 18 | PIN-LOCK | 32917-E9301 | 4 SPEED | 7201 | 1 | Yes | Yes | 32917-E9309 | |
| 18 | PIN-LOCK | 32917-E9309 | 4 SPEED | 7201 | 1 | Yes | Yes | 32917-E9300 | |
| 19 | CAP-"O"RING | 32857-14600 | 4 SPEED | 7508 | 1 | ||||
| 20 | RING-"O" | 32858-14600 | 4 SPEED | 7508 | 1 | ||||
| 21 | RING-SNAP | 32846-24900 | 4 SPEED | 1 | |||||
| 22 | PIN-STOPPER GUIDE | 32847-24901 | 4 SPEED | 1 | |||||
| 23 | PLUNGER-RETURN SPRIN | 32851-24900 | 4 SPEED | 1 | |||||
| 23 | PLUNGER-RETURN SPRIN | 32851-N9000 | 4 SPEED | 1 | |||||
| 24 | SPRING-RETURN | 32852-24901 | 4 SPEED | 1 | |||||
| 25 | SPRING-REVERSE CHECK | 32856-24901 | 4 SPEED | 1 | |||||
| 26 | PLUG-RETURN SPRING | 32853-E9300 | 4 SPEED | 1 | |||||
| 27 | LEVER-CONTROL | 32841-E8800 | 4 SPEED | 7311 | 1 | ||||
| 27 | LEVER-CONTROL | 32841-N3101 | 4 SPEED | 7312 | 7712 | 1 | Yes | Yes | 32841-E8800 |
| 27 | LEVER-CONTROL | 32841-N3102 | 4 SPEED | 7801 | 1 | 32841-N3101 | |||
| 28 | RING | 32854-24900 | 4 SPEED | 1 | |||||
| 29 | PIN-CONTROL LEVER | 32849-H1010 | 4 SPEED | 1 | |||||
| 30 | BUSH-CONTROL LEVER | 32855-H1010 | 4 SPEED | 2 | |||||
| 31 | BUSH-CONTROL LEVER | 32861-24900 | 4 SPEED | 1 | |||||
| 31 | BUSH-CONTROL LEVER | 32861-N4200 | 4 SPEED | 1 | Yes | Yes | 32861-24900 | ||
| 32 | BOOT-CONTROL LEVER | 32862-E9300 | 4 SPEED | 1 | |||||
| 33 | KNOB-CONTROL LEVER | 32865-U4101 | 4 SPEED | 7308 | 7712 | 1 | |||
| 33 | KNOB-CONTROL LEVER | 32865-U4201 | 4 SPEED | 7801 | 1 | Yes | Yes | 32865-U4101 | |
| 33 | KNOB-CONTROL LEVER ( | 32865-78601 | 4 SPEED | 1 | |||||
| 33 | KNOB-CONTROL LEVER ( | 32865-E6600 | 4 SPEED | 1 | Yes | Yes | 32865-78601 | ||
| 33 | KNOB-CONTROL LEVER ( | 32865-H9300 | 4 SPEED | 1 | Yes | Yes | 32865-E6600 | ||
| 34 | WASHER-PLAIN | 08915-53610 | 4 SPEED | 1 | |||||
| 35 | WASHER-LOCK | 08915-13610 | 4 SPEED | 1 | |||||
| 36 | NUT-HEX | 08911-20610 | 4 SPEED | 1 |
