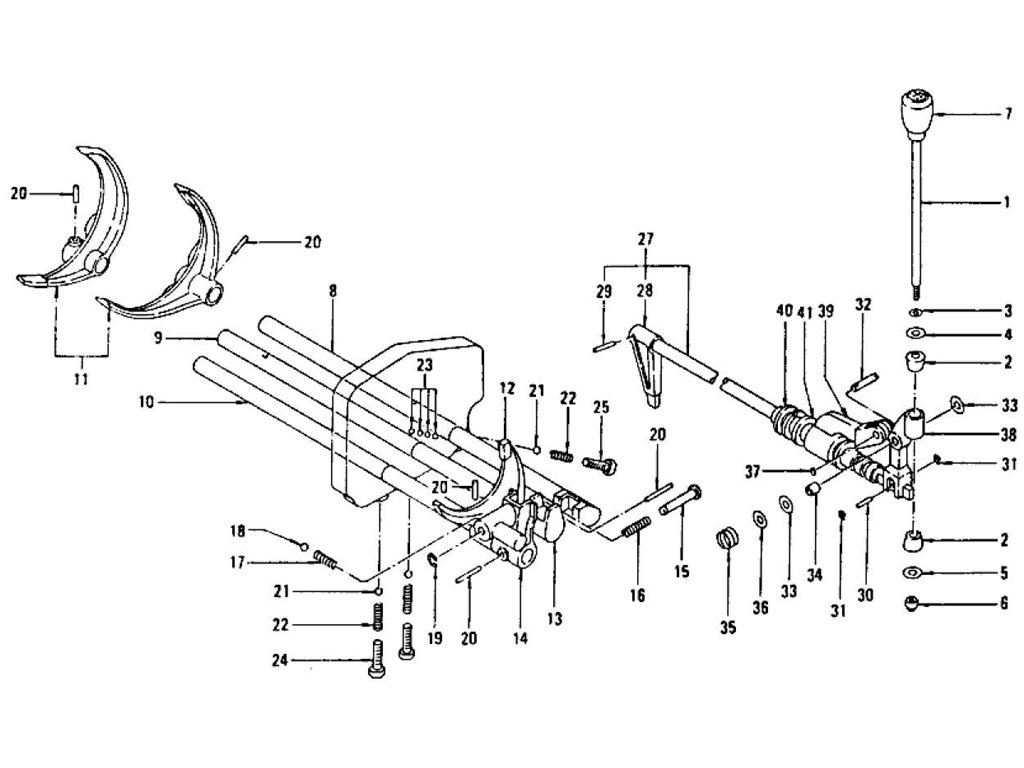

Transmission Control Lever & Fork (4 Speed-F4W71A) (To Aug.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | LEVER-CONTROL | 32841-25500 | 4 SPEED | 1 | |||||
| 2 | RUBBER-CONTROL LEVER | 32853-22000 | 4 SPEED | 2 | |||||
| 3 | WASHER-PLAIN CONTROL | 32855-A7100 | 4 SPEED | 1 | |||||
| 4 | WASHER-CONTROL LEVER | 32885-22001 | 4 SPEED | 1 | |||||
| 5 | WASHER-CONTROL LEVER | 32886-22000 | 4 SPEED | 1 | |||||
| 6 | NUT-SELF LOCKING M10 | 08912-54010 | 4 SPEED | 1 | |||||
| 7 | KNOB-CONTROL LEVER S | C2865-E4600 | OP 4 SPEED | 1 | |||||
| 7 | KNOB-CONTROL LEVER W | 32865-78601 | 4 SPEED | 1 | |||||
| 7 | KNOB-CONTROL LEVER W | 32865-H9300 | 4 SPEED | 1 | Yes | Yes | 32865-EL600 | ||
| 7 | KNOB-CONTROL LEVER W | 32865-E6600 | 4 SPEED | 7111 | 1 | Yes | Yes | 32865-78601 | |
| 8 | ROD-FORK 1ST & 2ND S | 32801-A0100 | 4 SPEED | 1 | |||||
| 9 | ROD-FORK 3RD & 4TH S | 32809-A0100 | 4 SPEED | 1 | |||||
| 10 | ROD-FORK REVERSE | 32816-A0100 | 4 SPEED | 1 | |||||
| 11 | FORK-1 | 32811-78000 | 4 SPEED | 2 | |||||
| 12 | FORK-REVERSE SPEED | 32819-78010 | 4 SPEED | 1 | |||||
| 13 | BRACKET-3RD & 4TH | 32813-20100 | 4 SPEED | 1 | |||||
| 14 | ASSY-BRACKET REVERSE | 32382-E4650 | 4 SPEED | 1 | |||||
| 15 | PIN-FORK REVERSE | 32823-E4600 | 4 SPEED | 1 | |||||
| 16 | SPRING-REVERSE CHECK | 32824-E4600 | 4 SPEED | 1 | |||||
| 17 | SPRING-REVERSE CHECK | 32825-E4600 | 4 SPEED | 1 | |||||
| 18 | BALL-STEEL | 32720-36900 | 4 SPEED | 1 | |||||
| 19 | RING-E TYPE | 32878-14600 | 4 SPEED | 1 | |||||
| 20 | PIN-RETAINING | 32292-14600 | 4 SPEED | 5 | |||||
| 21 | BALL-CHECK | 32829-26760 | 4 SPEED | 3 | |||||
| 22 | SPRING-POPET | 32830-20100 | 4 SPEED | 3 | |||||
| 23 | BALL-INTER LOCK | 32720-36900 | 4 SPEED | 4 | |||||
| 24 | PLUG-CHECKING BALL | 32834-78000 | 4 SPEED | 2 | |||||
| 25 | PLUG-CHECKING BALL | 32835-78000 | 4 SPEED | 1 | |||||
| 26 | RING-SNAP E TYPE | 32803-78001 | 4 SPEED | 3 | |||||
| 27 | ASSY-STRIKING ROD | 32890-A0100 | 4 SPEED | 1 | |||||
| 28 | LEVER-STRIKING | 32890-25500 | 4 SPEED | 1 | |||||
| 29 | PIN-SPRING | 32292-14600 | 4 SPEED | 1 | |||||
| 30 | PIN-STRIKING ROD | 32877-14600 | 4 SPEED | 1 | |||||
| 31 | RING-'C' STRIKING PI | 32878-14600 | OP 4 SPEED | 2 | |||||
| 32 | PIN-CONTROL ARM | 32849-14600 | 4 SPEED | 1 | |||||
| 33 | WASHER-CONTROL PIN | 32888-14600 | 4 SPEED | 2 | |||||
| 34 | BUSH-CONTROL PIN | 32889-14600 | 4 SPEED | 1 | |||||
| 35 | SPRING-CONTROL | 32851-14600 | 4 SPEED | 1 | |||||
| 36 | WASHER-THRUST CONTRO | 08915-44010 | 4 SPEED | 1 | Yes | Yes | 32879-14600 | ||
| 36 | WASHER-THRUST CONTRO | 32879-14600 | 4 SPEED | 1 | |||||
| 37 | PIN-RETAINING | 32873-14600 | 4 SPEED | 1 | |||||
| 38 | ASSY-BRACKET LEVER C | 32843-E4150 | 4 SPEED | 1 | Yes | Yes | 32843-15850 | ||
| 38 | BRACKET-LEVER CONTRO | 32843-15850 | 4 SPEED | 1 | |||||
| 39 | ARM-CONTROL | 32844-A0100 | 4 SPEED | 1 | |||||
| 40 | RING"O"CONTROL ARM | 32845-18800 | 4 SPEED | 2 | |||||
| 41 | BUSH STRIKING ROD | 32887-18800 | 4 SPEED | 1 |
