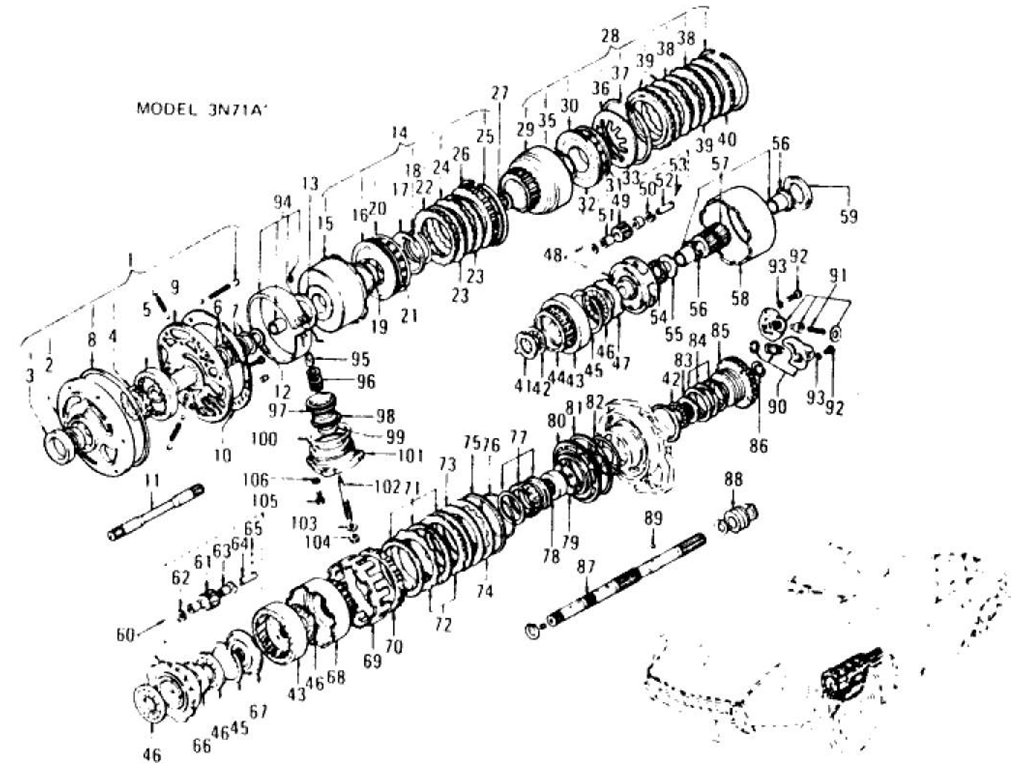

Transmission Gear (Automatic-3N71A) (To Mar.-'71)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-OIL PUMP | 31340-20300 | AUTOMATIC | 1 | |||||
| 1 | ASSY-OIL PUMP | 31340-X0100 | AUTOMATIC | 1 | Yes | Yes | 31340-20300 | ||
| 1 | ASSY-OIL PUMP | 31340-X0101 | AUTOMATIC | 1 | Yes | Yes | 31340-X0100 | ||
| 2 | COMP-HOUSING OIL PUM | 31341-20300 | AUTOMATIC | 1 | |||||
| 2 | COMP-HOUSING OIL PUM | 31341-X0100 | AUTOMATIC | 1 | Yes | Yes | 31341-X0150 | ||
| 2 | COMP-HOUSING OIL PUM | 31341-X0150 | AUTOMATIC | 1 | Yes | Yes | 31341-20300 | ||
| 3 | SEAL-OIL | 31344-20300 | AUTOMATIC | 1 | |||||
| 3 | SEAL-OIL | 31344-X0100 | AUTOMATIC | 1 | Yes | Yes | 31344-20300 | ||
| 3 | SEAL-OIL | 31344-X0101 | AUTOMATIC | 1 | Yes | Yes | 31344-X0100 | ||
| 4 | GEAR-INNER OIL PUMP | 31346-20300 | AUTOMATIC | 1 | |||||
| 4 | GEAR-INNER OIL PUMP | 31346-X0102 | AUTOMATIC | 1 | Yes | Yes | 31346-20300 | ||
| 5 | GEAR-OUTER OIL PUMP | 31347-20300 | AUTOMATIC | 1 | |||||
| 5 | GEAR-OUTER OIL PUMP | 31347-X0102 | AUTOMATIC | 1 | Yes | Yes | 31347-20300 | ||
| 6 | RING-SEAL 44D | 31361-20300 | AUTOMATIC | 2 | |||||
| 6 | RING-SEAL 44D | 31361-X0100 | AUTOMATIC | 2 | Yes | Yes | 31361-20300 | ||
| 7 | RING-SEAL 43D | 31362-20300 | AUTOMATIC | 2 | |||||
| 7 | RING-SEAL 43D | 31362-X0100 | AUTOMATIC | 2 | Yes | Yes | 31362-20300 | ||
| 8 | partNumber | SEAL-LATHE RING (200 | |||||||
| 8 | partNumber | 31363-20300 | AUTOMATIC | 1 | |||||
| 8 | partNumber | 31363-X0100 | AUTOMATIC | 1 | Yes | Yes | 31363-20300 | ||
| 9 | COMP-COVER OIL PUMP | 31350-20300 | AUTOMATIC | 1 | |||||
| 9 | COMP-COVER OIL PUMP | 31350-X0100 | AUTOMATIC | 1 | Yes | Yes | 31350-20300 | ||
| 9 | COMP-COVER OIL PUMP | 31350-X0101 | AUTOMATIC | 1 | Yes | Yes | 31350-X0100 | ||
| 10 | GASKET-OIL PUMP | 31366-20398 | AUTOMATIC | 1 | |||||
| 11 | SHAFT-INPUT | 31411-20302 | AUTOMATIC | 1 | |||||
| 11 | SHAFT-INPUT | 31411-X0100 | AUTOMATIC | 1 | Yes | Yes | 31411-20302 | ||
| 12 | RACE-BEARING PUMP CO | 31556-20300 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-20301 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-20302 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-20303 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-20304 | AUTOMATIC | 1 | |||||
| 12 | RACE-BEARING PUMP CO | 31556-20305 | AUTOMATIC | 1 | |||||
| 13 | WASHER THRUST FRONT | 31528-20314 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST FRONT | 31528-20310 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST FRONT | 31528-20311 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST FRONT | 31528-20312 | AUTOMATIC | 1 | |||||
| 13 | WASHER-THRUST FRONT | 31528-20313 | AUTOMATIC | 1 | |||||
| 14 | ASSY-CLUTCH FRONT | 31510-F0600 | AUTOMATIC | 1 | |||||
| 15 | COMP-DRUM FRONT CLUT | 31511-F0600 | AUTOMATIC | 1 | |||||
| 16 | COMP-PISTON FRONT CL | 31514-F0600 | AUTOMATIC | 1 | |||||
| 17 | RETAINER-SPRING | 31552-H0100 | AUTOMATIC | 1 | |||||
| 18 | RING-SNAP (54S) | 31523-20300 | AUTOMATIC | 1 | |||||
| 19 | SEAL-"O" RING (54D) | 31517-20300 | AUTOMATIC | 1 | |||||
| 19 | SEAL-"O" RING (54D) | 31517-X0100 | AUTOMATIC | 1 | Yes | Yes | 31517-20300 | ||
| 20 | SEAL-LATHE CUT RING | 31516-20300 | AUTOMATIC | 1 | |||||
| 20 | SEAL-LATHE CUT RING | 31516-X0100 | AUTOMATIC | 1 | Yes | Yes | 31516-20300 | ||
| 21 | SPRING-OIL | 31521-20301 | AUTOMATIC | 10 | |||||
| 21 | SPRING-OIL | 31521-X0100 | AUTOMATIC | 10 | Yes | Yes | 31521-20301 | ||
| 22 | PLATE-DISHED | 31529-H0102 | AUTOMATIC | 1 | |||||
| 23 | ASSY-PLATE DRIVE (11 | 31532-20300 | AUTOMATIC | 3 | |||||
| 23 | ASSY-PLATE DRIVE (11 | 31532-X0100 | AUTOMATIC | 3 | Yes | Yes | 31532-20300 | ||
| 23 | ASSY-PLATE DRIVE (11 | 31532-X0101 | AUTOMATIC | 3 | Yes | Yes | 31532-X0100 | ||
| 24 | PLATE-DRIVE (115) | 31536-20300 | AUTOMATIC | 3 | |||||
| 24 | PLATE-DRIVE (115) | 31536-X0100 | AUTOMATIC | 3 | Yes | Yes | 31536-20300 | ||
| 25 | RING-SNAP (118B) | 31538-20300 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING 10.8 | 31537-F0600 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING 10.8 | 31537-F0620 | AUTOMATIC | 1 | Yes | Yes | 31537-F0600 | ||
| 26 | PLATE-RETAINING 11.0 | 31537-F0601 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING 11.0 | 31537-F0621 | AUTOMATIC | 1 | Yes | Yes | 31537-F0601 | ||
| 26 | PLATE-RETAINING 11.2 | 31537-F0602 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING 11.2 | 31537-F0622 | AUTOMATIC | 1 | Yes | Yes | 31537-F0602 | ||
| 26 | PLATE-RETAINING 11.4 | 31537-F0603 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING 11.4 | 31537-F0623 | AUTOMATIC | 1 | Yes | Yes | 31537-F0603 | ||
| 26 | PLATE-RETAINING 11.6 | 31537-F0604 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING 11.6 | 31537-F0624 | AUTOMATIC | 1 | Yes | Yes | 31537-F0604 | ||
| 26 | PLATE-RETAINING 11.8 | 31537-F0605 | AUTOMATIC | 1 | |||||
| 26 | PLATE-RETAINING 11.8 | 31537-F0625 | AUTOMATIC | 1 | Yes | Yes | 31537-F0605 | ||
| 27 | COMP-BEARING NEEDLE | 31555-20300 | AUTOMATIC | 1 | |||||
| 28 | ASSY-CLUTCH REAR | 31540-F0600 | AUTOMATIC | 1 | |||||
| 29 | DRUM-REAR CLUTCH | 31542-F0600 | AUTOMATIC | 1 | |||||
| 30 | SEAL-LATHE CUT RING | 31516-20300 | AUTOMATIC | 1 | |||||
| 30 | SEAL-LATHE CUT RING | 31516-X0100 | AUTOMATIC | 1 | Yes | Yes | 31516-20300 | ||
| 31 | SPRING-RETURN PISTON | 31521-20301 | AUTOMATIC | 10 | |||||
| 31 | SPRING-RETURN PISTON | 31521-X0100 | AUTOMATIC | 10 | Yes | Yes | 31521-20301 | ||
| 32 | COMP-PISTON FRONT CL | 31514-F0600 | AUTOMATIC | 1 | |||||
| 33 | RETAINER-SPRING | 31552-H0100 | AUTOMATIC | 1 | |||||
| 34 | RING-SNAP (54S) | 31523-20300 | AUTOMATIC | 1 | |||||
| 35 | SEAL-"O" RING | 31517-20300 | AUTOMATIC | 1 | |||||
| 35 | SEAL-"O" RING | 31517-X0100 | AUTOMATIC | 1 | Yes | Yes | 31517-20300 | ||
| 36 | PLATE-DISHED | 31529-H0102 | AUTOMATIC | 1 | |||||
| 37 | RING-SNAP (118B) | 31538-20300 | AUTOMATIC | 1 | |||||
| 38 | ASSY-PLATE DRIVE (11 | 31532-20300 | AUTOMATIC | 4 | |||||
| 38 | ASSY-PLATE DRIVE (11 | 31532-X0100 | AUTOMATIC | 4 | Yes | Yes | 31532-20300 | ||
| 38 | ASSY-PLATE DRIVE (11 | 31532-X0101 | AUTOMATIC | 4 | Yes | Yes | 31532-X0100 | ||
| 39 | PLATE-DRIVE (115) | 31536-20300 | AUTOMATIC | 4 | |||||
| 39 | PLATE-DRIVE (115) | 31536-X0100 | AUTOMATIC | 4 | Yes | Yes | 31536-20300 | ||
| 40 | PLATE-RETAINING 12.O | 31567-F0600 | AUTOMATIC | 1 | |||||
| 40 | PLATE-RETAINING 12.O | 31567-F0620 | AUTOMATIC | 1 | Yes | Yes | 31569-F0600 | ||
| 41 | RACE-BEARING REAR CL | 31439-H0100 | AUTOMATIC | 1 | |||||
| 42 | COMP-BEARING NEEDLE | 31438-20300 | AUTOMATIC | 2 | |||||
| 43 | HUB-REAR CLUTCH | 31553-F0600 | AUTOMATIC | 1 | |||||
| 43 | HUB-REAR CLUTCH | 31553-X0100 | AUTOMATIC | 1 | Yes | Yes | 31553-F0600 | ||
| 44 | GEAR-INTERNAL (72T) | 31431-20300 | AUTOMATIC | 2 | |||||
| 44 | GEAR-INTERNAL (72T) | 31431-X0100 | AUTOMATIC | 2 | Yes | Yes | 31431-20300 | ||
| 45 | RING-SNAP (99B) | 31433-20300 | AUTOMATIC | 2 | |||||
| 46 | COMP-BEARING NEEDLE | 31435-20300 | AUTOMATIC | 4 | |||||
| 47 | RACE-BEARING FRONT P | 31436-20300 | AUTOMATIC | 1 | |||||
| 48 | ASSY-CARRIER FRONT P | 31421-20300 | AUTOMATIC | 1 | |||||
| 48 | COMP-CARRIER FRONT P | 31420-20300 | AUTOMATIC | 1 | |||||
| 49 | PINION-PLANETARY (19 | 31423-20300 | AUTOMATIC | 3 | |||||
| 50 | WASHER-PLANETARY PIN | 31424-20300 | AUTOMATIC | 6 | |||||
| 51 | COMP-BEARING NEEDLE | 31425-20300 | AUTOMATIC | 6 | |||||
| 52 | SHAFT-PLANT PINION | 31426-20300 | AUTOMATIC | 3 | |||||
| 53 | PIN-RETAINING | 32873-14600 | AUTOMATIC | 3 | |||||
| 54 | COMP-BEARING NEEDLE | 31428-20300 | AUTOMATIC | 1 | |||||
| 54 | COMP-BEARING NEEDLE | 31428-X0100 | AUTOMATIC | 1 | Yes | Yes | 31428-20300 | ||
| 55 | RACE-BEARING SUN GEA | 31429-20300 | AUTOMATIC | 1 | |||||
| 56 | RING-SNAP (475) | 31467-20300 | AUTOMATIC | 2 | |||||
| 57 | COMP-GEAR SUN (33T) | 31460-20300 | AUTOMATIC | 1 | |||||
| 57 | COMP-GEAR SUN (33T) | 31460-X0100 | AUTOMATIC | 1 | Yes | Yes | 31460-20300 | ||
| 58 | SHELL-CONNECTOR | 31465-F0600 | AUTOMATIC | 1 | |||||
| 59 | RACE-BEARING CONNECT | 31466-20300 | AUTOMATIC | 1 | |||||
| 60 | COMP-CARRIER REAR PL | 31440-20300 | AUTOMATIC | 1 | |||||
| 60 | COMP-CARRIER REAR PL | 31440-X0100 | AUTOMATIC | 1 | Yes | Yes | 31440-20300 | ||
| 61 | PINION-PLANETARY (19 | 31423-20300 | AUTOMATIC | 3 | |||||
| 62 | WASHER-PLANETARY PIN | 31424-20300 | AUTOMATIC | 6 | |||||
| 63 | COMP-BEARING NEEDLE | 31425-20300 | AUTOMATIC | 6 | |||||
| 64 | SHAFT-PLANET PINION | 31426-20300 | AUTOMATIC | 3 | |||||
| 65 | PIN-RETAINING | 32873-14600 | AUTOMATIC | 3 | |||||
| 66 | RACE-BEARING PLANETA | 31436-20300 | AUTOMATIC | 1 | |||||
| 67 | FLANGE-DRIVE INTERNA | 31452-20300 | AUTOMATIC | 1 | |||||
| 68 | DRUM-CONNECTING | 31471-20300 | AUTOMATIC | 1 | |||||
| 69 | RING-CLUTCH LOW & RE | 31643-20300 | AUTOMATIC | 1 | |||||
| 70 | PLATE-RETAINING 7.2T | 31667-A4006 | AUTOMATIC | 1 | |||||
| 70 | PLATE-RETAINING 7.2T | 31667-A4026 | AUTOMATIC | 1 | Yes | Yes | 31667-R4006 | ||
| 70 | PLATE-RETAINING 7.4T | 31667-A4007 | AUTOMATIC | 1 | |||||
| 70 | PLATE-RETAINING 7.4T | 31667-A4027 | AUTOMATIC | 1 | Yes | Yes | 31667-R4007 | ||
| 70 | PLATE-RETAINING 7.6T | 31667-A4008 | AUTOMATIC | 1 | |||||
| 70 | PLATE-RETAINING 7.6T | 31667-A4028 | AUTOMATIC | 1 | Yes | Yes | 31667-R4008 | ||
| 70 | PLATE-RETAINING 7.8T | 31667-A4009 | AUTOMATIC | 1 | |||||
| 70 | PLATE-RETAINING 7.8T | 31667-A4029 | AUTOMATIC | 1 | Yes | Yes | 31667-R4009 | ||
| 70 | PLATE-RETAINING 7.OT | 31667-A4005 | AUTOMATIC | 1 | |||||
| 70 | PLATE-RETAINING 7.OT | 31667-A4025 | AUTOMATIC | 1 | Yes | Yes | 31667-R4005 | ||
| 71 | ASSY-PLATE DRIVE (13 | 31662-20300 | AUTOMATIC | 4 | |||||
| 71 | ASSY-PLATE DRIVE (13 | 31662-X0100 | AUTOMATIC | 4 | Yes | Yes | 31662-20300 | ||
| 71 | ASSY-PLATE DRIVE (13 | 31662-X0101 | AUTOMATIC | 4 | Yes | Yes | 31662-X0100 | ||
| 72 | PLATE-DRIVEN (130) | 31666-20300 | AUTOMATIC | 3 | |||||
| 73 | PLATE-PRESSURE (130B | 31661-H0100 | AUTOMATIC | 1 | |||||
| 73 | PLATE-PRESSURE (130B | 31661-H0120 | AUTOMATIC | 1 | Yes | Yes | 31661-H0100 | ||
| 74 | SPRING-RETURN PISTON | 31651-20300 | AUTOMATIC | 1 | |||||
| 74 | SPRING-RETURN PISTON | C1651-20300 | AUTOMATIC | 1 | Yes | Yes | 31651-20300 | ||
| 75 | RETAINER-SPRING RETU | 31652-20300 | AUTOMATIC | 1 | |||||
| 75 | RETAINER-SPRING RETU | 31652-20301 | AUTOMATIC | 1 | |||||
| 75 | RETAINER-SPRING RETU | 31652-20302 | AUTOMATIC | 1 | |||||
| 75 | RETAINER-SPRING RETU | 31652-20303 | AUTOMATIC | 1 | |||||
| 75 | RETAINER-SPRING RETU | 31652-20304 | AUTOMATIC | 1 | |||||
| 75 | RETAINER-SPRING RETU | 31652-20305 | AUTOMATIC | 1 | |||||
| 76 | RING-THRUST SPRING | 31648-20300 | AUTOMATIC | 1 | |||||
| 77 | SET-CLUTCH ONE WAY & | 31473-20301 | AUTOMATIC | 1 | |||||
| 78 | RACE-INNER ONE WAY C | 31472-20300 | AUTOMATIC | 1 | |||||
| 79 | WASHER THRUST INNER | 31478-20300 | AUTOMATIC | 1 | |||||
| 80 | PISTON-LOW & REVERSE | 31645-20300 | AUTOMATIC | 1 | |||||
| 81 | SEAL-LATHE CUT | 31646-20300 | AUTOMATIC | 1 | |||||
| 81 | SEAL-LATHE CUT | 31646-X0100 | AUTOMATIC | 1 | Yes | Yes | 31646-20300 | ||
| 82 | SEAL-"O" RING | 31647-20300 | AUTOMATIC | 1 | |||||
| 83 | RACE-BEARING OIL DIS | 31489-20300 | AUTOMATIC | 1 | |||||
| 84 | RING-SEAL (62) | 31487-20300 | AUTOMATIC | 3 | |||||
| 84 | RING-SEAL (62) | 31487-X0100 | AUTOMATIC | 3 | Yes | Yes | 31487-20300 | ||
| 85 | DISTRIBUTOR-OIL | 31486-E8000 | AUTOMATIC | 1 | |||||
| 86 | RING-SNAP (305) | 31491-20300 | AUTOMATIC | 1 | |||||
| 87 | COMP-SHAFT OUTPUT | 31480-E8000 | AUTOMATIC | 1 | |||||
| 88 | GEAR-DRIVE SPEEDOMET | 32701-66005 | AUTOMATIC | 1 | |||||
| 89 | BALL-STEEL (6.35) | 32720-36900 | AUTOMATIC | 1 | |||||
| 90 | ASSY-GOVERNOR PRIMAR | 31860-20302 | AUTOMATIC | 1 | |||||
| 91 | ASSY-GOVERNOR SECOND | 31870-H0101 | AUTOMATIC | 1 | |||||
| 92 | BOLT FIXING GOVERNOR | 08110-62010 | AUTOMATIC | 4 | |||||
| 93 | WASHER-LOCK FIXING G | 08915-13610 | AUTOMATIC | 4 | |||||
| 94 | ASSY-BAND BRAKE | 31630-F0600 | AUTOMATIC | 1 | |||||
| 94 | ASSY-BAND BRAKE | 31630-X0100 | AUTOMATIC | 1 | Yes | Yes | 31630-F0600 | ||
| 94 | ASSY-BAND BRAKE | 31630-X0102 | AUTOMATIC | 1 | Yes | Yes | 31630-X0100 | ||
| 95 | STRUT-BAND | 31624-20300 | AUTOMATIC | 1 | |||||
| 96 | SPRING-RETURN PISTON | 31621-20300 | AUTOMATIC | 1 | |||||
| 96 | SPRING-RETURN PISTON | 31621-X0100 | AUTOMATIC | 1 | Yes | Yes | 31621-20300 | ||
| 97 | PISTON-BRAKE BAND SE | 31615-77500 | AUTOMATIC | 1 | |||||
| 97 | PISTON-BRAKE BAND SE | 31615-X0600 | AUTOMATIC | 1 | Yes | Yes | 31615-77500 | ||
| 98 | SEAL-RING LATHE CUT | 31612-20300 | AUTOMATIC | 1 | |||||
| 98 | SEAL-RING LATHE CUT | 31612-X0100 | AUTOMATIC | 1 | Yes | Yes | 31612-20300 | ||
| 99 | SEAL-RING LATHE CUT | 31617-77500 | AUTOMATIC | 1 | |||||
| 100 | SEAL-"O" RING | 31628-20301 | AUTOMATIC | 1 | |||||
| 100 | SEAL-"O" RING | 31628-X0100 | AUTOMATIC | 1 | Yes | Yes | 31628-20301 | ||
| 101 | REATINER-BAND SERVO | 31611-X0600 | AUTOMATIC | 1 | Yes | Yes | 31611-77500 | ||
| 101 | RETAINER-BAND SERVO | 31611-77500 | AUTOMATIC | 1 | |||||
| 102 | STEM-PISTON BAND SER | 31618-F0600 | AUTOMATIC | 1 | |||||
| 103 | WASHER-PLAIN FIXING | 08915-44210 | AUTOMATIC | 1 | |||||
| 104 | NUT-LOCK FIXING STEM | 08911-34210 | AUTOMATIC | 1 | |||||
| 105 | BOLT-FIXING SERVO | 01111-00022 | AUTOMATIC | 3 | Yes | Yes | 08911-61610 | ||
| 105 | BOLT-FIXING SERVO | 08110-61610 | AUTOMATIC | 3 | |||||
| 106 | WASHER-LOCK FIXING S | 08916-13600 | AUTOMATIC | 3 | |||||
| 106 | WASHER-LOCK FIXING S | 08916-13610 | AUTOMATIC | 3 | Yes | Yes | 08916-13600 |
