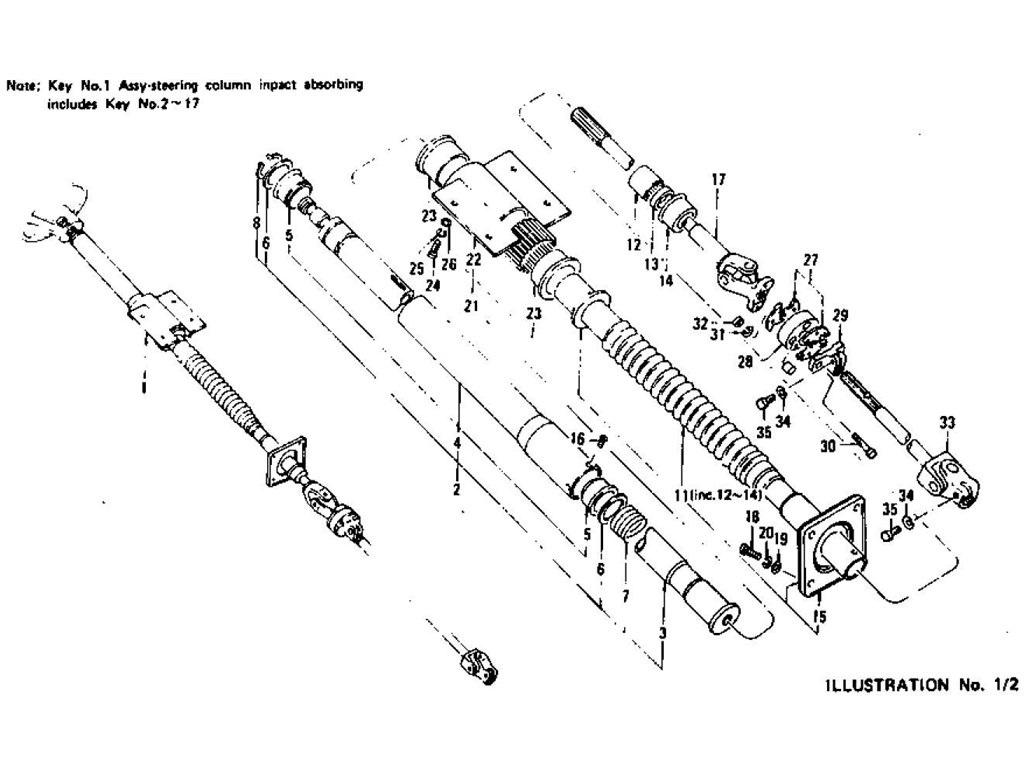

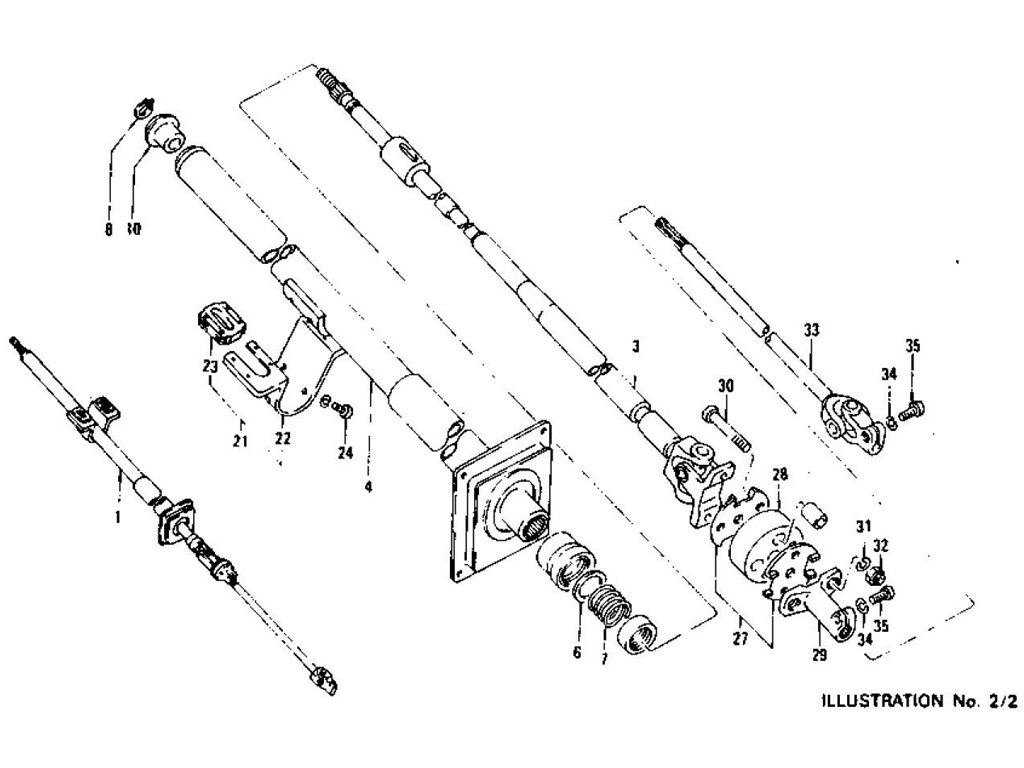

Steering Column (Collapsible Type)
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-STEERING COLUMN | 48805-E4450 | 1 | ||||||
| 1 | ASSY-STEERING COLUMN | 48805-E4455 | 7307 | 1 | Yes | Yes | 48805-E4450 | ||
| 1 | ASSY-STEERING COLUMN | 48810-N3601 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 2 | ASSY-STEERING COLUMN | 48810-E4400 | 7307 | 1 | |||||
| 3 | ASSY-SHAFT STEERING | 48820-E4200 | 7307 | 1 | |||||
| 3 | ASSY-SHAFT STEERING | 48820-N3125 | 2 SEATER 2+2 SEAT ER | 1 | Yes | Yes | 48820-N3100 | ||
| 3 | ASSY-SHAFT STEERING | 48820-N3100 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 48820-E4200 | |
| 3 | ASSY-SHAFT STEERING | 48820-N3125 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | Yes | Yes | 48820-N3100 | |
| 4 | ASSY-JACKET TUBE | 48860-N3625 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 48860-E4400 | |
| 4 | ASSY-JACKET TUBE UPP | 48860-E4400 | 7307 | 1 | |||||
| 5 | ASSY-BEARING STEERIN | 48910-23100 | 2 | ||||||
| 6 | WASHER-PLAIN COLUMN | 48931-23100 | 2 | ||||||
| 7 | SPRING-STEERING COLU | 48934-23101 | 7307 | 1 | |||||
| 7 | SPRING-STEERING COLU | 48933-N3100 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 48934-23101 | |
| 8 | RING-SNAP | 00922-11700 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 00922-12800 | |
| 8 | RING-SNAP C TYPE | 00922-12800 | 7307 | 1 | |||||
| 9 | COVER-OUST STEERING | 48892-N3101 | 2 SEATER 2+2 SEAT ER | 7310 | 1 | ||||
| 10 | COLLAR-STEERING UPPE | 48826-N3101 | 2 SEATER 2+2 SEAT ER | 7310 | 1 | ||||
| 11 | ASSY-JACKET TUBE LOW | 48870-E4400 | 7307 | 1 | |||||
| 12 | ASSY-BEARING STEERIN | 48915-79012 | 7307 | 1 | |||||
| 13 | SEAL-OIL STEERING CL | 48924-79012 | 7307 | 1 | |||||
| 14 | COVER-CLUMN BEARING | 48919-79012 | 7307 | 1 | |||||
| 15 | SHEET-RUBBER | 48954-E4200 | 7307 | 1 | |||||
| 16 | SCREW-MACHINE M4X0.7 | 48891-23100 | 7307 | 3 | |||||
| 17 | ASSY-STEERING CLUMN | 48830-E4200 | 1 | ||||||
| 17 | ASSY-STEERING CLUMN | 48830-E4205 | 1 | Yes | Yes | 48830-E4200 | |||
| 17 | ASSY-STEERING CLUMN | 48830-E4255 | 7307 | 1 | Yes | Yes | 48830-E4205 | ||
| 17 | ASSY-STEERING CLUMN | 48830-N3050 | 7307 | 1 | Yes | Yes | 48830-E4255 | ||
| 18 | BOLT-HEX M6X1.0 | 08120-61610 | 7307 | 4 | |||||
| 19 | WASHE-PLAIN | 08915-43610 | 7307 | 4 | |||||
| 20 | WASHER-LOCK | 08915-13610 | 7307 | 4 | |||||
| 21 | ASSY-CLAMP STEERING | 48960-E4200 | 7307 | 1 | |||||
| 21 | ASSY-CLAMP STEERING | 48960-N3100 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 48960-E4200 | |
| 22 | CLAMP-TUBE STEERING | 48963-E4200 | 7307 | 1 | |||||
| 22 | CLAMP-TUBE STEERING | 48963-N3100 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 48963-E4200 | |
| 23 | PACKING-STEERING | 48964-23100 | 7307 | 2 | |||||
| 23 | SERVICE FILE PLATE COATING | 48964-U0500 | 2 SEATER 2+2 SEAT ER | 7308 | 2 | ||||
| 24 | BOLT-HEX M6X12 | 08360-61291 | 2 SEATER 2+2 SEAT ER | 7308 | 4 | ||||
| 24 | BOLT-HEX M8X1.25 | 08110-82510 | 4 | ||||||
| 24 | BOLT-HEX M8X1.25 | 32055-47600 | 7307 | 4 | Yes | Yes | 08110-82510 | ||
| 25 | WASHER-LOCK | 08915-13810 | 7307 | 4 | |||||
| 26 | WASHER-PLAIN | 08915-43810 | 7307 | 4 | |||||
| 27 | PLATE-COUPLING STEER | 48075-78506 | 2 | Yes | Yes | 48075-E4100 | |||
| 27 | PLATE-COUPLING STEER | 48075-E4100 | 2 | ||||||
| 28 | COUPLING-RUBBER STEE | 48073-78500 | 1 | ||||||
| 29 | FLANGE-COUPLIGN STEE | 48074-N3101 | 7611 | 1 | 48074-N3100 | ||||
| 29 | FLANGE-COUPLING STEE | 48074-78505 | 7307 | 1 | |||||
| 29 | FLANGE-COUPLING STEE | 48074-N3100 | 2 SEATER 2+2 SEAT ER | 7308 | 7610 | 1 | No | No | 48074-78505 |
| 30 | BOLT-STEERING COUPLI | 48078-78506 | 4 | ||||||
| 31 | WASHER-SPRING | 08915-13810 | 4 | ||||||
| 32 | NUT-HEX M8X1.25 | 08911-30810 | 7307 | 4 | |||||
| 32 | NUT-HEX M8X1.25 | 08912-30810 | 2 SEATER 2+2 SEAT ER | 7308 | 4 | No | No | 08911-30810 | |
| 33 | ASSY-JOINT STEERING | 48080-E4150 | 1 | ||||||
| 33 | ASSY-JOINT STEERING | 48080-E4155 | 7307 | 1 | Yes | Yes | 48080-E4150 | ||
| 33 | ASSY-JOINT STEERING | 48080-N3151 | 7611 | 1 | 48080-N3150 | ||||
| 33 | ASSY-JOINT STEERING | 48080-N3150 | 2 SEATER 2+2 SEAT ER | 7308 | 7610 | 1 | No | No | 48080-E4155 |
| 34 | WASHER-SPRING | 08915-14010 | 2 | ||||||
| 35 | BOLT-HEX M10X1.25X28 | 08134-02810 | 2 |
