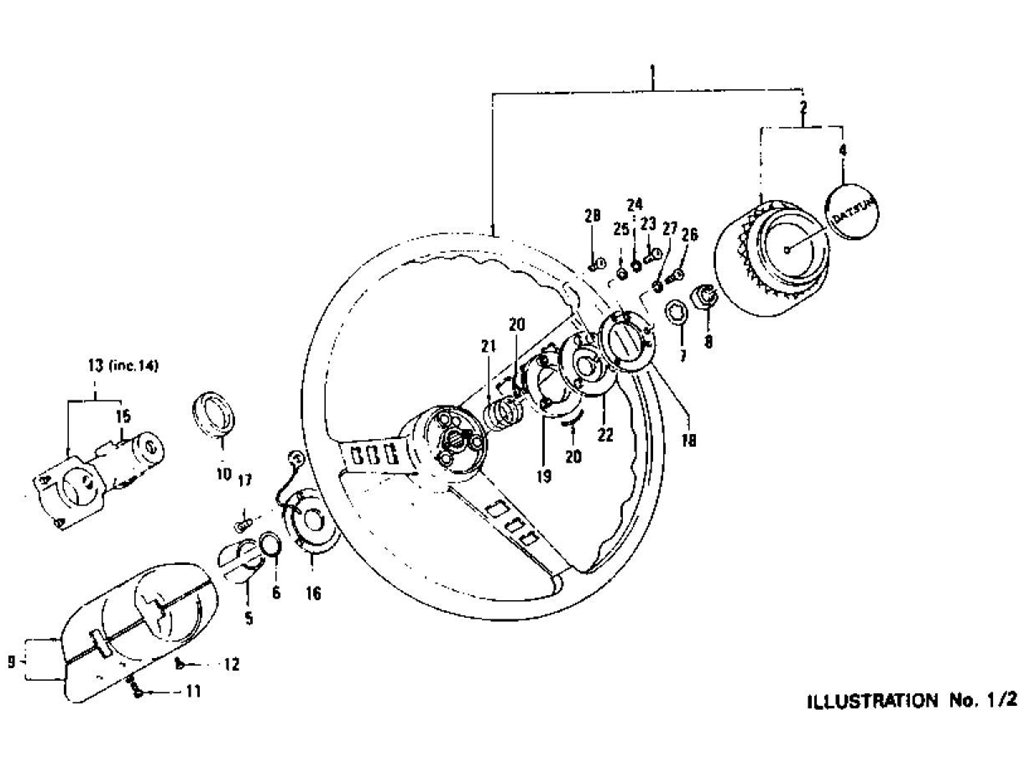

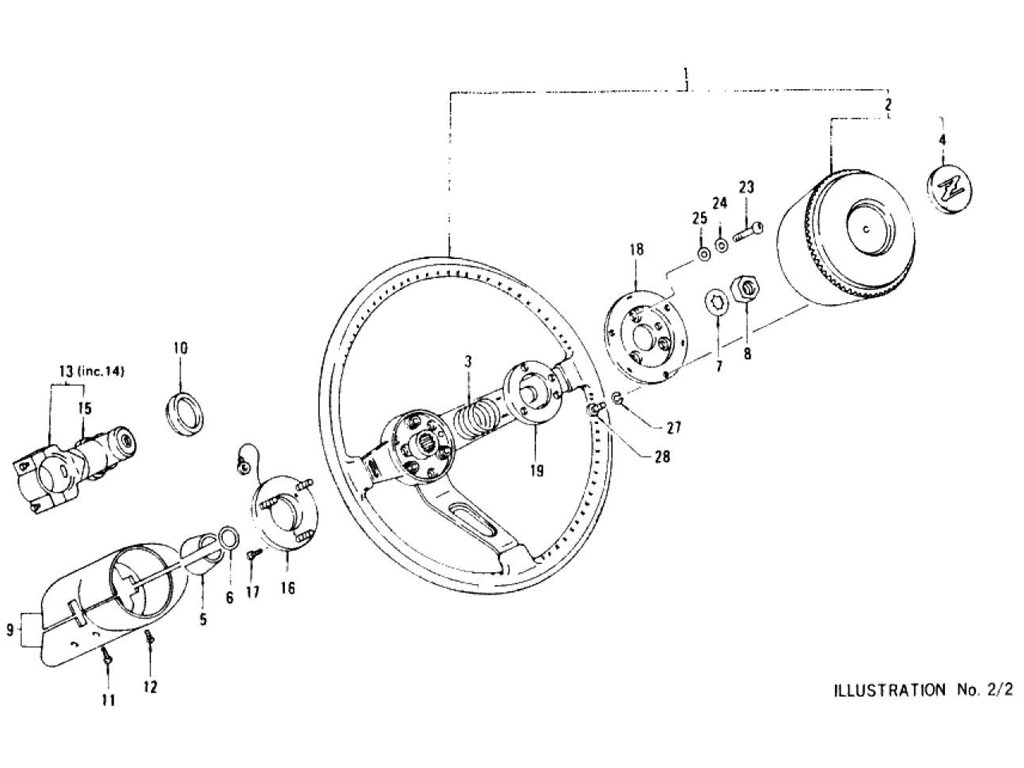

Steering Wheel
| Key | Part Name | Part Number | Model | From | To | Qty | Newer | Former | Superceded |
|---|---|---|---|---|---|---|---|---|---|
| 1 | ASSY-STEERING WHEEL | 48400-E4600 | 1 | ||||||
| 1 | ASSY-STEERING WHEEL | 48400-E8300 | 7307 | 1 | Yes | Yes | 48400-E4600 | ||
| 1 | ASSY-STEERING WHEEL | 48400-N4710 | 7608 | 1 | Yes | Yes | 48400-N3500 | ||
| 1 | ASSY-STEERING WHEEL | 48400-N3500 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 48400-E8300 |
| 2 | COMP-PAD HORN BUTTON | 48410-E4600 | 7307 | 1 | |||||
| 2 | COMP-PAD HORN BUTTON | 48410-N3500 | 7308 | 7607 | 1 | No | No | 48410-E4600 | |
| 2 | COMP-PAD HORN BUTTON | 48410-N4700 | 7608 | 1 | No | No | 48410-N3500 | ||
| 3 | SPRING-HORN BUTTON | 48424-N3500 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | ||||
| 4 | EMBLEM-PAD HORN BUTT | 48423-E4600 | 7307 | 1 | |||||
| 4 | EMBLEM-PAD HORN BUTT | 48423-N3500 | 2 SEATER 2+2 SEAT ER | 7308 | 1 | No | No | 48423-E4600 | |
| 5 | COLLAR-STEERING WHEE | 48418-30800 | 2 | ||||||
| 6 | WIRE-COLLAR FIX | 48419-30800 | 1 | ||||||
| 7 | WASHER-LOCK INTERNAL | 08916-14610 | 1 | ||||||
| 8 | NUT-HEX M6X1.5 | 08911-34610 | 1 | ||||||
| 9 | ASSY-SHELL STEERING | 48470-E4601 | 7206 | 1 | |||||
| 9 | ASSY-SHELL STEERING | 48470-N3300 | 7207 | 7307 | 1 | No | No | 48470-E4601 | |
| 9 | ASSY-SHELL STEERING | 48470-N4700 | 7608 | 1 | No | No | 48470-N3600 | ||
| 9 | ASSY-SHELL STEERING | 48470-N3600 | 2 SEATER 2+2 SEAT ER | 7308 | 7607 | 1 | No | No | 48470-N3300 |
| 10 | ESCUTCHON-STEERING L | 48479-78801 | 1 | ||||||
| 10 | ESCUTCHON-STEERING L | 48479-E4100 | 7009 | 1 | Yes | Yes | 48479-78801 | ||
| 10 | ESCUTCHON-STEERING L | 48479-E8200 | 7010 | 1 | No | No | 48479-E4100 | ||
| 11 | SCREW-MACHINE M3.5X1 | 08310-71614 | 4 | ||||||
| 11 | SCREW-TAPPING | 08513-41623 | 7308 | 4 | |||||
| 12 | SCREW-TAPPING | 08330-31619 | 1 | ||||||
| 12 | SCREW-TAPPING | 08430-31212 | 7308 | 7607 | 1 | No | No | 08330-31619 | |
| 12 | SCREW-TAPPING | 08430-51212 | 7608 | 1 | No | No | 08430-31212 | ||
| 13 | ASSY-LOCK STEERING ( | 48700-E4600 | 7009 | 1 | |||||
| 13 | ASSY-LOCK STEERING ( | 48700-E4625 | 7307 | 1 | |||||
| 13 | ASSY-LOCK STEERING ( | 48700-E4629 | 1 | Yes | Yes | 48700-E4600 | |||
| 13 | ASSY-LOCK STEERING ( | 48700-E4700 | 7010 | 1 | No | No | 48700-E4600 | ||
| 13 | ASSY-LOCK STEERING ( | 48700-N3300 | 7308 | 1 | |||||
| 14 | ASSY-WARNING SWITCH | 48745-E6600 | 1 | ||||||
| 15 | SWITCH-IGNITION | 48750-E7705 | 1 | ||||||
| 16 | COMP-RING CONTACT | 48495-E4100 | 1 | ||||||
| 17 | SCREW-MACHINE M3X10 | 08310-31012 | 3 | ||||||
| 18 | PLATE-CONTACT | 48451-14800 | 1 | ||||||
| 19 | INSULATOR-CONTACT CU | 48463-22000 | 1 | ||||||
| 20 | SPRING-TAINE LOCK | 48425-22000 | 3 | ||||||
| 21 | SPRING-HORN | 48441-22000 | 1 | ||||||
| 22 | CUP-CONTACT | 48452-22000 | 1 | ||||||
| 23 | SCREW-MACHINE | 00310-61012 | 3 | ||||||
| 24 | WASHER-PLAIN | 48441-12905 | 3 | ||||||
| 25 | WASHER-SPECIAL | 48466-12905 | 3 | ||||||
| 26 | SCREW-MACHINE (WIRE | 08310-60812 | 1 | ||||||
| 27 | WASHER-SPRING | 00915-10610 | 1 | ||||||
| 28 | SCREW-MACHINE | 08310-31012 | 2 |
